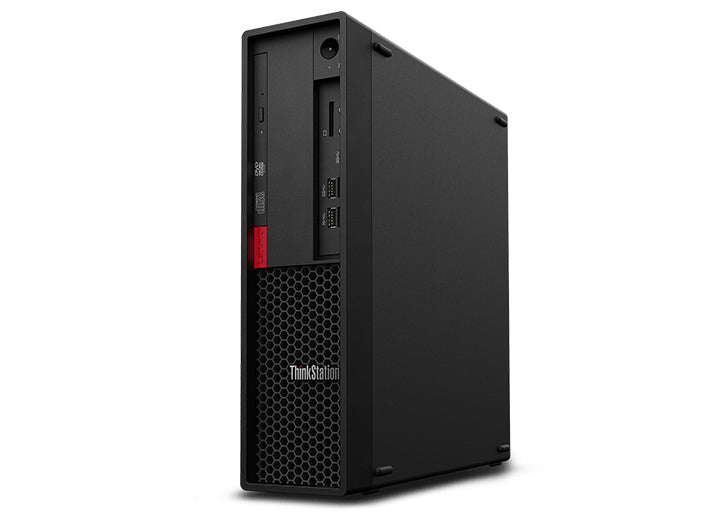

30D1000XUS - Lenovo P330,W10P,I9,16GB,512GB,3YR

IT can expect more The P330 SFF workstation delivers performance and speed to power through tasks. The latest-gen Intel® Core™ vPro or Xeon® CPUs and Optane™ memory combines with dual M.2 storage support on the motherboard for blazing speed and responsiveness. Plus, the P330 SFF is primed for security with data encryption through TPM and a door to internal components that physically locks. The cheetah of workstations Designed for acceleration, the ThinkStation P330 SFF delivers mind-blowing speeds of up to 4.2 GHz, with the latest generation of Intel® Xeon® or Intel Core™ vPro processors boasting up to 6 cores per CPU. Combined with Intel Optane™ memory and ISV certifications, this workstation is speedy. Plus, at 30% smaller than the previous generation, it fits just about anywhere you want to put it. Let your eyes run wild Supporting up to dual NVIDIA® Quadro® P1000 graphics, this workstation enables up to 6 independent displays. What’s more, with independent software vendor (ISV) certifications, you can expect apps to run seamlessly with no lag time—your biggest challenge may just be which monitor to watch. ISV certification from all the major vendors, including Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®. Performance efficiency made simple With the Lenovo Performance Tuner, it’s a cinch to get the most out of your ThinkStation P330 SFF. Simply download the free software, and choose a focus area: Processor Affinity (which lets you designate an app to run on specific cores), Power Management, Resource Monitoring and Tuning, Graphics Management, and BIOS Management. There’s a tutorial to help get you started and the interface is highly intuitive. Lenovo ThinkStation P330 SFF workstation showing Windows 10 Pro on the monitor, and positioned with keyboard and mouse. What are you waiting for? The ThinkStation P330 SFF includes Intel® Optane™ memory, for a faster, smoother, and more responsive PC experience. Working in tandem with your hard drive, it can recognize the way you work and create. As a result, everything’s accelerated from everyday computing and opening media-rich files to loading high-performance datasets and professional ISV applications. We’ll come to you Should your ThinkStation P330 SFF ever require maintenance, you can rest assured with the standard 3-year warranty with on-site support.



Specification:



Processor
Processor generation	9th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	3 GHz
Processor model	i7-9700
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.7 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	8
Processor cores	8
PCI Express slots version	3.0
Processor family	Intel® Core™ i7
Memory
Non-ECC	Yes
ECC	No
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Storage
Storage media	HDD
Number of storage drives installed	1
RAID support	Yes
Number of HDDs installed	1
Optical drive type	DVD±RW
HDD capacity	1000 GB
HDD speed	7200 RPM
HDD interface	SATA III
HDD size	3.5"
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	1000 GB
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E98
On-board graphics card family	Intel® UHD Graphics
On-board graphics card 4K support	Yes
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Graphics card Open GL support	Yes
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
Microphone in	Yes
Line-out	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
On/off button	Yes
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	SFF
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel C246
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Design
Volume	8.4 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Country of origin	United States
Performance
Embedded options available	No
Audio chip	Realtek ALC233
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel C246
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Graphics & IMC lithography	14 nm
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191792
Intel® Optane™ Memory Ready	Yes
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
80 PLUS certification	80 PLUS Platinum
Power supply	260 W
Operational conditions
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	30 - 90%
Storage relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Volume	8.4 L
Width	3.64" (92.5 mm)
Depth	12" (305.6 mm)
Height	13.5" (343.5 mm)
Weight	13.2 lbs (6 kg)
Packaging content
Windows keys	Yes
Mouse included	Yes
Display included	No
Keyboard included	Yes
Features
Country of origin	United States
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Optical drives quantity	1
Windows keys	Yes
Processor manufacturer	Intel
Country of origin	United States
