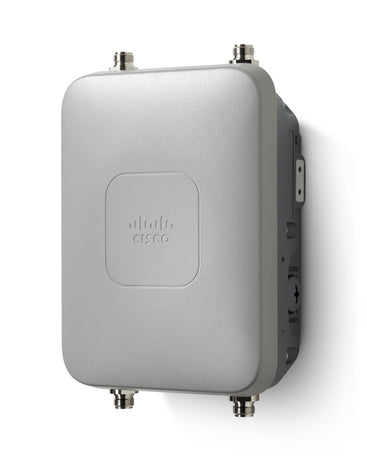

AIR-CAP1532E-A-K9 - Cisco 802.11N LOW-PROFILE OUTDOOR AP, EXTERNAL

Sleek, Innovative, Flexible, Proven As carrier-grade Wi-Fi becomes a critical small-cell element in next-generation mobile networks, operators are requesting new access point designs that can pack a punch in a small form factor. The Cisco Aironet 1530 Series Outdoor Access Points incorporate a low-profile design that is aesthetically pleasing, yet they can withstand the most rugged outdoor conditions. Cisco brings engineering innovation to the platform with unique Cisco Flexible Antenna Port technology that allows the same antenna ports to be used either for dual-band antennas to reduce the antenna footprint or for single-band antennas to optimize radio coverage. This flexibility allows antenna changes to be made on the fly, and saves on sparing costs. And the Cisco Aironet 1530 Series brings all the same robust Wi-Fi features that operators have come to expect from Cisco, including radio resource management, BandSelect to automatically take advantage of the 5‑GHz band, and VideoStream for high-quality video performance over Wi-Fi. Only Cisco delivers all of these features in a hardened outdoor access point that is ideal for any urban setting. Compact, Place-Anywhere Design Enterprise customers are also looking to expand their wireless coverage and provide seamless network access from indoor to outdoor areas. The Cisco Aironet 1530 Series Outdoor Access Points are small enough and light enough to be unobtrusively mounted on street light poles or building facades. The integrated antenna version is just 9 x 7 x 4 inches (23 x 17 x 10 cm) and weighs 5 pounds (2.3 kg). A solar shield/cover option is also available, and can be painted to match its surroundings to allow the access point to be even less noticeable. Innovative, Integrated, and External Antenna Options The Cisco Aironet 1530I Outdoor Access Point includes a dual-band, integrated antenna radome. This antenna has three omnidirectional antenna elements with antenna gains of 3 dBi (2.4 GHz) and 5 dBi (5 GHz). The innovatively designed Cisco Aironet 1530E Outdoor Access Point is designed with antenna Cisco Flexible Antenna Port technology, which can support either dual-band or single-band antennas on the same platform and is configurable via software. When configured for dual-band ports, the Aironet 1530E uses the bottom two antenna ports to connect to dual-band omnidirectional or directional antennas. Alternatively, and for additional radio coverage flexibility, the Aironet 1530E can be software-configured, enabling two separate 2.4-GHz and two 5-GHz antenna ports. This flexibility allows customers to use high-gain directional antennas for backhaul on 5 GHz while deploying omnidirectional antennas for access on 2.4 GHz. Flexible, High-Performance The Cisco Aironet 1530 Series Outdoor Access Points offer a flexible, highly secure, and scalable platform that can be deployed as part of the Cisco Unified Wireless Network or as a standalone, autonomous solution. The Cisco Aironet 1530 Series provides high-performance device access through improved radio sensitivity and range with 802.11a/b/g/n multiple-input multiple-output (MIMO) technology, with two or three spatial streams and up to 300‑Mbps data rates. The Aironet 1530 Series can be deployed in the following configurations: - Access point: Either in controller-based or standalone operation, provides Wi-Fi connectivity concurrently to clients on both 2.4-GHz and 5-GHz radios. - Mesh network: as dedicated backhaul or universal access, the 5-GHz radio is used for wireless network connections to adjacent mesh nodes. - Bridging: Provides point-to-point, high-capacity data links, as well as point-to-multipoint bridging for campuses. - Workgroup bridge: Enables LAN mobility, such as on a vehicle. - Serial backhaul: Extends linear mesh with two colocated Aironet 1530 Series access points connected via the LAN port. Centrally Managed Network Central management and troubleshooting of the Cisco outdoor wireless access points help prevent costly maintenance service calls to outdoor locations. Cisco Prime Infrastructure works in conjunction with the Cisco Aironet access points and Cisco wireless LAN controllers to configure and manage the wireless networks. With Cisco Prime Infrastructure, network administrators have a single solution for RF prediction, policy provisioning, network optimization, troubleshooting, security monitoring, and wireless LAN system management. Wireless network security is also a part of a unified wired and wireless solution. Cisco wireless network security offers the highest level of network security, helping ensure that data remains private and secure and that the network is protected from unauthorized access.



Specification:



Data transmission
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi data rate (max)	300 Mbit/s
Reset button	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.56, 5.68 - 5.72, 5.745 - 5.825 GHz
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Ethernet LAN data rates	10,100,1000 Mbit/s
Channels quantity	31 channels
Certification	ANSI/IEEE C62.41 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 EN60950 FCC 15.247, 15.407 FCC OET-65C RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 ARIB-STD T71 EN 300 328 EN 301 893 ICES-003 EN 301 489-1, -17 UL 60950 CAN/CSA-C22.2 No. 60950, 2nd Ed EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2
Maximum data transfer rate	1000 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)	Yes
Wireless LAN features
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.56, 5.68 - 5.72, 5.745 - 5.825 GHz
Channels quantity	31 channels
Network
Internal	No
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Certificates
Certification	ANSI/IEEE C62.41 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 EN60950 FCC 15.247, 15.407 FCC OET-65C RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 ARIB-STD T71 EN 300 328 EN 301 893 ICES-003 EN 301 489-1, -17 UL 60950 CAN/CSA-C22.2 No. 60950, 2nd Ed EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2
Features
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.56, 5.68 - 5.72, 5.745 - 5.825 GHz
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Ethernet LAN data rates	10,100,1000 Mbit/s
Channels quantity	31 channels
Maximum data transfer rate	1000 Mbit/s
Security
Security algorithms	802.1x RADIUS,AES,EAP,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,LEAP,TKIP,WPA
VPN support	IPsec, L2TP
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power consumption (max)	25 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
Reset button	Yes
Internal	No
LED indicators	Yes
Certification	ANSI/IEEE C62.41 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 EN60950 FCC 15.247, 15.407 FCC OET-65C RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 ARIB-STD T71 EN 300 328 EN 301 893 ICES-003 EN 301 489-1, -17 UL 60950 CAN/CSA-C22.2 No. 60950, 2nd Ed EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2
Antenna
Antenna type	External
Antenna features	Detachable antenna
Technical details
Reset button	Yes
Operational conditions
Operating relative humidity (H-H)	0 - 100%
Operating temperature (T-T)	-30 - 65 °C
Storage temperature (T-T)	-50 - 85 °C
Operating altitude	0 - 120000" (0 - 3048 m)
Indication
LED indicators	Yes
Weight & dimensions
Width	6.69" (170 mm)
Depth	10.2" (260 mm)
Weight	5.51 lbs (2.5 kg)
Height	3.94" (100 mm)
