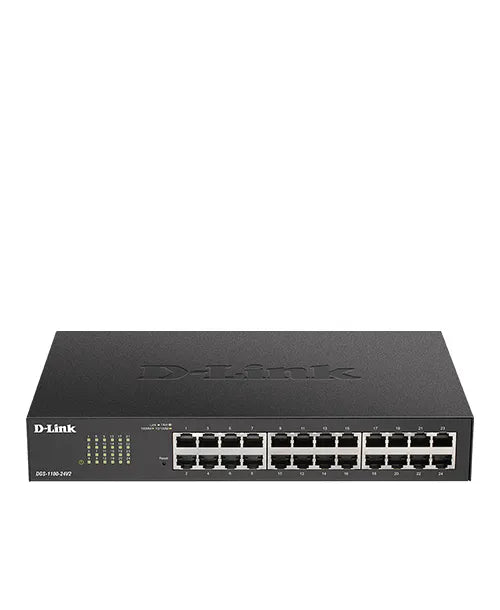

DGS-1100-24V2 - D-Link DGS-1100 SERIES SMART MANAGED 24-PO
DGS-1100-24V2 - D-Link DGS-1100 SERIES SMART MANAGED 24-PO
SKU:DGS-1100-24V2
Regular price
$294.50 USD
Regular price
Sale price
$294.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Powerful Switching for your Business The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier. Easy to Use & Easy to Install D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment. VLANs: Stronger Security & Better Traffic Management Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP. For Voice If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters. For Surveillance If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas. Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
Specification:
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Performance | |
| Packet buffer memory | 0.512 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 205249 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Form factor | 1U |
| Product colour | Black, Gray |
| Stackable | Yes |
| Mean time between failures (MTBF) | 205249 h |
| Rack mounting | Yes |
| Shipping (inner) case width | 13.6" (34.6 cm) |
| Shipping (inner) case net weight | 22.9 lbs (10.4 kg) |
| Shipping (inner) case length | 15" (38.2 cm) |
| Shipping (inner) case height | 12.5" (31.7 cm) |
| Products per shipping (inner) case | 5 pc(s) |
| Products per pallet (sea) | 270 pc(s) |
| Products per pallet (air) | 180 pc(s) |
| Pallet gross width | 47.2" (120 cm) |
| Pallet gross length | 43.3" (110 cm) |
| Pallet height (sea) | 80.3" (2.04 m) |
| Pallet height (air) | 55.2" (140.3 cm) |
| Pallet gross weight (sea) | 1379.9 lbs (625.9 kg) |
| Pallet gross weight (air) | 938.1 lbs (425.5 kg) |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Shipping (inner) case gross weight | 24.5 lbs (11.1 kg) |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.512 MB |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Security | |
| Loop protection | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 0.512 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black, Gray |
| Stackable | Yes |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 373.96 BTU/h |
| Weight & dimensions | |
| Width | 11" (280 mm) |
| Depth | 4.96" (126 mm) |
| Height | 1.73" (44 mm) |
| Weight | 34.6 oz (980 g) |
| Packaging data | |
| Package width | 11.3" (286 mm) |
| Package depth | 12.8" (325 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 4.59 lbs (2.08 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
