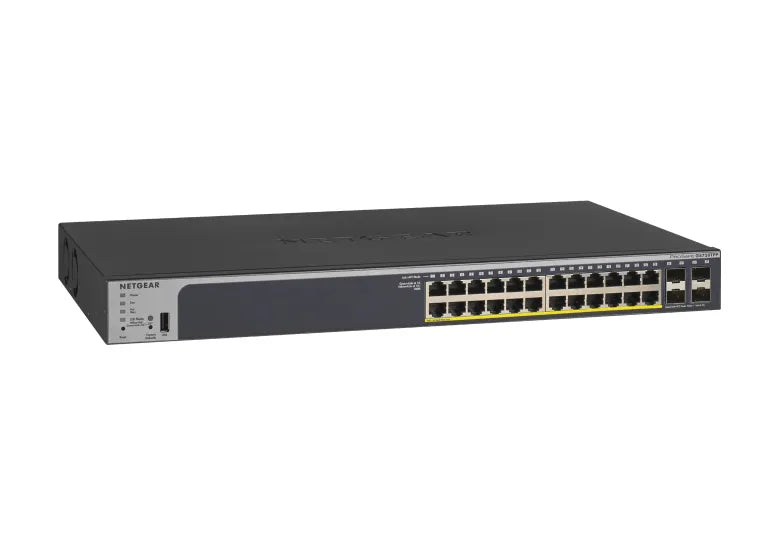

GS728TPP-200NAS - Netgear 24-PORT GIGABIT POE SMART MANAGED PRO SWITCH WITH 4 SFP PORTS

All ports PoE+ with up to 760W PoE budget €“ Select your new network engine! As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business€™ needs, whether in the hospitality, catering, education or retail domains. The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	RFC 1213, RFC 1493 Bridge, RFC 1643 Ethernet Interface
Switch layer	L3
Ports & interfaces
Copper ethernet cabling technology	10BASE-T,100BASE-TX,100BASE-T,1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T,100BASE-TX,100BASE-T,1000BASE-T
Networking standards	IEEE 802.1D,IEEE 802.1as,IEEE 802.1s,IEEE 802.1v,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	256
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Number of multicast groups filtered	512
Number of VLANs	256
Number of static routes	32
MAC address table	16000 entries
Switching capacity	100 Gbit/s
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Technical details
Product colour	Black
Noise level	37.2 dB
Mean time between failures (MTBF)	390728 h
Firmware upgradeable	Yes
Rack mounting	Yes
Optical fiber
Fiber ethernet cabling technology	1000BASE€‘LX,1000BASE€‘SX
Security
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS,HTTPS,SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Number of multicast groups filtered	512
Multicast support	Yes
Protocols
Management protocols	SNMP v1/v2
Supported network protocols	IP
Certificates
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Design
Product colour	Black
LED indicators	Activity, Link, Power
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Rack mounting	Yes
Performance
Noise level	37.2 dB
Mean time between failures (MTBF)	390728 h
Firmware upgradeable	Yes
Indication
LED indicators	Activity, Link, Power
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	41.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width	17.3" (440 mm)
Depth	10.1" (257 mm)
Height	1.69" (43 mm)
Weight	7.63 lbs (3.46 kg)
Packaging data
Manual	Yes
Cables included	AC
Packaging content
Manual	Yes
Cables included	AC
