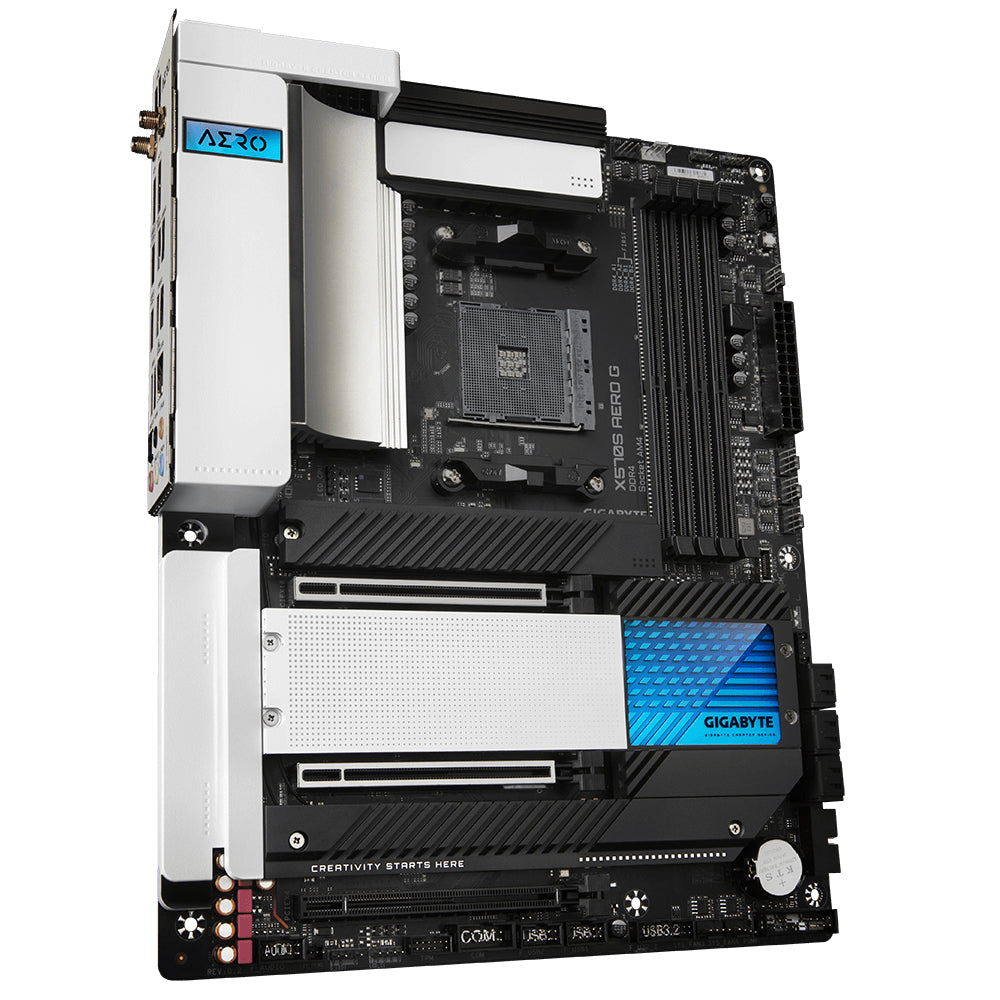

X570S AERO G - Gigabyte AMD X570 MOTHERBOARD GIGABYTE

Creativity Starts Here AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. Go Further Without More Cables GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro. All at One Cable that Does It All. Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging the same time. One USB Type-C® cable connected, turn your workspace into neat and tidy. Add Graphic Power to You Ever wondered if you can have a high-end graphic performance on your pen display? The DisplayPort™_In design provides the external graphic performance and superior GPU ability for your pen display to use it. It brings your creation with incredible realism and performance. DisplayPort™Alternate Mode with USB Power Delivery VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for video signal, and 60W Power Delivery design for your devices charging. It’s a perfectly tailored connectivity for creators and professional artists. Intel® 2.5GbE Connectivity High-Bandwidth and Low-Latency access. The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads. Wi-Fi 6 - Ideal for All Your Online Activities Onboard Wi-Fi 6 technology supports 802.11ax with Bluetooth module technology, enables gigabit wireless performance, fewer dropped connections, and reduces congestion in heavy bandwidth usage scenarios. Moreover, providing better Wi-Fi signal strength of the antenna design compared to a traditional antenna. SuperSpeed USB 20Gbps No Hassle Connection. To feature the USB 3.2 Gen 2x2 connectivity design, which is double performance than the current USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. You can enjoy the ultimate connection flexibility to access and store massive amounts of data rapidly. Make Your Expandability Flexible. Multi-graphics configurations offer better graphics performance for applications that demand the highest frame rates without compromising on resolution. Full PCIe® 4.0 Design For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard support variety of PCIe® 4.0 devices, including graphics card and M.2 SSD. PCIe® Bandwidth Up to 31.58 GB/s from new PCIe® 4.0 x16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card and the video capture card. SSD Read Speed Content creators workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe® 4.0 SSD. Single 32GB Support Bring your tasks without lag. A single memory slot of the X570 motherboard can support up to 32GB. With populated 2 DIMMs per channel on GIGABYTE X570 motherboards, the maximum memory capacity support is 128GB. You can experience faster performance and instant access without any lag. Quad PCIe® M.2 Fast Speed. More Space. To equip with four PCIe® M.2 sockets, delivering superior bandwidth and upgrading your storage capacity to accelerate creative workflow. M.2 PCIe® SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid-state drives. NVMe PCIe® x4 M.2 GIGABYTE M.2 solution provides NVMe SSD RAID support for the considerably high storage performance. To feature full-speed PCIe® 4.0 M.2 sockets as the best configuration for creators who demand high capacity and fast storage ability. Creates Exclusive Storage Performance The exclusive four PCIe® 4.0 x4 M.2 sockets design that offers you to handle the most data-consuming tasks without extra configuration. Thermal Technology An effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, and unexpected shutdown. GIGABYTE advanced thermal solution adopts the large curved aluminum heat sink to improve heat dissipation and ensures stability during creative work. M.2 Thermal Guard III The new GIGABYTE M.2 Thermal Guard III design elevates the height of the M.2 heatsink to reduce the temperature for high transfer speeds of M.2 SSD and dissipate heat before it becomes an issue. SMART FAN 6 Numerous hybrid fan headers and temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 6. Creators are allowed to set the trigger point to activate the fan and its corresponding speed. The fan completely stops when performing light tasks to avoid noise. DTS:X® Ultra Immersive sounds to go. DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.



Specification:



Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	6
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
RAID levels	0, 1, 10
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 5, AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9, AMD Ryzen 9 5th Gen
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100,5200,5300,5400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	4
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	5
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC1220-VB
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 slots	3
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton Internet Security, Realtek 8125 Gaming LAN Bandwidth Control Utility
Weight & dimensions
Height	3.15" (80 mm)
Weight	2.2 lbs (1 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Packaging content
Cables included	SATA
Bundled software	Norton Internet Security, Realtek 8125 Gaming LAN Bandwidth Control Utility
Other features
Height	3.15" (80 mm)
Weight	2.2 lbs (1 kg)
