Description

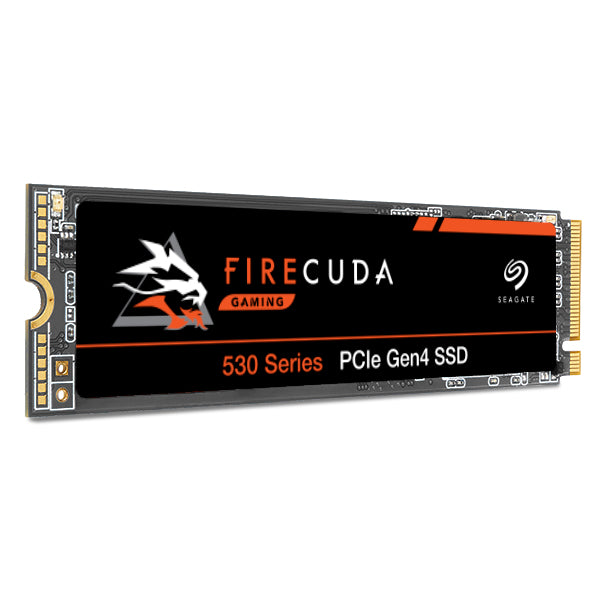

Performance nothing short of exhilarating, the FireCuda® 530 redefines speed — up to 7,300 MB/s catalyses PCIe® Gen4 power. With transfer rates 2x faster than PCIe Gen3 and 12x faster than SATA SSDs, this SSD is built for sustained abuse and accelerated gaming. Speed Reigns — The Fastest FireCuda Ever FireCuda 530 dominates the SSD lineup, delivering: - Blistering transfer speeds of up to 7,300 MB/s. - Absolute power to make content creations apps run faster and smoother. - Lightning-fast video rendering and exporting. - Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeat. Absolute Performance Up to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed. Cool Speed Ahead NVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time. Form and Function Low-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties. Endurance Unleashed Designed to perform under heavy use and tough enough to go the distance with: - 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years. - 1.8 Million Hours Mean Time Between Failures for trusted reliability. - Up to 5,100 TB Total Terabytes Written — durability delivered. Latest Tech Push your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.
Specification:
Hard drive | |
---|---|
PCI Express interface data lanes | x4 |
SSD capacity | 2000 GB |
Memory type | 3D TLC |
Performance | |
Windows operating systems supported | Windows 10 |
Linux operating systems supported | Yes |
Interface | PCI Express 4.0 |
Component for | PC |
NVMe | Yes |
NVMe version | 1.4 |
TBW rating | 2550 |
PCI Express interface data lanes | x4 |
SSD capacity | 2000 GB |
S.M.A.R.T. support | Yes |
Read speed | 7300 MB/s |
TRIM support | Yes |
Write speed | 6900 MB/s |
Memory type | 3D TLC |
Random write (4KB) | 1000000 IOPS |
Random read (4KB) | 1000000 IOPS |
Mean time between failures (MTBF) | 1800000 h |
Data transmission | |
Read speed | 7300 MB/s |
Write speed | 6900 MB/s |
Random write (4KB) | 1000000 IOPS |
Random read (4KB) | 1000000 IOPS |
Endurance | |
Mean time between failures (MTBF) | 1800000 h |
Design | |
Component for | PC |
SSD form factor | M.2 |
System requirements | |
Windows operating systems supported | Windows 10 |
Linux operating systems supported | Yes |
Features | |
Interface | PCI Express 4.0 |
Component for | PC |
NVMe | Yes |
NVMe version | 1.4 |
TBW rating | 2550 |
PCI Express interface data lanes | x4 |
SSD capacity | 2000 GB |
Windows operating systems supported | Windows 10 |
S.M.A.R.T. support | Yes |
Read speed | 7300 MB/s |
TRIM support | Yes |
Write speed | 6900 MB/s |
Linux operating systems supported | Yes |
Memory type | 3D TLC |
Random write (4KB) | 1000000 IOPS |
Random read (4KB) | 1000000 IOPS |
Mean time between failures (MTBF) | 1800000 h |
SSD form factor | M.2 |
Harmonized System (HS) code | 84717070 |
Power | |
Power consumption (average) | 8 W |
Power consumption (idle) | 0.024 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | 40 - 85 °C |
Non-operating shock | 1500 G |
Technical details | |
Interface | PCI Express 4.0 |
S.M.A.R.T. support | Yes |
Operating temperature (T-T) | 0 - 70 °C |
TRIM support | Yes |
Storage temperature (T-T) | 40 - 85 °C |
Non-operating shock | 1500 G |
Products per pallet | 480 pc(s) |
Layers per pallet | 4 pc(s) |
Master (outer) cases per pallet | 48 pc(s) |
SSD form factor | M.2 |
Sustainability certificates | RoHS |
Doesn't contain | Halogen |
Pallet gross weight | 104.7 lbs (47.5 kg) |
Software | |
Windows operating systems supported | Windows 10 |
Linux operating systems supported | Yes |
Weight & dimensions | |
Package width | 4.29" (109 mm) |
Package depth | 0.945" (24 mm) |
Package height | 5.29" (134.2 mm) |
Package weight | 2.19 oz (62 g) |
Width | 0.953" (24.2 mm) |
Weight | 1.66 oz (47 g) |
Height | 0.409" (10.4 mm) |
Depth | 3.16" (80.2 mm) |
Packaging data | |
Package width | 4.29" (109 mm) |
Package depth | 0.945" (24 mm) |
Package height | 5.29" (134.2 mm) |
Package weight | 2.19 oz (62 g) |
Master (outer) case width | 10.9" (278 mm) |
Master (outer) case length | 6.65" (169 mm) |
Master (outer) case gross weight | 32.5 oz (920 g) |
Products per master (outer) case | 10 pc(s) |
Logistics data | |
Master (outer) case width | 10.9" (278 mm) |
Master (outer) case length | 6.65" (169 mm) |
Master (outer) case gross weight | 32.5 oz (920 g) |
Products per master (outer) case | 10 pc(s) |
Products per pallet | 480 pc(s) |
Layers per pallet | 4 pc(s) |
Master (outer) cases per pallet | 48 pc(s) |
Pallet gross width | 20" (50.8 cm) |
Pallet gross length | 48" (121.9 cm) |
Pallet gross height | 27.8" (70.6 cm) |
Other features | |
Products per pallet | 480 pc(s) |
Layers per pallet | 4 pc(s) |
Master (outer) cases per pallet | 48 pc(s) |
