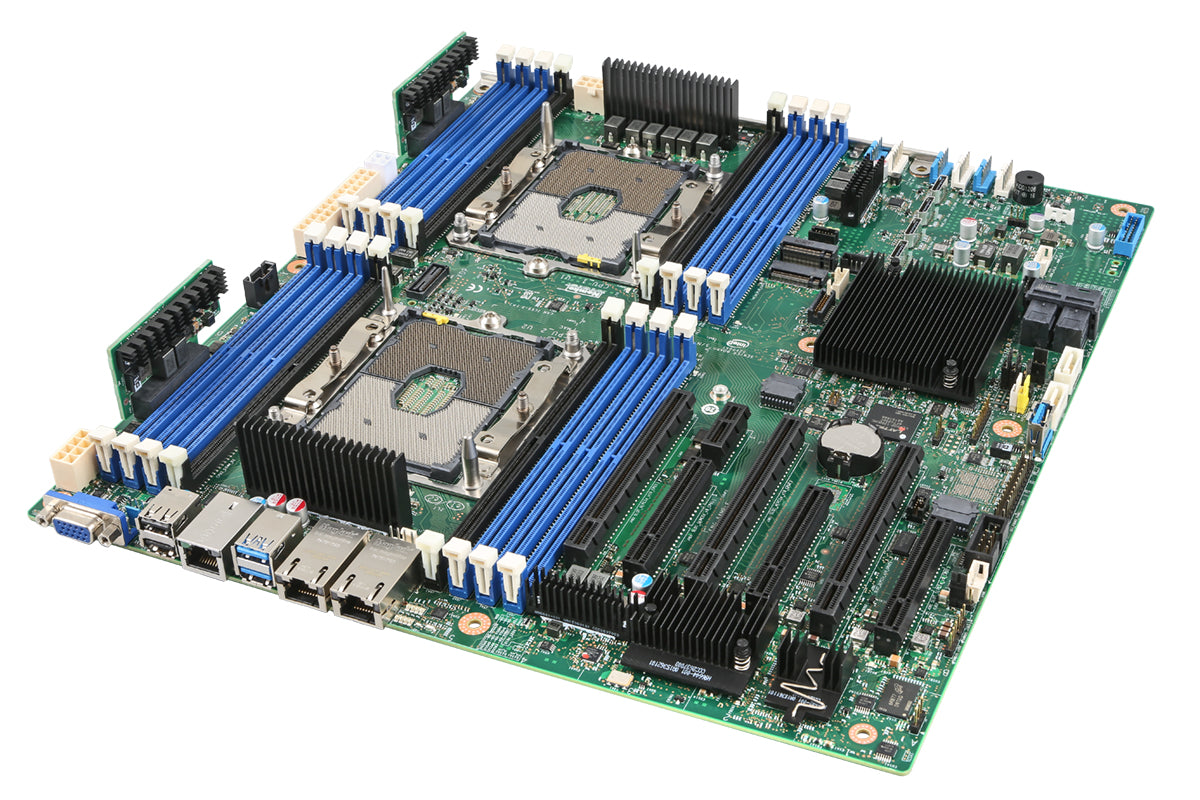

Intel S2600STQR SERVER MOTHERBOARD

Intel ® Server Board S2600STQR. Processor manufacturer: Intel, Processor socket: LGA 3647, Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2000 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Component for: Server, Motherboard form factor: SSI EEB, Motherboard chipset family: Intel. BIOS type: AMI



Specification:



Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel® C624
Parallel processing technology support	Not supported
On-board graphics card	Yes
Number of DIMM slots	24
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Embedded options available	No
CPU configuration (max)	2
Component for	Server
Graphics output	VGA
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	8
Thermal Design Power (TDP)	205 W
Product type	Server/Workstation Board
Maximum number of PCI Express lanes	96
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Integrated LAN	No
ECC supported by processor	Yes
Total number of SATA connectors	12
Intel Rapid Storage Technology enterprise	Yes
Status	Launched
Launch date	Q2'19
Supported RAID configuration	SW RAID 0/1/10 (5 optional)
Expected discontinuance date	2023
Form factor	Custom 16.7" x 17"
Last receipt attributes date	Sunday, December 22, 2019
Last order date	2019-08-03 05:00:37
End of life date announce	Monday, April 22, 2019
Additional information URL	https://www.intel.com/content/www/us/en/products/servers/server-boards/server-board-s2600wf.html
Riser slot 1 number of lanes	24
Riser slot 2 number of lanes	24
Riser slot 3 number of lanes	12
Performance
Motherboard chipset family	Intel
Motherboard chipset	Intel® C624
RAID levels	0, 1, 5, 10
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Component for	Server
Processor
Processor manufacturer	Intel
Thermal Design Power (TDP)	205 W
Maximum number of PCI Express lanes	96
ECC supported by processor	Yes
Compatible processor series	Intel® Xeon®
Maximum number of SMP processors	2
Processor socket	LGA 3647
Product series	Intel® Server Board S2600WF Family
Product codename	Wolf Pass
Number of QPI links	2
Memory
Number of memory slots	24
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Hexa-channel
Memory voltage	1.2 V
ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933 MHz
Maximum internal memory	7500 GB
Supported memory clock speed (max)	2933 MHz
Storage controllers
Supported storage drive interfaces	SATA
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	Yes
Internal I/O
Total number of SATA connectors	12
Supported storage drive interfaces	SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	12
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1
Serial ports quantity	2
Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel® C624
Compatible operating systems	Windows Server 2016*|VMware*|Ubuntu*
Component for	Server
Harmonized System (HS) code	84733020
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Rack-Friendly board	Yes
Expansion slots
PCI Express x8 (Gen 3.x) slots	6
PCI Express x16 (Gen 3.x) slots	3
PCI Express slots version	3.0
PCI Express CEM revision	3.0
PCI Express OCuLink connectors (NVMe support)	4
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Rapid Storage Technology enterprise	Yes
Intel® Optane™ Memory Ready	No
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Internal I/O Expansion Module x8 Gen 3	1
Intel® Optane™ DC Persistent Memory Supported	Yes
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Integrated systems available	Yes
Intel® Optane™ DC Persistent Memory technology	Yes
Design
Product series	Intel® Server Board S2600WF Family
Product codename	Wolf Pass
Weight & dimensions
Width	16.7" (424.8 mm)
Depth	17" (431.8 mm)
Other features
Thermal Design Power (TDP)	205 W
PCI Express x8 (Gen 3.x) slots	6
Number of DIMM slots	24
Embedded options available	No
CPU configuration (max)	2
Compatible operating systems	Windows Server 2016*|VMware*|Ubuntu*
Graphics output	VGA
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
PCI Express CEM revision	3.0
Chassis type	Rack
Intel Node Manager	Yes
