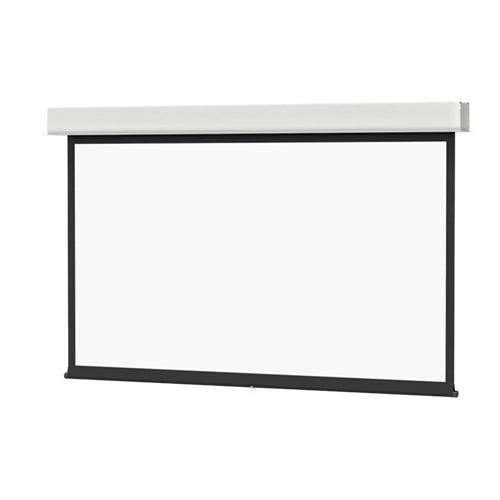

70285 - Da-Lite ADVANTAGE MANL W/CSR 109D HCMW

Advantage Manual With CSR (Ceiling Recessed) Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. The Advantage® Manual screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage. Screens with CSR ensure a quiet and controlled return to the case, and must be fully extended during use. - UL Plenum rated case - Quiet, controlled screen return to case - Includes pull cord - Standard black backing retains projected brightness - White powder-coated case for a clean aesthetic



Specification:



Performance
Native aspect ratio	16:10
Viewable screen height (H)	72.4" (184 cm)
Viewable screen width (W)	116.1" (2.95 m)
Diagonal (metric)	137" (348 cm)
Diagonal	137"
Viewing angle	120°
Screen gain	2.5
Drive type	Manual
Design
Product colour	White
Case colour	White
Mounting type	Ceiling
Weight & dimensions
Case L1	125.6" (3.19 m)
