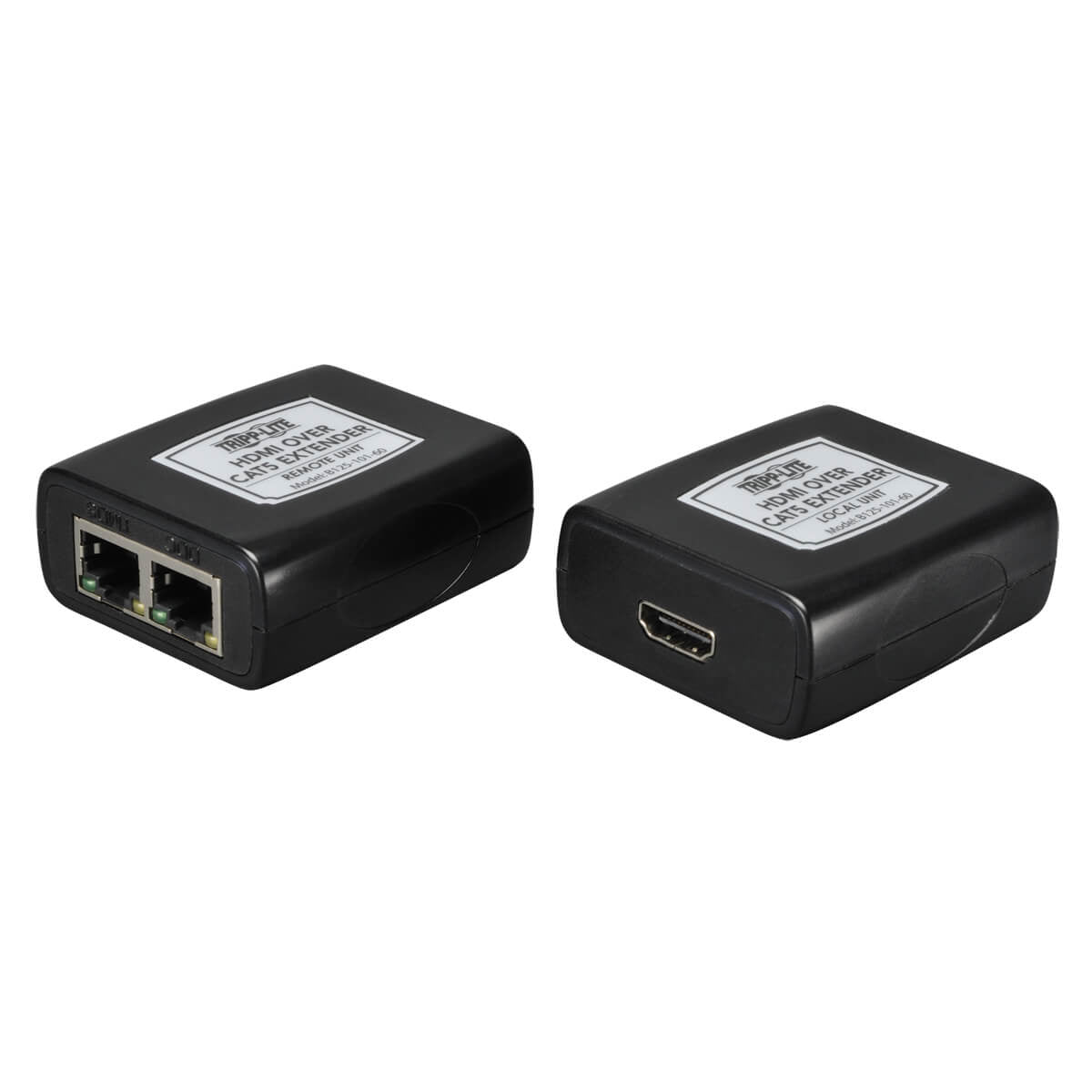

Tripp Lite's HDMI Over Dual Cat5 Extender Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables. When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 45.72 m (150-ft.) from the source. When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 38.1 m (125-ft.) When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 30.5 m (100-ft.) from the source. When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 22.86 m (75-ft.) Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp Lite HDMI cables to the HDMI source and the display. The B125-101-60 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported. - Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 45.72 m (150-ft.) using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series) - Extends a 3D signal up to 38.1 m (125-ft.) using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series) - Supports 24-bit True Color (8-bits per channel) - Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio - Supports HDCP, EDID and DDC *When using Cat5 cable, the maximum extension distance is reduced by 15.24 m (50-ft.) - Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 45.72 m (150-ft.) using 24Awg, Solid Wire Cat6 cabling (Tripp Lite N202-Series) - Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 30.5 m (100-ft.) using 24Awg, Solid Wire Cat5 cabling - Extends a 3D signal up to 38.1 m (125-ft.) using 24Awg, Solid Wire Cat6 cabling, or up to 22.86 m (75-ft.) using 24Awg, Solid Wire Cat5 cabling - Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio - Supports HDCP, EDID and DDC - Supports 24-bit True Color (8-bits per channel) - Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor - Equalization control dial for skew compensation Supports Lip-Sync Pass Through, and CEC pass through - Green LED indicate power being received - Orange LED indicates signal connection
Specification:
| Features |
|---|
| Audio output channels |
7.1 channels |
| Plug and Play |
Yes |
| HDCP & EDID bypass |
Yes |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1920 x 1080 pixels |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
1771.7" (45 m) |
| Supported video modes |
480i, 480p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| LED indicators |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| 3.5 mm (1/8-inch) out |
Yes |
| 3.5 mm (1/8-inch) in |
Yes |
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| RJ-45 input ports |
2 |
| RJ-45 output ports |
2 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| Packaging data |
|---|
| Package depth |
5.59" (142 mm) |
| Package width |
7.87" (199.9 mm) |
| Package height |
1.73" (43.9 mm) |
| Package weight |
11.3 oz (320 g) |
| Packaging content |
|---|
| Manual |
Yes |
| Technical details |
|---|
| Country of origin |
Taiwan |
| Sustainability certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
17.9" (455.9 mm) |
| Master (outer) case length |
6.02" (152.9 mm) |
| Master (outer) case height |
8.39" (213.1 mm) |
| Master (outer) case gross weight |
8.16 lbs (3.7 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332190472 |
