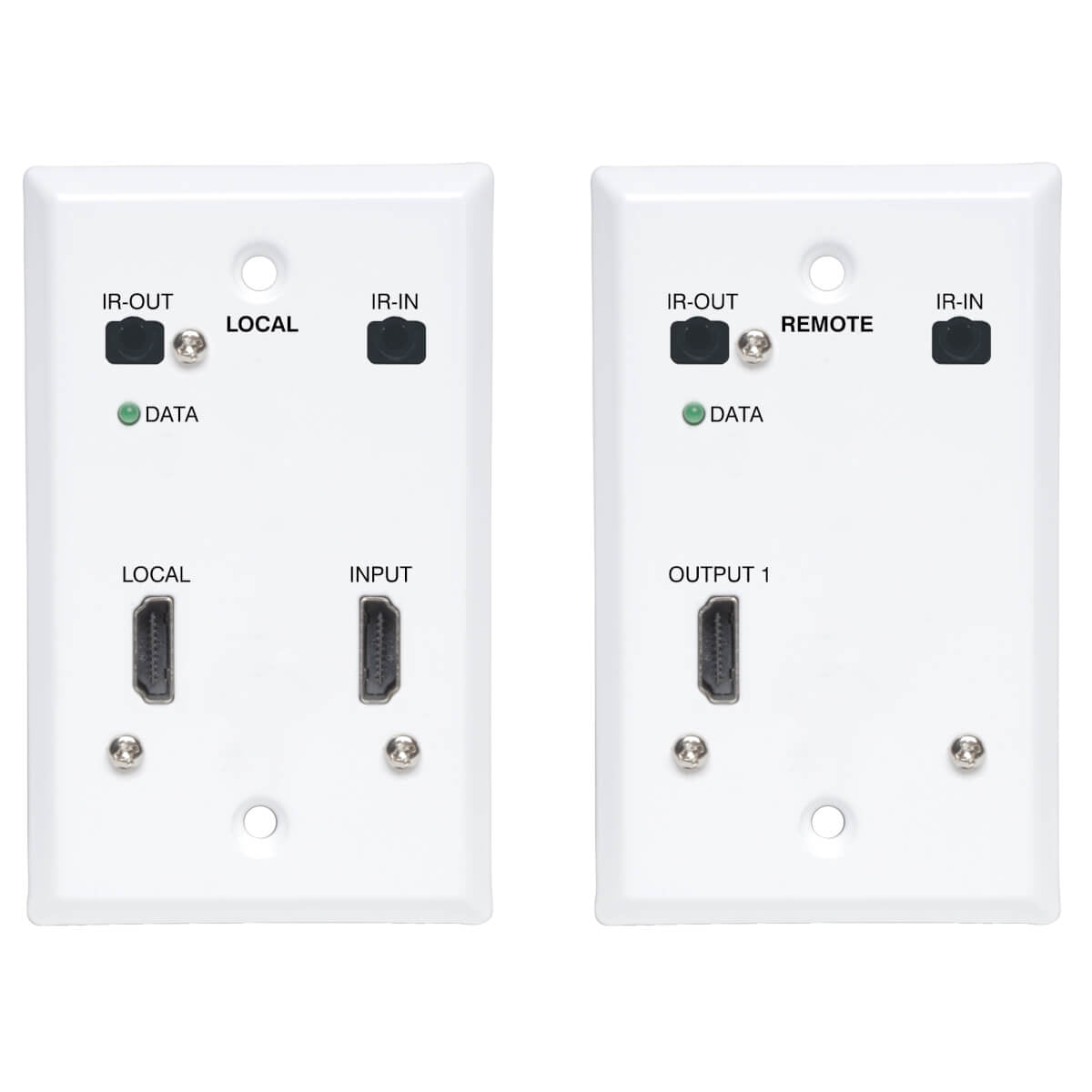

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls This complete wall-plate-style transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. Both the transmitter and receiver have a single-gang metal wall plate design with a metal back cover and blend perfectly into the room décor.
Extends a 4K A/V Transmission up to 230 ft....or More The B127A-1A1-FHFH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. Bi-directional IR remote control lets you operate the source from the display end of the installation. By adding a Tripp Lite B127A-010-H HDMI repeater (sold separately) to the application, you can extend the signal up to 400 feet.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color The B127A-1A1-FHFH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization automatically fine-tunes the image quality at the remote display.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks After you connect the included external power supply to either the transmitter or receiver, Power over Cable (PoC) technology powers the opposite unit over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place one unit where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite’s P568- or P569-Series). Then, connect the receiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series).
TAA-Compliant for GSA Schedule Purchases The B127A-1A1-FHFH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specification:
| Features |
|---|
| Material |
Plastic |
| HDCP |
Yes |
| Colour depth |
36 bit |
| Audio output channels |
7.1 channels |
| Consumer Electronics Control (CEC) support |
No |
| 3D |
Yes |
| Type |
AV receiver |
| Maximum resolution |
3840 x 2160 pixels |
| Cable types supported |
Cat5, Cat5e, Cat6, HDMI |
| Maximum transfer distance |
2759.8" (70.1 m) |
| Audio system |
Multichannel |
| LED indicators |
Yes |
| Cable length |
12" (0.305 m) |
| Product colour |
Black, Gray |
| Extended display identification data (EDID) |
Yes |
| HDCP version |
1.4/2.2 |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
2.0 |
| Connectivity technology |
Wired |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 85% |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging data |
|---|
| Package depth |
5.59" (142 mm) |
| Package width |
7.87" (199.9 mm) |
| Package height |
1.73" (43.9 mm) |
| Package weight |
5.64 oz (160 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Technical details |
|---|
| Country of origin |
Taiwan |
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE, REACH, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
17.9" (455.9 mm) |
| Master (outer) case length |
8.39" (213.1 mm) |
| Master (outer) case height |
6.02" (152.9 mm) |
| Master (outer) case gross weight |
4.08 lbs (1.85 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332263329 |
