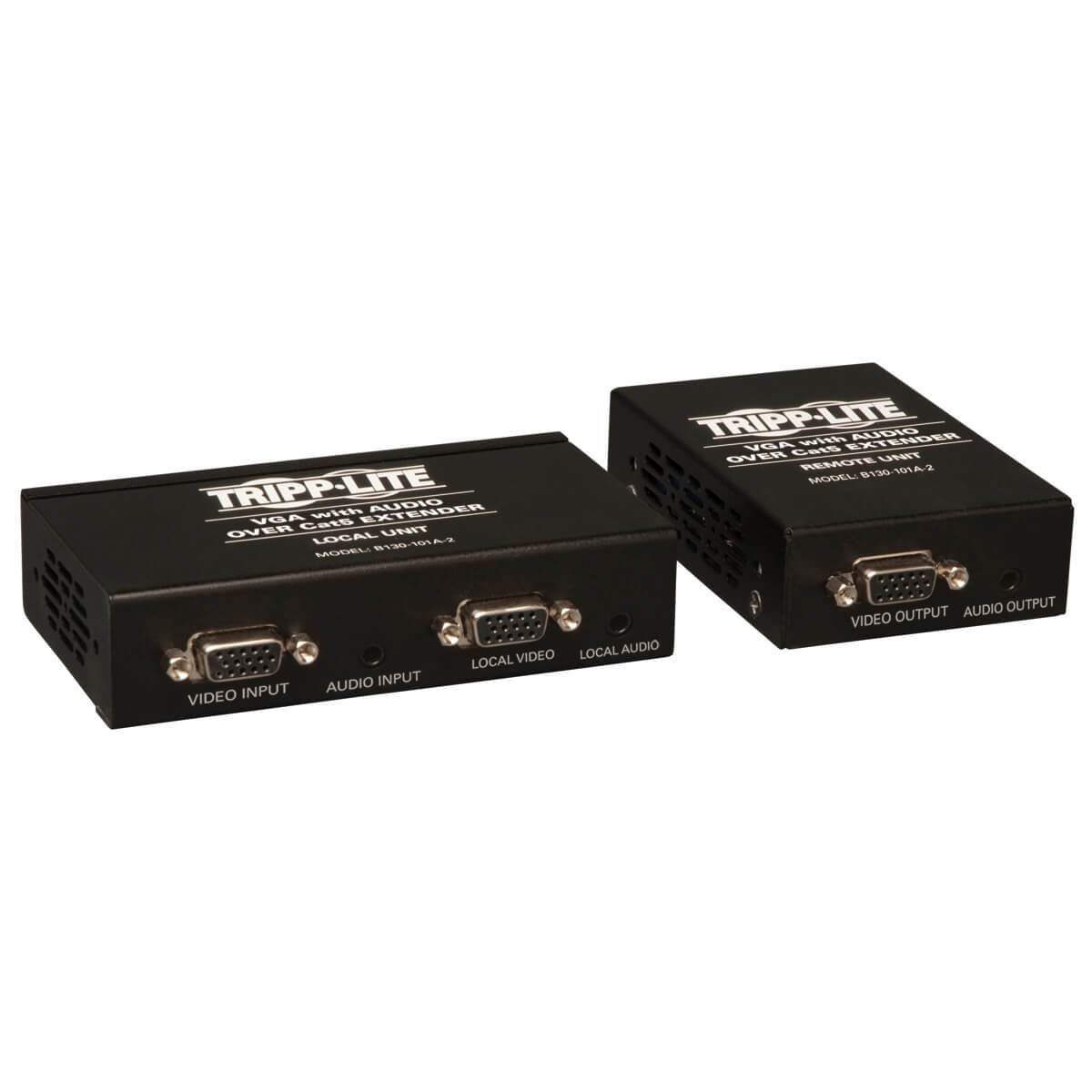

Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) video and audio signal up to 305 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 152 m (500-ft.) from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 305 m (1,000-ft.) from the first repeater in the chain to the last receiver. For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. â— For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia â— Extends a 1920 x 1440 (60Hz) video and audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) video and audio signal up to 305 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) â— EDID copy feature ensures optimal display compatibility â— The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units â— Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers â— A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 152 m (500-ft.) from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 305 m (1,000-ft.) from the first repeater in the chain to the last receiver. â— For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K â— The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image â— Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted â— Ideal for digital signage situations, such as retail, schools, churches, etc.
Specification:
| Features |
|---|
| HDCP |
Yes |
| Wall mountable |
Yes |
| Plug and Play |
Yes |
| HDCP & EDID bypass |
Yes |
| Certification |
TAA |
| Type |
AV transmitter |
| Maximum resolution |
1920 x 1440 pixels |
| Cable types supported |
Cat5, Cat6 |
| Maximum transfer distance |
11811" (300 m) |
| Supported video modes |
480i, 480p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900, 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 1920 x 1440 |
| LED indicators |
Power |
| Product colour |
White |
| Ports & interfaces |
|---|
| 3.5 mm (1/8-inch) in |
Yes |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
2 |
| VGA (D-Sub) input ports |
2 |
| Power |
|---|
| Input current |
0.5 A |
| Output current |
3 A |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Operating voltage |
5 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging data |
|---|
| Package depth |
2.17" (55.1 mm) |
| Package width |
10.2" (260.1 mm) |
| Package height |
6.46" (164.1 mm) |
| Package weight |
25.7 oz (730 g) |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| AC adapter included |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Country of origin |
Taiwan |
| Quantity |
1 |
| Sustainability certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
13.7" (347 mm) |
| Master (outer) case length |
11.7" (297.9 mm) |
| Master (outer) case height |
23.1" (588 mm) |
| Master (outer) case gross weight |
34.4 lbs (15.6 kg) |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332186253 |
