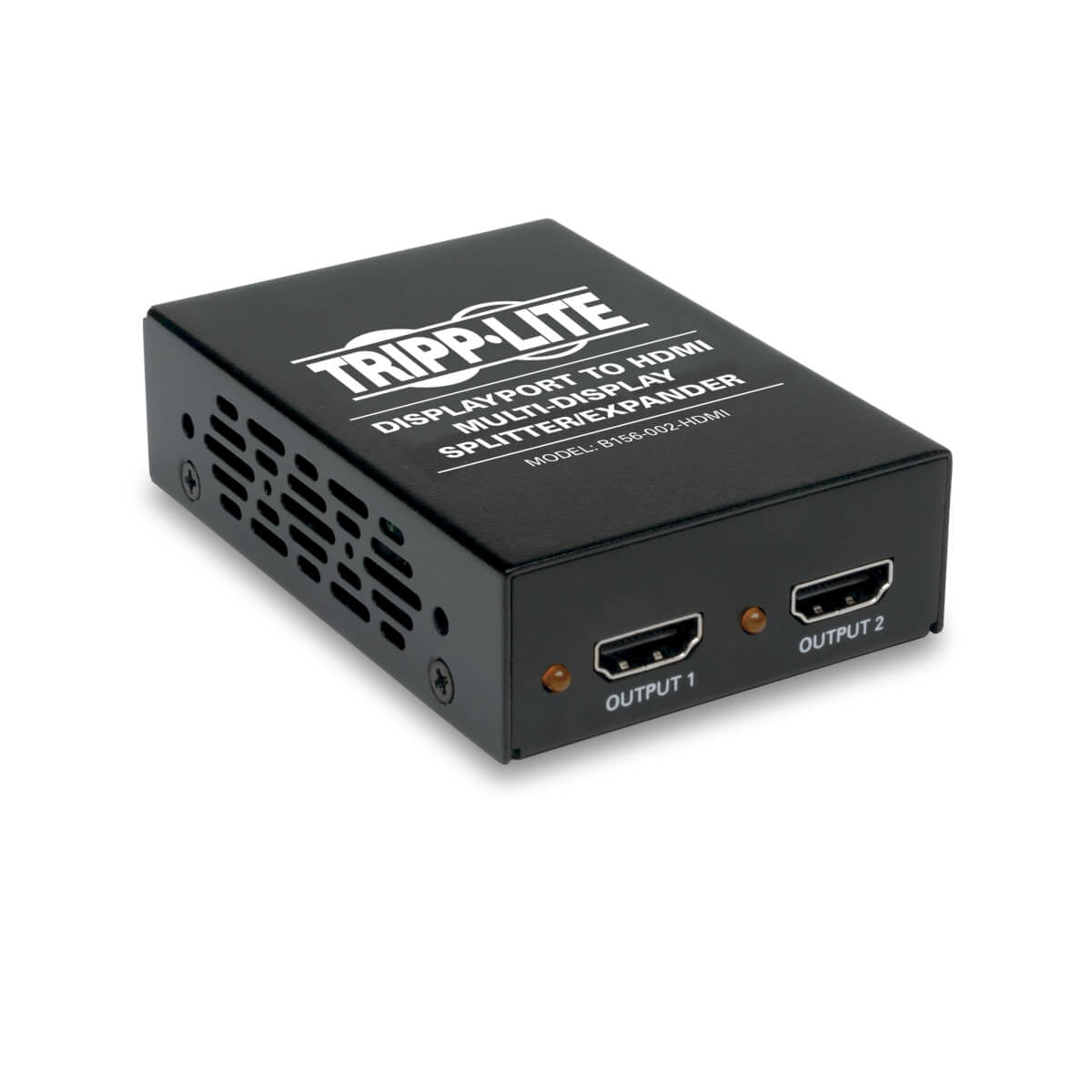

Get everyone’s attention by broadcasting awesome messages in ultra-high definition video! With Tripp Lite's B156-002-HDMI 2-Port DisplayPort 1.2 to HDMI MST Hub, you can split or expand a single DisplayPort signal into two separate signals and display them on two HDMI monitors using standard DisplayPort (Tripp Lite P580-Series or P583-Series) and HDMI (Tripp Lite P568-Series) cables. You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002-HDMI supports 4Kx2K Ultra-High Definition (UHD) video resolutions up to 3840 x 2160 (60 Hz), 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included.
Splitting, Extending, Multi-Display â— Splits or expands a DisplayPort audio/video signal on two HDMI monitors â— Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor â— Supports both 4Kx2K (3840 x 2160 at 60 Hz) UHD video and standard 1080p (1920x1080 at 60 Hz) high-definition video
Video Standards and Protocols ◠Supports up to 48-bit Deep Color (16 bits per channel) and video resolutions up to 4K Ultra High Definition (UHD), 3840 x 2160 @ 60 Hz ◠Complies with HDCP, EDID and DDC ◠Compatible with DisplayPort 1.2 ◠Compatible with Apple® Thunderbolt connectors
Installation â— Plug-and-play; no software or drivers required â— Easy to install; connect the DisplayPort video source to the hub's input port, connect the external power supply and finally connect the two HDMI monitors to the output ports
Mounting Options â— Wall-, rack- or pole-mounting; all mounting hardware is included
System Requirements â— A computer with a DisplayPort v1.2 compatible Graphics Card (e.g. AMD Radeon with AMD Eyefinity technology) is required to display in video wall mode. â— Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on the connected monitors to mirror mode. â— Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror Mode only). Compatibility with older graphics cards is not guaranteed. â— Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities. â— A monitor with a HDMI port. â— For international use, a power supply with the appropriate plug type must be purchased separately.
Specification:
| Ports & interfaces |
|---|
| Video ports quantity |
2 |
| Video port type |
DisplayPort |
| Video out |
2x DisplayPort |
| Connector(s) |
DISPLAYPORT (MALE), (2) DISPLAYPORT (FEMALE) |
| Cable length |
5.91" (0.15 m) |
| Features |
|---|
| Dolby technologies |
DTS-HD, Dolby TrueHD |
| Colour depth |
48 bit |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Yes |
| HD-Ready |
Yes |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Easy to install |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS, REACH |
| Cable length |
5.91" (0.15 m) |
| Country of origin |
Taiwan |
| Weight & dimensions |
|---|
| Weight |
3.17 oz (90 g) |
| Dimensions (WxDxH) |
3 x 1 x 2.42" (76.2 x 25.4 x 61.5 mm) |
| Package weight |
6.35 oz (180 g) |
| Package depth |
5.59" (142 mm) |
| Package width |
1.73" (43.9 mm) |
| Package height |
7.87" (199.9 mm) |
| Packaging data |
|---|
| Package weight |
6.35 oz (180 g) |
| Package depth |
5.59" (142 mm) |
| Package width |
1.73" (43.9 mm) |
| Package height |
7.87" (199.9 mm) |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
Micro-USB |
| Video |
|---|
| Colour depth |
48 bit |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Yes |
| HD-Ready |
Yes |
| HDCP |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS, REACH |
| Technical details |
|---|
| Dolby technologies |
DTS-HD, Dolby TrueHD |
| Supported audio channels |
7.1 |
| Package width |
1.73" (43.9 mm) |
| Package height |
7.87" (199.9 mm) |
| Video out |
2x DisplayPort |
| Plug and Play |
Yes |
| Easy to install |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
6.02" (152.9 mm) |
| Master (outer) case length |
8.39" (213.1 mm) |
| Master (outer) case height |
17.9" (455.9 mm) |
| Master (outer) case gross weight |
4.74 lbs (2.15 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332193367 |
| Harmonized System (HS) code |
8525.50.3035 |
| Country of origin |
Taiwan |
