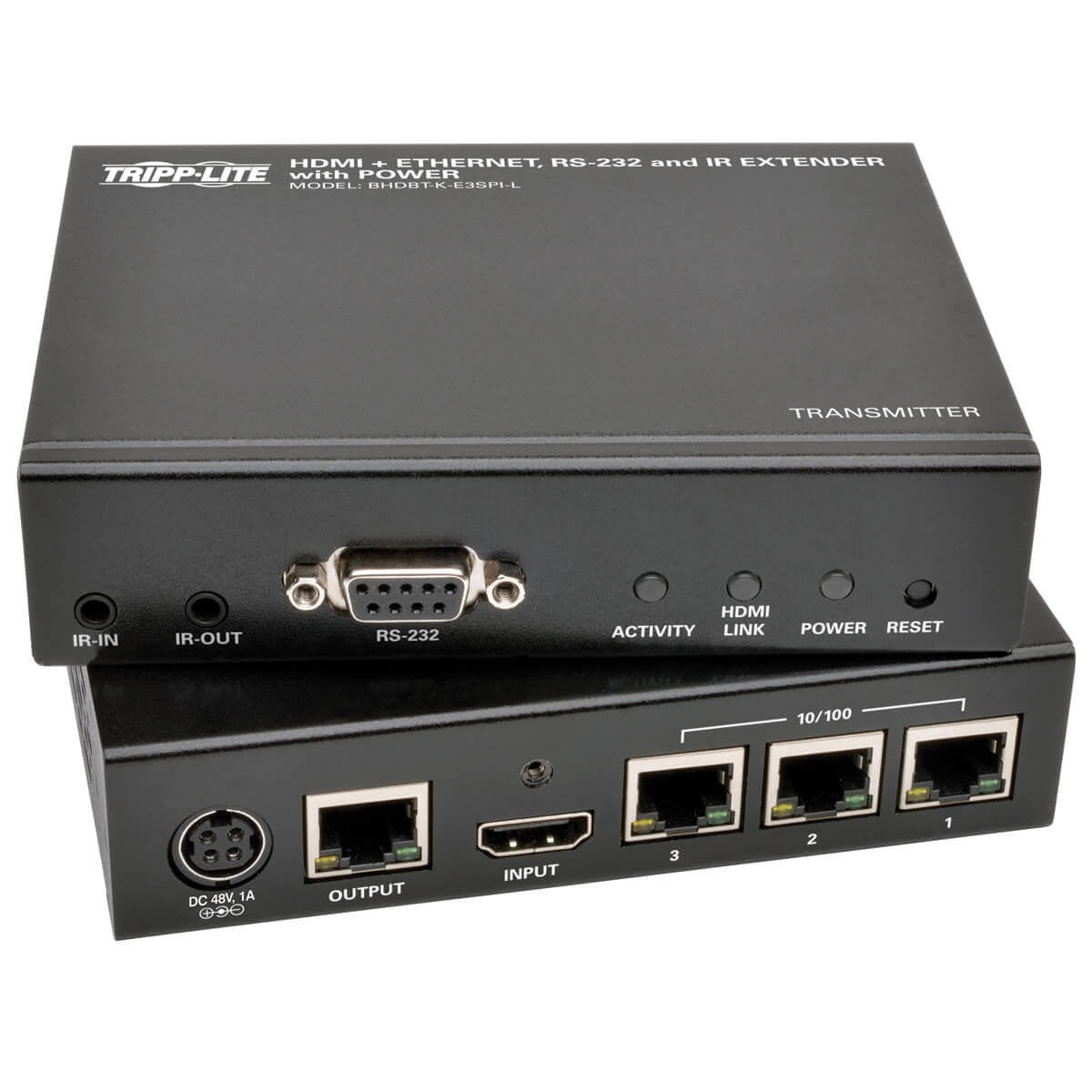

BHDBT-K-E3SPI-L - Tripp Lite HDBASET HDMI OVER CAT5/6/6A EXTENDER KIT POWER/SERIAL/IR/LAN TAA

The BHDBT-K-E3SPI-L HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 99.97 m (328-ft.) over a single Cat5e/6/6a cable, including an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal. In addition to HDMI, RS-232 and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. Three built-in 10/100 Ethernet ports on both the transmitter and receiver allow connected devices, such as a Blu-ray™ player, cable/satellite box, and HDMI television, to communicate with each other and access online content via LAN. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-E3SPI-L supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware. - Ideal for digital signs, classrooms and trade show booths - Built-in 10/100 Ethernet ports on transmitter and receiver - Extends a 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD - Built-in PoE technology powers receiver over Cat5e/6/6a cable - Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths - Extends an Ultra High Definition (UHD) 3840 x 2160 (4K x 2K) signal up to 99.97 m (328-ft.) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio - Supports 3D video, EDID and HDCP - Reduces cable clutter and installation costs - Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power source - Allows connected devices to communicate with each other and access online content via LAN - 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa) - RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors - Prevent cables from coming loose or disconnected, ensuring an intact signal - Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors - Plug and play with no software or drivers to download and install - Includes mounting hardware for installing each unit on a wall, rack or pole



Specification:



Features
HDCP	Yes
Audio output channels	7.1 channels
Wall mountable	Yes
Plug and Play	Yes
HDCP & EDID bypass	Yes
3D	Yes
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	2755.9" (70 m)
Supported video modes	480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900, 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA)
LED indicators	Status
Product colour	Black
Ports & interfaces
Remote (IR) output	2
Remote (IR) input	2
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
Power
Power over Ethernet (PoE)	Yes
Input current	1.5 A
Output current	1 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating voltage	48 V
Packaging data
Package depth	3.19" (81 mm)
Package width	5.91" (150.1 mm)
Package height	8.43" (214.1 mm)
Package weight	2.95 lbs (1.34 kg)
Packaging content
Mounting kit	Yes
Cables included	IR
AC adapter included	Yes
Manual	Yes
Technical details
Country of origin	Taiwan
Logistics data
Master (outer) case width	12.6" (320 mm)
Master (outer) case length	9.72" (246.9 mm)
Master (outer) case height	16.9" (430 mm)
Master (outer) case gross weight	30.4 lbs (13.8 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332186932
