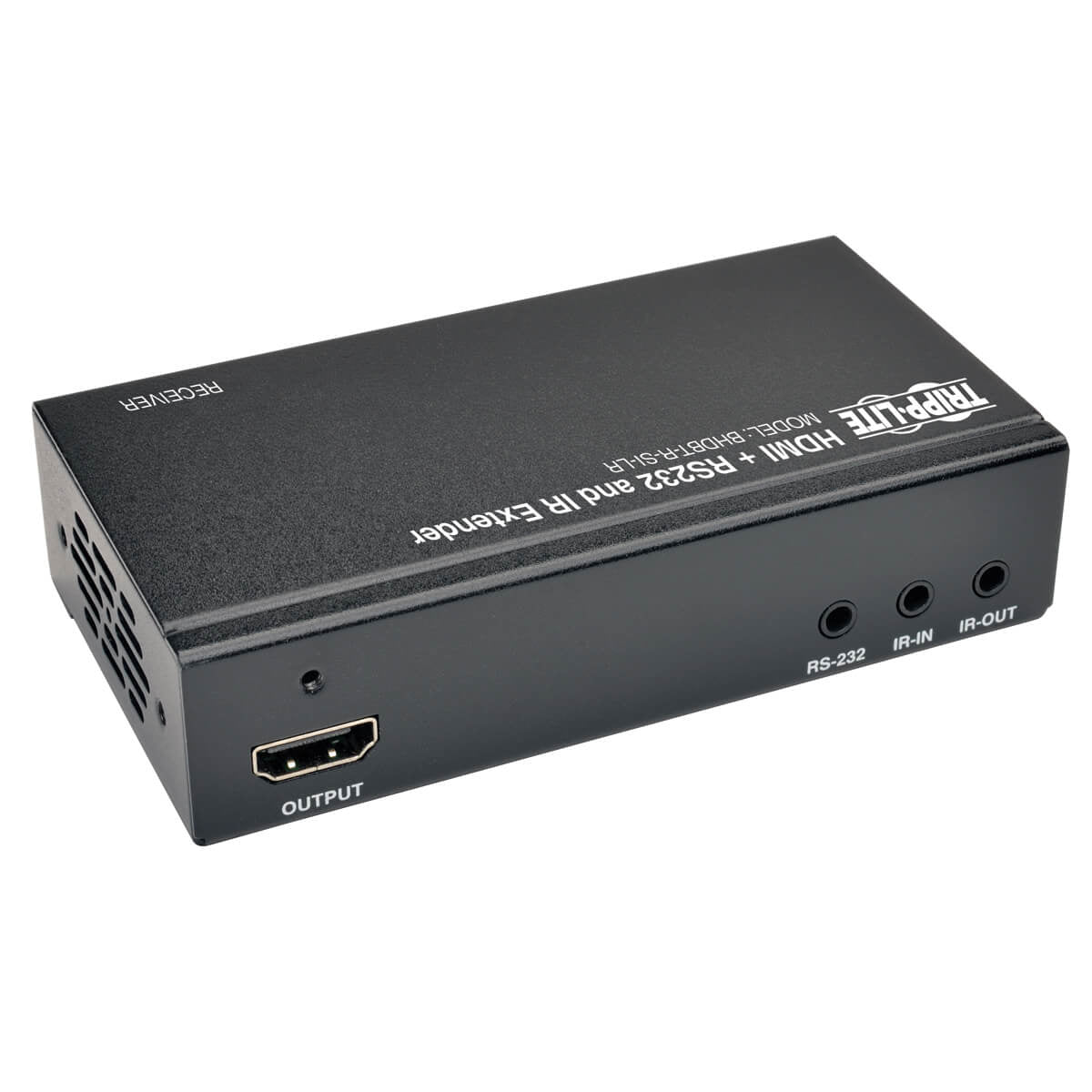

BHDBT-R-SI-LR - Tripp Lite HDBASET HDMI OVER CAT5/CAT6 EXTENDER RECEIVER SERIAL/IR 100M TAA

Works with a Tripp Lite HDBaseT matrix transmitter to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals over a Cat5e/6/6a cable up to 328 ft. to a projector, monitor or television. - Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m) - Extends a 1080p @ 60 Hz signal up to 328 ft. (100 m) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD - Mounts easily to wall, rack or pole - Plug and play—no software or drivers to install The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver. You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite’s P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal. The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install. Supports the Latest Video and Audio Applications - Connects to Tripp Lite BHDBT-Series matrix transmitter with a single Cat5e/6/6a cable - Extends an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal or High Definition 1920 x 1080(1080p) @ 60 Hz signal up to 328 ft.(100 m) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio - Supports 36-bit Deep Color(12 bits per channel), CEC pass-through, 3D video, EDID and HDCP - Add up to 5 BHDBT-TR-SI-LR Extender Transceivers to further expand the range of your installation up to 2,000 ft.(610 m) with a monitor attached to each transceiver Allows You to Control Other Devices - 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor(and vice versa) - RS-232 serial port supports 115 Kbps full-duplex baud rates for devices such as scanners and touchscreen monitors Easy to Set Up and Use - Plug-and-play engineering—no software or drivers to download and install - Included mounting hardware lets you install each unit on a wall, rack or pole - Locking HDMI port(ideal for use with Tripp Lite’s P569-006-LOCK HDMI cables) prevents cable from coming loose or disconnected, ensuring an intact signal TAA-Compliant - Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases



Specification:



Features
HDCP	Yes
Colour depth	36 bit
Audio output channels	7.1 channels
Plug and Play	Yes
HDCP & EDID bypass	Yes
Consumer Electronics Control (CEC) support	Yes
3D	Yes
Certification	CE, FCC, REACH
Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6e
Maximum transfer distance	2755.9" (70 m)
Supported video modes	480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour	Black
Ports & interfaces
Ethernet LAN	Yes
RJ-45 input ports	2
HDMI in	1
Power
Input current	0.5 A
Output current	3 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating voltage	5 V
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	5" (127 mm)
Height	1.2" (30.5 mm)
Depth	4" (101.6 mm)
Weight	15.9 oz (450 g)
Packaging data
Package depth	6.5" (165.1 mm)
Package width	8.4" (213.4 mm)
Package height	2.2" (55.9 mm)
Package weight	21.5 oz (610 g)
Packaging content
Mounting brackets included	Yes
AC adapter included	Yes
Manual	Yes
Technical details
Country of origin	Taiwan
Quantity	1
Sustainability certificates	RoHS
Logistics data
Master (outer) case width	22.6" (574 mm)
Master (outer) case length	6.9" (175.3 mm)
Master (outer) case height	8.9" (226.1 mm)
Master (outer) case gross weight	14 lbs (6.35 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332187069
