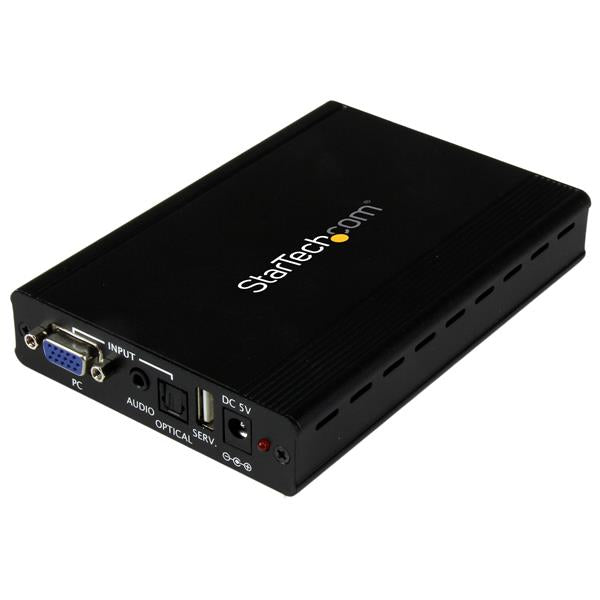

This VGA to HDMI® converter and scaler lets you connect your analog VGA video signal to a digital HDMI display. It features a built-in video scaler that adjusts the output signal to suit virtually any HDMI display. It scales the signal to your choice of resolutions, up to 1080p. The converter and scaler features 3.5mm and optical audio inputs, which let you combine audio into the HDMI output. The scaler creates a digital signal at high resolutions that's perfect for updating legacy VGA video equipment to work with newer HDMI televisions or projectors.
Ensure compatibility between your VGA source and HDMI display New HDMI displays are phasing out support for lower resolution video signals such as 480i, 480p, and 720p. Without support for these common VGA resolutions, you may not be able to use a standard adapter to connect your legacy video output to your new display. This converter lets you continue using your current VGA source equipment by scaling your video signal to a resolution that’s compatible with your new HDMI display. Scaling your source enables you to upgrade to a sleek new HDMI display while keeping your tried-and-true source material on display at trade shows and storefronts.
Continue using your reliable VGA source Upgrading every component in your A/V setup can be costly and time consuming. Retaining your source can save you the cost and hassle of buying and configuring new equipment. With the VGA to HDMI converter, you can bridge the gap between old and new technologies by converting your dependable VGA source to high-resolution HDMI.
Enjoy hassle-free operation This converter features automatic resolution detection that minimizes your setup time by avoiding tedious programming. Plus, it features an intuitive on-screen menu that lets you customize the parameters of your input to quickly select and compare different output options, ensuring you get the best video solution possible in a very short time period. Notes: This converter does not output digitally-encrypted content. This converter is the direct replacement for VGA2HDMIPRO. The VGA2HDPRO2 and is backed by a 2-year warranty and free lifetime technical support.
Specification:
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Micro Silicon - MS9282 |
| Product colour |
Black |
| Maximum resolution |
1920 x 1080 pixels |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Other features |
|---|
| Width |
0.472" (12 mm) |
| Height |
1.38" (35 mm) |
| Depth |
9.84" (250 mm) |
| Weight & dimensions |
|---|
| Width |
0.472" (12 mm) |
| Height |
1.38" (35 mm) |
| Depth |
9.84" (250 mm) |
| Weight |
2.49 oz (70.7 g) |
| Package width |
5.67" (144 mm) |
| Package depth |
6.81" (173 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
5.33 oz (151 g) |
| Packaging data |
|---|
| Package width |
5.67" (144 mm) |
| Package depth |
6.81" (173 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
5.33 oz (151 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
