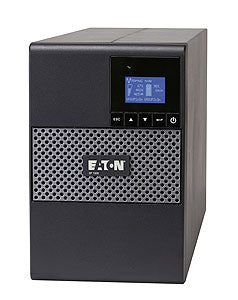

5P850G - Eaton 5P 850VA TOWER LCD 208/230V

The Eaton 5P Tower UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.



Specification:



Power
Output power	600 W
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	98%
Emergency Power Off (EPO)	Yes
Output power capacity	0.85 kVA
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
LED indicators	Yes
Noise level	45 dB
Features
UPS topology	Line-Interactive
Output power	600 W
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	98%
Emergency Power Off (EPO)	Yes
Noise level	45 dB
Output power capacity	0.85 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	12 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Design
Rack capacity	1U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black, Silver
Certification	UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Weight	30.4 lbs (13.8 kg)
Width	17.2" (438 mm)
Height	1.7" (43.2 mm)
Depth	20" (509 mm)
Certificates
Certification	UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC
