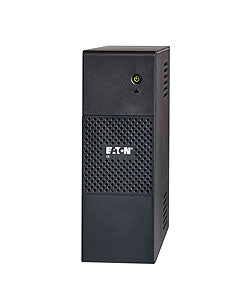

5S700G - Eaton 5S 700VA GLOBAL TOWER 208V/230V

The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.



Specification:



Power
Output power	420 W
Input operation voltage (min)	93 V
Input operation voltage (max)	138 V
Efficiency	95%
Output power capacity	0.7 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	70.9" (1.8 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Performance
UPS topology	Line-Interactive
Surge protection	Yes
Surge protection features	Network
Noise level	25 dB
Features
UPS topology	Line-Interactive
Output power	420 W
Input operation voltage (min)	93 V
Input operation voltage (max)	138 V
Efficiency	95%
Surge protection	Yes
Surge protection features	Network
Noise level	25 dB
Output power capacity	0.7 kVA
Input frequency	50/60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	11 min
Typical backup time at full load	2 min
Design
Form factor	Tower
Product colour	Black
Certification	UL 1778, UL497A CE / cTUVus / NOM
Cable length	70.9" (1.8 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Weight	13 lbs (5.9 kg)
Width	3.39" (86 mm)
Height	9.8" (249 mm)
Depth	10.2" (259 mm)
Certificates
Certification	UL 1778, UL497A CE / cTUVus / NOM
Other features
Nominal output voltage	115 V
Nominal input voltage	120 V
