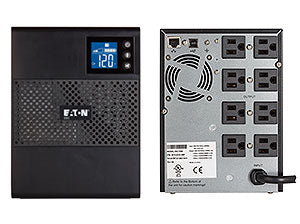

5SC1500 - Eaton 5SC-1500VA TOWER (120V)

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.



Specification:



Power
Output power	1050 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	94%
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Performance
Waveform	Sine
LED indicators	Yes
Noise level	55 dB
Features
Waveform	Sine
Output power	1050 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	94%
Noise level	55 dB
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	12 min
Typical backup time at full load	5 min
Hot-swap battery	No
Cold start	Yes
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Safety	CE/cTUVus/C-Tick/Ghost/CCC
Certification	IEC 62040-2:2006 Cat C1 / CISPR22 Class B / FCC part 15 Class B
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	33.5 lbs (15.2 kg)
Width	5.91" (150 mm)
Height	8.23" (209 mm)
Depth	16.1" (410 mm)
Certificates
Safety	CE/cTUVus/C-Tick/Ghost/CCC
Certification	IEC 62040-2:2006 Cat C1 / CISPR22 Class B / FCC part 15 Class B
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
