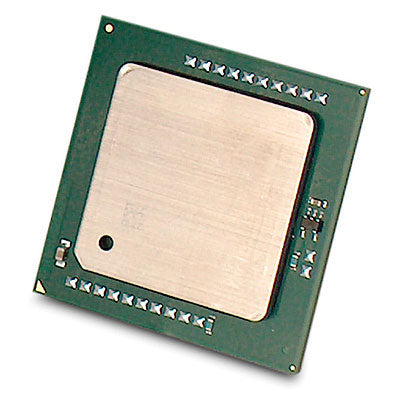

00YE715 - Lenovo SP XEON E5-2695 2.1GHZ 2400MHZ

Servers, workstations, and storage solutions based on the new Intel Xeon processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face. Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business. Technology to scale innovative private cloud services Today’s private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel® Xeon® processor E5 family are built to be at the heart of today’s data centers and enable powerful, versatile private cloud solutions. New Intel® Xeon® processor E5: a new performance sweet spot The Intel® Xeon® processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel® Xeon® processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.



Specification:



Processor
Processor base frequency	2.1 GHz
Memory bandwidth supported by processor (max)	76.8 GB/s
Thermal Design Power (TDP)	120 W
Processor cache	40 MB
Processor model	E5-2683V4
Processor threads	32
System bus rate	9.6 GT/s
Processor operating modes	64-bit
Processor boost frequency	3 GHz
Stepping	B0
Number of QPI links	2
Bus type	QPI
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® E5 v4
Processor cores	16
Processor socket	LGA 2011-v3
Processor series	Intel Xeon E5-2600 v4
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	1536 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	120 W
Technical details
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	2
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	120 W
Processor series	Intel Xeon E5-2600 v4
Physical Address Extension (PAE)	46 bit
Market segment	Server
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Features
Maximum number of PCI Express lanes	40
Thermal Design Power (TDP)	120 W
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
Embedded options available	No
CPU configuration (max)	2
Physical Address Extension (PAE)	46 bit
Market segment	Server
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® OS Guard	Yes
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Operational conditions
Tcase	84 °C
Other features
CPU configuration (max)	2
