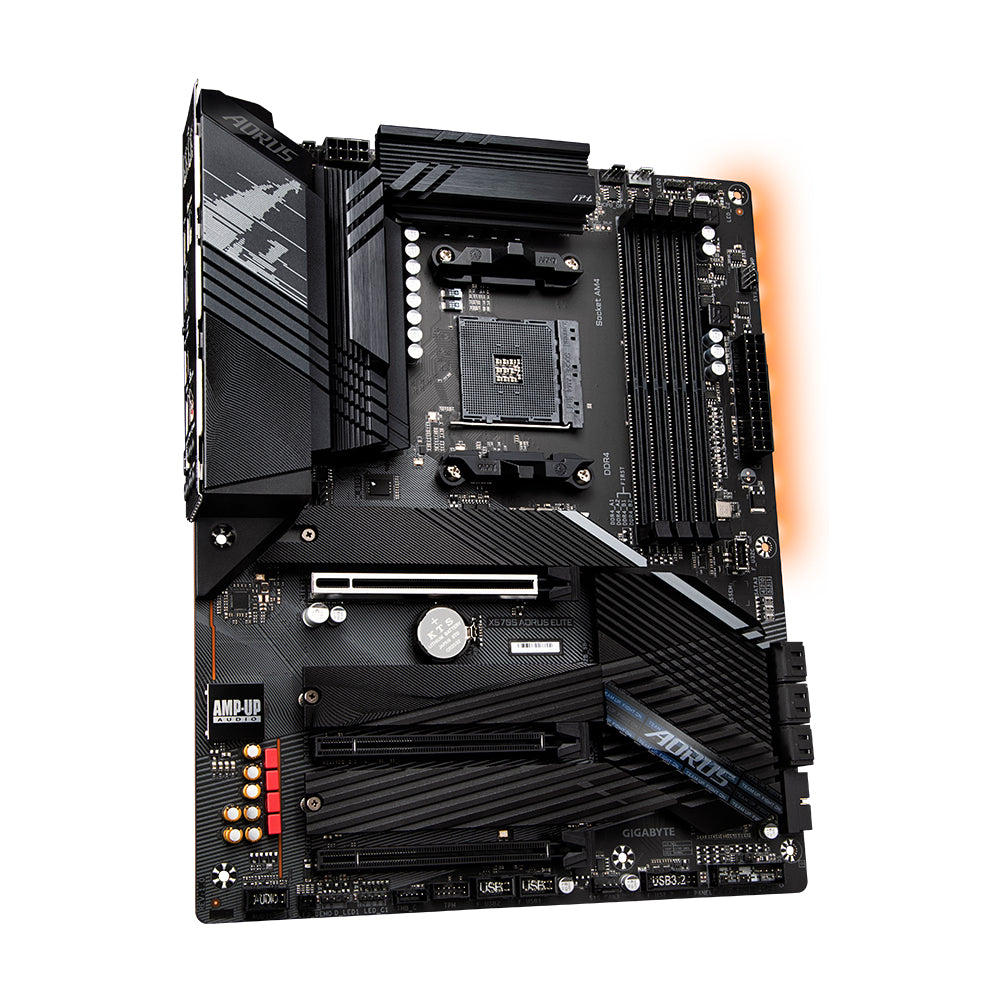

X570S AORUS ELITE - Gigabyte AMD X570 MOTHERBOARD AORUS

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads. UNPARALLELED PERFORMANCE To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS Elite is a true beast among motherboards. Twin and Digital Power for CPU Vcore GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise. Triple PCIe 4.0/3.0 x4 M.2 Connectors with Thermal Guard AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems' potential. ADVANCED THERMAL SOLUTION X570S AORUS ELITE uses high performance Full Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. AORUS M.2 Thermal Guard GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. High Current Support Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control Up to 6 temperature/fan speed control points for precise fan curve Smart Fan 6 BIOS UI Improve fan curve UI We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control. Slope/Stair dual graph mode Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval. Manual Input For advanced users, we provide fan speed manual input for more precise control. EZ Tuning Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve. Fan curve profile Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. NEXT GENERATION CONNECTIVITY A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS ELITE provides all next generation network, storage, and connectivity to keep you up to speed. First adopter on 2.5 GbE LAN onboard 2X Faster than ever - Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. - Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet Connecting the Future - USB 3.2 Gen 2x2 Type-C® Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly. HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers. Hi-Res Audio Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times. Immersive Gaming ViBes Realtek High-End HD Audio Codec ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A). DEFINITIVE AESTHETICS X570S AORUS ELITE features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC. BIOS New User Interface All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. My Favorites Add constantly used items into the favorite menu for quick access. Storage Information Show all kinds of storage information including SATA, PCIE and M.2 interface. Changelog List all changes before saving and exiting bios. Quickly review overall settings modification. Intuitive Load Line Curve Clearly show each loadline calibration setting in an intuitive curve graph. EasyTune™ GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer. ULTRA DURABLE GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE motherboard and reinforce every slot to make each of them solid and durable. Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! Ultra Durable™ PCIe Armor Industry Leading Ultra Durable™ PCIe Armor The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. Solid Pin Power Connectors AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. Solid Pin Power connector advantages - Larger contact area for electricity - More metal quantity to sustain higher power and generated heat - Ultra durable and longer lifespan



Specification:



Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	6
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
RAID levels	0, 1, 10
Windows operating systems supported	Windows 10 x64
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 5, AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9, AMD Ryzen 9 5th Gen
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266,4300,4400,4600,4866,5000,5100,5200,5400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	4
WiFi-AP antenna jack	2
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
Windows operating systems supported	Windows 10 x64
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC1220-VB
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 slots	3
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Software
Windows operating systems supported	Windows 10 x64
Drivers included	Yes
Bundled software	Norton® Internet Security (OEM version), Realtek® 8125 Gaming LAN Bandwidth Control Utility
Weight & dimensions
Height	3.15" (80 mm)
Weight	2.2 lbs (1 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Packaging content
Drivers included	Yes
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version), Realtek® 8125 Gaming LAN Bandwidth Control Utility
Other features
Height	3.15" (80 mm)
Weight	2.2 lbs (1 kg)
