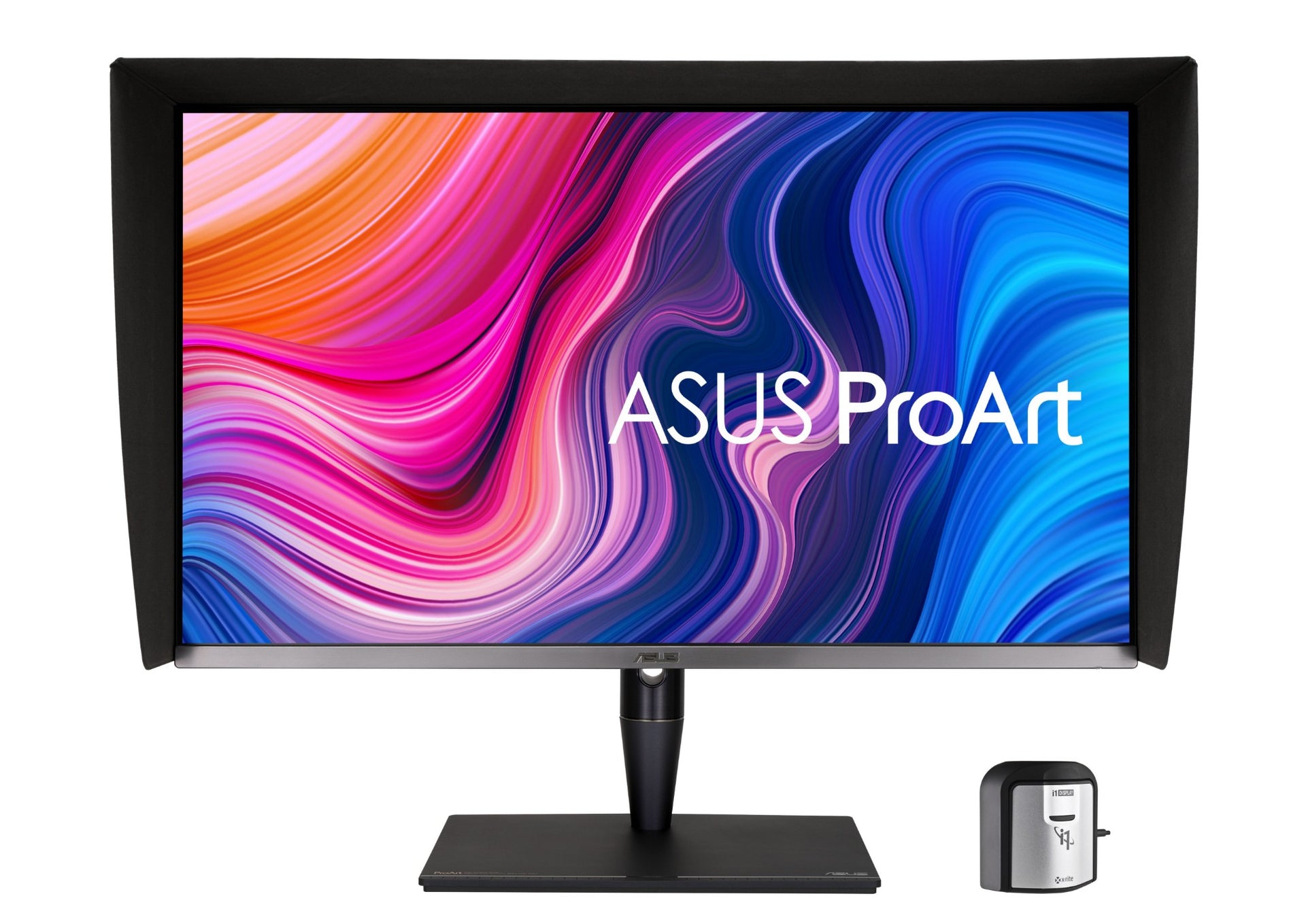

ASUS PROART DISPLAY 32 4K HDR PROFESSIONAL MONITOR (PA32UCG-K) - UHD (3840 X 216

ASUS ProArt Display PA32UCG 4K HDR IPS mini LED professional monitor – 32-inch, 1600 nits, 1152-zone local dimming, 120 Hz variable refresh rate (VRR), FreeSync Premium Pro, Dolby Vision®, HDR10, HLG, Delta E < 1, DCI-P3, hardware calibration, Thunderbolt™ 3, VESA DisplayHDR™ 1400, Calman ready, ColourSpace integration, HDMI 2.1 WORLD’S 1st HDR 1600 Nits & 120 Hz Monitor It’s time to experience ASUS ProArt Display PA32UCG – the world’s first HDR 1600 display with up to a 120 Hz Variable Refresh Rate. Its mini-LED backlight provides 1600 nits peak brightness and 1000 nits of sustained brightness without partial patch limitation, and industry-leading Delta E < 1 color difference. In addition, convenient hardware calibration, new HDMI(v2.1) and Thunderbolt™ 3 of rich connectivity options make creative workflows seamless and efficient, perfect for content creators. Empowering content creators Game Developers Take advantage of the 48 to 120 Hz refresh rate to create fast-rendering games and conduct quality checks on a single display. Cinematographers The 32-inch mini-LED backlit 4K panel offers higher luminance and deeper black hues for exceptional color contrast and accurate reproduction of HDR content. Colorists Factory pre-calibration ensures industry-leading color fidelity, and a wide color gamut and Delta E < 1 color difference ensures outstanding color accuracy. Impeccably detailed visuals Mini-LED backlight technology uses smaller LEDs to provide up to three times the number of LEDs, compared to a conventional panel of a similar size. The densely packed mini LEDs enable increased granularity and brightness. Plus, individual backlight control across an astounding 1152 zones ensures higher luminance and deep dark colors to deliver unmatched contrast and accurate reproduction of HDR content. Deeper blacks, brighter whites A peak brightness of 1600 nits and industry-leading 1000 nits of full-screen sustained brightness allows for outstanding contrast between the deepest blacks and gleaming whites. Excellent color and contrast from any viewing angle Direct type LED backlight displays have narrow viewing angles, which can make collaboration with clients or colleagues on color-critical work challenging due to inaccurate colors being displayed to viewers seated to the side.ASUS Off-Axis Contrast Optimization (OCO) technology solves this problem with a compensation layer that controls light transmittance around the edges, reducing halo effects by 80%* and providing a 7X* contrast-ratio enhancement for dark parts of the image when viewing the screen from an angle. Create in ultra-vivid HDR Exclusive ASUS Smart HDR technology enables ProArt Display PA32UCG to support multiple HDR formats, including Dolby Vision®, HLG and HDR-10. Dolby Vision transforms the viewing experience with unmatched levels of brightness, contrast and colors. HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV. HDR-10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games. Transform viewing experiences Quantum Dot Technology delivers 98% DCI-P3, 99.5% Adobe RGB, 100% sRGB, 100% Rec. 709 and Rec. 2020 color spaces for video editing and post-production. Its true 10-bit IPS panel with peak brightness of 1600 nits and Quantum Dot technology provides content creators with a vast color spectrum to play with. Ideal for game developers and video editors PA32UCG offers up to a 120 Hz variable refresh rate (VRR) with FreeSync Premium Pro, allowing game developers to create fast-rendering games and conduct quality checks on one display. HDMI(v2.1) with 4K 120 Hz support also makes it ideal for video editors, enabling them to work with high-quality, detailed visuals at supersmooth frame rates. Truest color, flexible calibration Saved color parameter profiles ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor’s internal scaler IC chip, instead of on the PC. The saved profiles can be easily activated via the hotkey on the monitor. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings. Signal distortion between the IC and the LCD optical spectrum is also reduced. ProArt Calibration 2.0 Integrated ASUS ProArt Calibration 2.0 enables swift and easy adjustments to maintain the color accuracy of ASUS ProArt monitors. It offers SDR and HDR calibration with adjustable brightness, color gamut, color temperature and other parameters to ensure consistent and precise colors. Seamless calibration ProArt displays are compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software* for fast, easy calibration. Streamlined, efficient workflows Connect to Your Workflow HDMI(v2.1), DisplayPort 1.4, Thunderbolt™ 3 USB-C and a USB hub enable convenient connections to a desktop, Blu-ray player, control panel or additional display with zero hassle. Diverse viewing options Picture-by-Picture (PbP) mode View two to four different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2. Ergonomic Design An ergonomic stand that offers tilt, swivel, pivot, and height adjustments. The onscreen menu even rotates automatically to display information correctly when the monitor is used in portrait orientation- which is handy when working with websites or longer documents. Detachable Monitor Hood A detachable hood efficiently blocks out ambient light and reflections, allowing for more accurate and realistic colors onscreen.



Specification:



Display
HDCP	Yes
Display brightness (typical)	400 cd/m²
Screen shape	Flat
Display number of colours	1.073 billion colors
Native aspect ratio	16:9
Colour gamut	100%
Maximum refresh rate	60 Hz
sRGB coverage (typical)	100%
HD type	4K Ultra HD
Display technology	LED
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	100000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.00726 x 0.00726" (0.184 x 0.184 mm)
Digital horizontal frequency	40 - 144 kHz
Digital vertical frequency	30 - 60 Hz
Backlight type	LED
Display resolution	3840 x 2160 pixels
Response time	5 ms
Display diagonal	32"
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	IPS
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
RGB colour space	sRGB
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Low Blue Light technology	Yes
Flicker-free technology	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in camera	No
Design
Certification	TÃœV Flicker-free TÃœV Low Blue Light VESA DisplayHDR 1000 Calman Ready
Product colour	Black
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
Headphone out	Yes
HDMI ports quantity	3
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.2
Charging port type	USB Type-C
Technical details
Height (without stand)	16.8" (42.6 cm)
Depth (without stand)	2.7" (6.87 cm)
Width (without stand)	28.6" (72.7 cm)
Cable lock slot	Yes
HDMI	Yes
Product colour	Black
Weight (with stand)	27.1 lbs (12.3 kg)
Touchscreen	No
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 23°
Height adjustment	5.12" (13 cm)
Pivot	Yes
Pivot angle	-90 - 90°
Height adjustment	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	46 W
Power consumption (PowerSave)	0.5 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	42 kWh
Energy consumption (HDR) per 1000 hours	70 kWh
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	AC, DisplayPort, HDMI, USB Type-C
Weight & dimensions
Height (without stand)	16.8" (42.6 cm)
Depth (without stand)	2.7" (6.87 cm)
Width (without stand)	28.6" (72.7 cm)
Width (with stand)	28.6" (726.9 mm)
Depth (with stand)	9.65" (245 mm)
Height (with stand)	23.8" (604.1 mm)
Weight (with stand)	27.1 lbs (12.3 kg)
Weight (without stand)	17 lbs (7.7 kg)
Packaging data
Stand included	Yes
Quick start guide	Yes
Cables included	AC, DisplayPort, HDMI, USB Type-C
Logistics data
Harmonized System (HS) code	85285210
Other features
Height (without stand)	16.8" (42.6 cm)
Depth (without stand)	2.7" (6.87 cm)
Width (without stand)	28.6" (72.7 cm)
Quick start guide	Yes
HDMI	Yes
Touchscreen	No
Certificates
Certification	TÃœV Flicker-free TÃœV Low Blue Light VESA DisplayHDR 1000 Calman Ready
