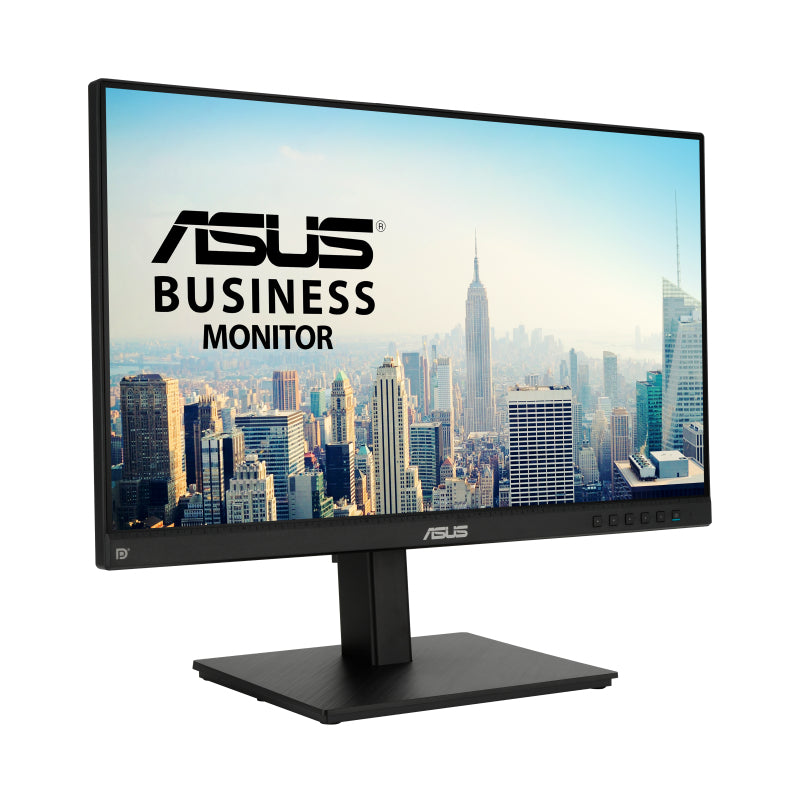

ASUS BE24ECSBT Touch Monitor ASUS BE24ECSBT is a 23.8-inch Full HD(1920x1080) IPS monitor which combines 10-point multi-touch capability* with superb image quality, flexible connectivity, durability and great ergonomics. The precise and accurate multi-touch display— allowing up to 10 simultaneous touches — is optimized for use with Windows 11 and 10, allowing you to work smarter and more efficiently, as well as perfect for public usage. Its ergonomic stand offers tilt, swivel, pivot and height adjustments to provide comfortable viewing experiences in any setting. *10-point touch functionality depends on operating system.
The USB-C That Does It All An included USB-C® port enables superfast data transfers, DisplayPort connectivity and 80-watt power delivery to charge devices via just one USB-C cable. The monitor also serves as a USB hub: any device connected to the USB Type-A ports gains access to other peripherals hooked up to the other USB ports.
Extensive Connectivity Along with a USB-C port, ASUS BE24ECSBT offers an HDMI®, DisplayPort™ input and output, and three USB 3.2 Gen1 type A downstream ports― so its compatible with a wide variety of devices. It also has pass-through port for the headphone jack input.
Lifelike views with 178° wide view angle Full HD resolution and frameless IPS panel provides 178 viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.
Versatile, ergonomic stand for custom comfort A comfortable viewing position is always within reach thanks to ergonomically-designed stand with tilt, swivel, pivot, and height adjustments provides a superb range of viewing options for increased productivity and comfort. The screen can also be rotated vertically through 90 degree for use in Portrait mode, which is a great benefit when working with long documents, writing code or browsing lengthy websites.
In-game Enhancements Adaptive-Sync technology to eliminate screen tearing and choppy frame rates to give you seamless visuals and smooth gameplay. This gives you the upper hand in first person shooters, racing, real-time strategy and sports titles. (Adaptive-Sync works at fresh rates ranging from 48Hz to 75Hz). The ASUS-exclusive, integrated GamePlus can help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
Protect your eyes with ASUS Eye Care technology ASUS blue light filter Exclusive ASUS blue light filter protects you from harmful blue light. It's easy to access, intuitive and flexible with seamless adjustment (0 to Maximum) via the OSD menu.
ASUS Flicker free technology It's time to say goodbye to those tired, strained eyes. Flicker Free technology helps reduce onscreen flicker, giving you a more comfortable, movie marathon ready environment. It is designed to minimize eyestrain, headaches and eye fatigue when you spend long, countless hours in front of the display.
Exclusive ASUS features for added versatility Splendidâ„¢ Video Intelligence Technology ASUS Splendidâ„¢ technology that optimizes videos and images by enhancing color brightness, contrast and sharpness. It features a wide variety of modes including Reading, Darkroom, Scenery, Standard, Theater, sRGB , Game and Night View.
Smart Cable Management Cable management design helps you organize and hide various cables to keep your desk area tidy.
Specification:
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
300 cd/m² |
| Screen shape |
Flat |
| Dynamic contrast ratio marketing name |
ASUS Smart Contrast Ratio (ASCR) |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| Display surface |
Matt |
| HD type |
Full HD |
| Contrast ratio (typical) |
1000:1 |
| Contrast ratio (dynamic) |
100000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Viewable size, horizontal |
20.7" (52.7 cm) |
| Viewable size, vertical |
11.7" (29.6 cm) |
| Backlight type |
LED |
| Display resolution |
1920 x 1080 pixels |
| Response time |
5 ms |
| Display diagonal |
23.8" |
| Touchscreen |
No |
| Panel type |
IPS |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Megapixel (approx.) |
2 MP |
| Built-in camera |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Megapixel (approx.) |
2 MP |
| Built-in camera |
Yes |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Black |
| Camera |
|---|
| Megapixel (approx.) |
2 MP |
| Built-in camera |
Yes |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-C |
| Number of upstream ports |
1 |
| USB Type-A downstream ports quantity |
4 |
| Headphone out |
Yes |
| HDMI ports quantity |
1 |
| HDCP |
Yes |
| Headphone outputs |
1 |
| HDMI |
Yes |
| HDMI version |
1.4 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
80 W |
| Number of USB Type-C upstream ports quantity |
1 |
| HDCP version |
1.4 |
| Technical details |
|---|
| Height (without stand) |
15.4" (39 cm) |
| Depth (without stand) |
2.4" (6.1 cm) |
| Width (without stand) |
21.3" (54 cm) |
| RJ-45 ports quantity |
1 |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Product colour |
Black |
| Sustainability certificates |
TCO |
| Weight (with stand) |
14.3 lbs (6.5 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Swivelling |
Yes |
| Swivel angle range |
180 - -180° |
| Tilt angle range |
35 - -5° |
| Height adjustment |
5.91" (15 cm) |
| Pivot |
Yes |
| Pivot angle |
90 - -90° |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power consumption (typical) |
17.7 W |
| Power consumption (off) |
0.5 W |
| Power consumption (PowerSave) |
0.5 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
E |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Packaging content |
|---|
| Stand included |
Yes |
| Weight & dimensions |
|---|
| Height (without stand) |
15.4" (39 cm) |
| Depth (without stand) |
2.4" (6.1 cm) |
| Width (without stand) |
21.3" (54 cm) |
| Width (with stand) |
21.2" (539.7 mm) |
| Depth (with stand) |
8.32" (211.4 mm) |
| Height (with stand) |
21.2" (538.9 mm) |
| Weight (with stand) |
14.3 lbs (6.5 kg) |
| Weight (without stand) |
9.48 lbs (4.3 kg) |
| Package width |
28.4" (722 mm) |
| Package depth |
18.9" (481 mm) |
| Package height |
7.17" (182 mm) |
| Package weight |
19.6 lbs (8.9 kg) |
| Packaging data |
|---|
| Package width |
28.4" (722 mm) |
| Package depth |
18.9" (481 mm) |
| Package height |
7.17" (182 mm) |
| Package weight |
19.6 lbs (8.9 kg) |
| Package type |
Box |
| Stand included |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
TCO |
| Other features |
|---|
| Height (without stand) |
15.4" (39 cm) |
| Depth (without stand) |
2.4" (6.1 cm) |
| Width (without stand) |
21.3" (54 cm) |
| HDMI |
Yes |
| USB Power Delivery up to |
80 W |
| Energy efficiency scale |
A to G |
| RJ-45 ports quantity |
1 |
| Touchscreen |
No |
| USB Power Delivery |
Yes |
| Package type |
Box |
