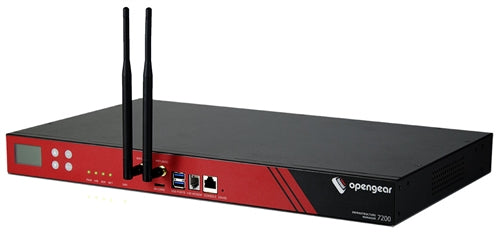

IM7216-2-24E-DAC-EU - OPENGEAR 16 SERIAL 24 GIGA SWITCH 2 ETH WIFI PSTN

The Opengear IM7200 is a state of the art infrastructure management solution which streamlines remote management of network, server and power infrastructure in data center and remote environments, ensuring business continuity, secure and reliable access, monitoring teams. The next generation IM7200 combines Smart OOBâ„¢ out-of-band management with Failover to Cellularâ„¢ and delivers proactive monitoring and remediation.

- 8 – 48 port serial console server, manage network and server consoles. Also available in 16 port + 24 USB console ports
- Dual network connections with builtin Fiber SFP and GbE copper ports
- AAA including LDAP & TACACS+, lock down ports per user & group
- Unified power management of PDU and UPS equipment from 100+ vendors



Specification:



Network
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
RS-232 ports	16
Weight & dimensions
Weight	9.92 lbs (4.5 kg)
Width	17.3" (440 mm)
Height	1.77" (45 mm)
Depth	10" (254 mm)
Power
Power consumption (typical)	40 W
Input voltage	110 - 240 V
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Technical details
Built-in processor	Yes
Antenna connector type	SMA
AC adapter included	Yes
Memory
Internal memory	256 MB
Flash memory	16000 MB
Packaging content
Cables included	AC
Antenna
Antenna connector type	SMA
Antennas quantity	3
Design
Mounting type	Rack mounting
