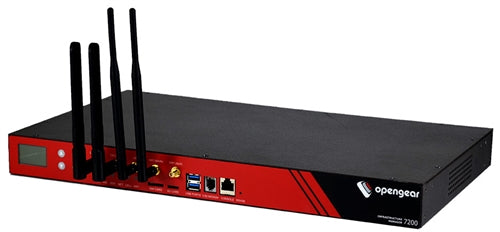

IM7248-2-DDC-LMCT - OPENGEAR 48 SERIAL SOFTWARE SELECTABLE, DUAL DC, 2 GBE ETHERNET OR FIBER SFP, 16GB FLASH,

The Opengear IM7200 is a state of the art infrastructure management solution which streamlines remote management of network, server and power infrastructure in data center and remote environments, ensuring business continuity, secure and reliable access, monitoring teams. The next generation IM7200 combines Smart OOBâ„¢ out-of-band management with Failover to Cellularâ„¢ and delivers proactive monitoring and remediation.

- 8 – 48 port serial console server, manage network and server consoles. Also available in 16 port + 24 USB console ports
- Dual network connections with builtin Fiber SFP and GbE copper ports
- AAA including LDAP & TACACS+, lock down ports per user & group
- Unified power management of PDU and UPS equipment from 100+ vendors



Specification:



Technical details
Rack mounting	Yes
Security
Security algorithms	AES, TKIP, WEP, WPA, WPA-PSK, WPA2-PSK
Authentication method	RSA SecurID, LDAP
Ports & interfaces
Console port	RJ-45
Weight & dimensions
Weight	9.92 lbs (4.5 kg)
Dimensions (WxDxH)	17.3 x 10 x 1.77" (440 x 254 x 45 mm)
Power
Power consumption (typical)	30 W
Number of power supply units	2
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
