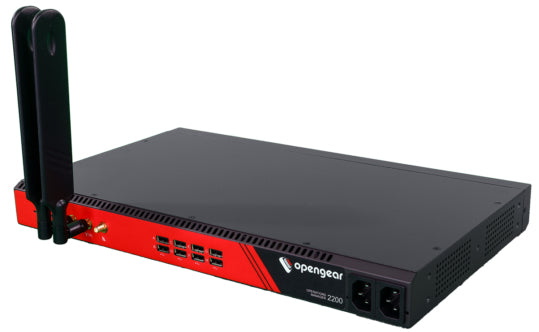

OM2232-DDC-L - OPENGEAR 32 SERIAL, 8G RAM, 64G FLASH, 1GBE

Opengear OM appliances are NetOps Console Servers – Network Management appliances that combine the capabilities of a Smart OOB™ Console Server with the flexibility of NetOps Automation. The OM2200 NetOps Console Server, managed through our Lighthouse software, is configured for data centers and high-density locations. As part of Opengear’s Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.



Specification:



Technical details
Product colour	Black, Red
Rack mounting	Yes
Internal modem	Yes
Ports & interfaces
USB 2.0 ports quantity	8
Serial ports quantity	32
Console port	RJ-45
Processor
Processor frequency	1.4 MHz
Memory
RAM type	DDR3
RAM capacity	8000 MB
Internal memory	64000 MB
Flash memory	16 MB
Weight & dimensions
Weight	7.72 lbs (3.5 kg)
Dimensions (WxDxH)	17.3 x 10.2 x 1.77" (440 x 260 x 45 mm)
Power
Power source type	AC
AC input voltage	100-240 V
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
