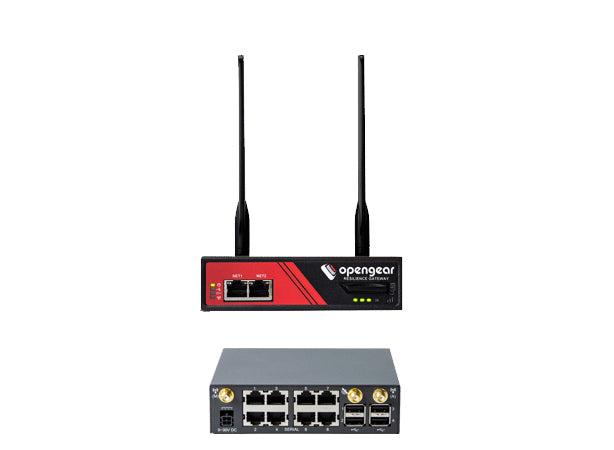

ACM7008-2-LMP - OPENGEAR 8 SERIAL CISCO STRAIGHT PINOUT

For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable. Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem. Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellularâ„¢ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.



Specification:



Design
LED indicators	Yes
Certification	CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Features
Interface	8x RS-232 (RJ45), 4x USB, 2x DIO, 2x HVDO
Built-in processor	Yes
Processor frequency	800 MHz
Number of processors installed	1
Performance
Built-in processor	Yes
Processor frequency	800 MHz
Number of processors installed	1
Internal memory type	DDR
Internal memory	256 MB
Flash memory	4032 MB
Certification	CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Protocols
DHCP server	Yes
Management protocols	HTTPS, SSH, Nagios NSCA, NRPE, SNMP, TFTP & FTP
Network
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Data transfer rate	1000 Gbit/s
Security
Security algorithms	802.1x RADIUS, FIPS 140-2, HTTPS, IPSEC, SNMP, SSH, SSH-2
Firewall security	Yes
Authentication method	RADIUS, LDAP, PAP/CHAP
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Management features
Web-based management	Yes
Syslog	Yes
Power
Output voltage	12 V
Power consumption (typical)	11.5 W
Input voltage	110 - 240 V
Weight & dimensions
Weight	21.2 oz (600 g)
Dimensions (WxDxH)	5.12 x 4.72 x 1.38" (130 x 120 x 35 mm)
Packaging content
Quick installation guide	Yes
Cables included	AC
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Technical details
Built-in processor	Yes
Interface	8x RS-232 (RJ45), 4x USB, 2x DIO, 2x HVDO
Processor frequency	800 MHz
Number of processors installed	1
Electromagnetic compatibility	EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015, ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008, EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004
AC adapter included	Yes
Indication
LED indicators	Yes
Memory
Internal memory type	DDR
Internal memory	256 MB
Flash memory	4032 MB
Certificates
Certification	CE, UL 1950, TUV, C-Tick, RoHS
