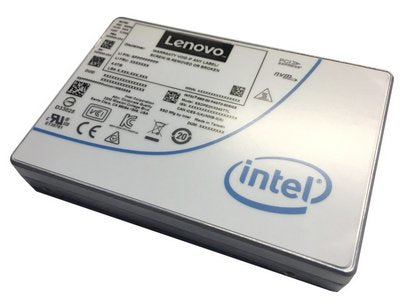

4XB7A10202 - Lenovo U.2 P4510 1.0TB EN NVME SSD

The ThinkSystem Intel P4510 Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 3.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. The Intel P4510 SSDs are based on Intel-developed controller, firmware, and 64-layer TLC Intel 3D NAND technology. Rigorous qualification and compatibility testing by Lenovo ensures a highly reliable SSD.



Specification:



Hard drive
SSD capacity	800 GB
Data transmission
Read speed	1070 MB/s
Write speed	1050 MB/s
Random write (4KB)	170300 IOPS
Random read (4KB)	239500 IOPS
Write latency	26 µs
Read latency	96 µs
Data transfer rate	12 Gbit/s
Endurance
Mean time between failures (MTBF)	2500000 h
Performance
Interface	SAS
Component for	Server/workstation
NVMe	No
Hot-swap	Yes
SSD capacity	800 GB
Read speed	1070 MB/s
Write speed	1050 MB/s
Random write (4KB)	170300 IOPS
Random read (4KB)	239500 IOPS
Mean time between failures (MTBF)	2500000 h
Write latency	26 µs
Read latency	96 µs
Data transfer rate	12 Gbit/s
Design
Component for	Server/workstation
SSD form factor	2.5"
Features
Interface	SAS
Component for	Server/workstation
NVMe	No
Hot-swap	Yes
SSD capacity	800 GB
Read speed	1070 MB/s
Write speed	1050 MB/s
Random write (4KB)	170300 IOPS
Random read (4KB)	239500 IOPS
Mean time between failures (MTBF)	2500000 h
Write latency	26 µs
Read latency	96 µs
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (average)	9 W
Operational conditions
Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1500 G
Operating vibration	3.1 G
Technical details
Interface	SAS
Hot-swap	Yes
Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1500 G
Operating vibration	3.1 G
SSD form factor	2.5"
Weight & dimensions
Width	2.76" (70 mm)
Weight	6.17 oz (175 g)
Height	0.591" (15 mm)
Depth	3.94" (100 mm)
