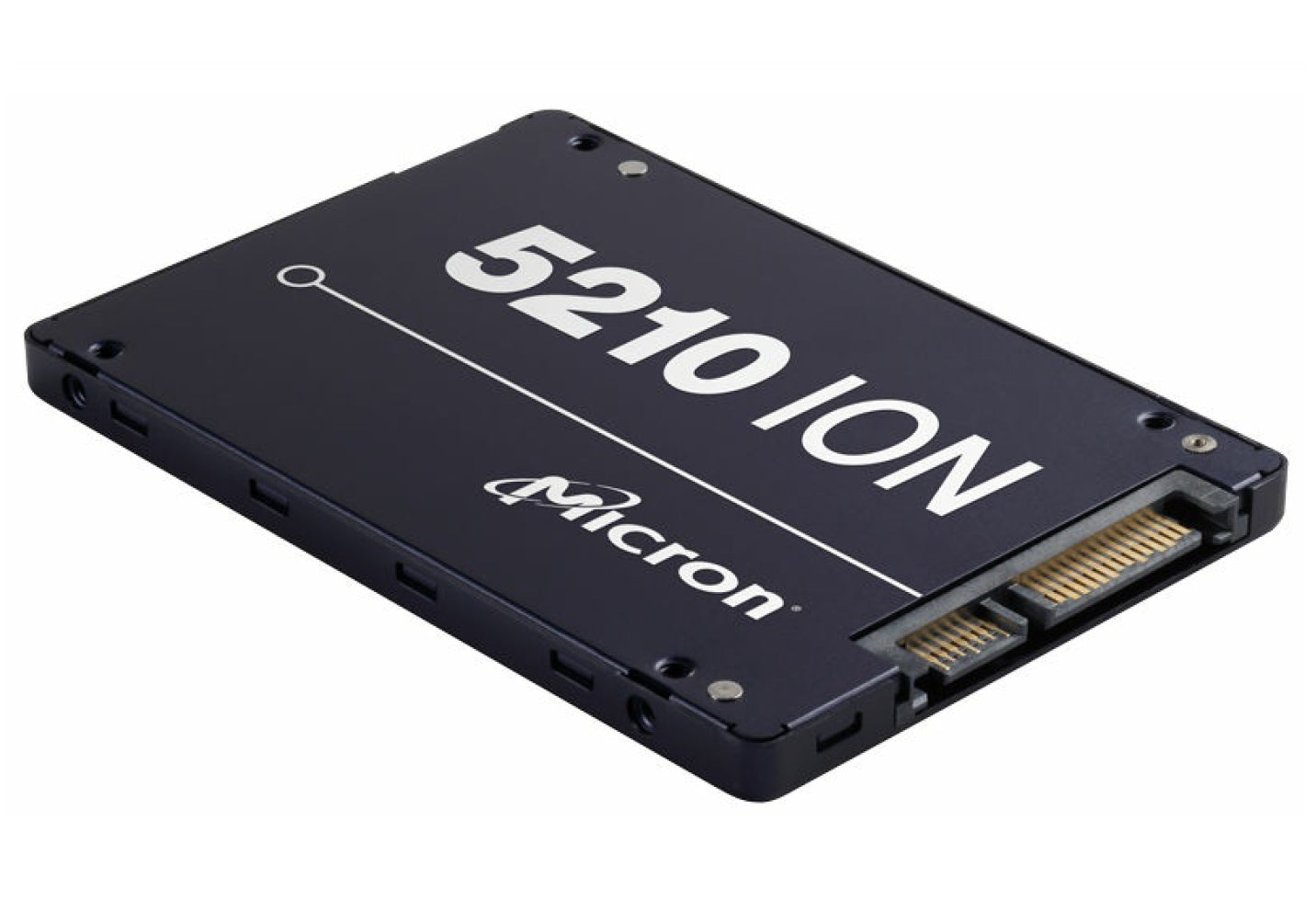

4XB7A38145 - Lenovo 2.5 5210 3.84TB EN SATA QLC SSD

The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data. This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.



Specification:



Hard drive
SSD capacity	240 GB
Memory type	3D TLC NAND
Data transmission
Read speed	560 MB/s
Write speed	280 MB/s
Random write (4KB)	16000 IOPS
Random read (4KB)	90000 IOPS
Write latency	37 µs
Read latency	36 µs
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	2000000 h
Certificates
Certification	FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC
Performance
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	240 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	560 MB/s
Write speed	280 MB/s
Memory type	3D TLC NAND
Random write (4KB)	16000 IOPS
Random read (4KB)	90000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	37 µs
Read latency	36 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Certification	FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC
SSD form factor	2.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	240 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	560 MB/s
Write speed	280 MB/s
Memory type	3D TLC NAND
Random write (4KB)	16000 IOPS
Random read (4KB)	90000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	37 µs
Read latency	36 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Certification	FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (write)	2.4 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120078.7" (3050 m)
Technical details
Interface	Serial ATA III
Hot-swap	Yes
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120078.7" (3050 m)
Hardware encryption	Yes
SSD form factor	2.5"
Weight & dimensions
Package width	6.85" (174 mm)
Package depth	5.24" (133 mm)
Package height	2.48" (63 mm)
Package weight	15.3 oz (434 g)
Width	2.76" (70 mm)
Weight	2.22 oz (63 g)
Height	0.276" (7 mm)
Depth	3.94" (100 mm)
Packaging data
Package width	6.85" (174 mm)
Package depth	5.24" (133 mm)
Package height	2.48" (63 mm)
Package weight	15.3 oz (434 g)
