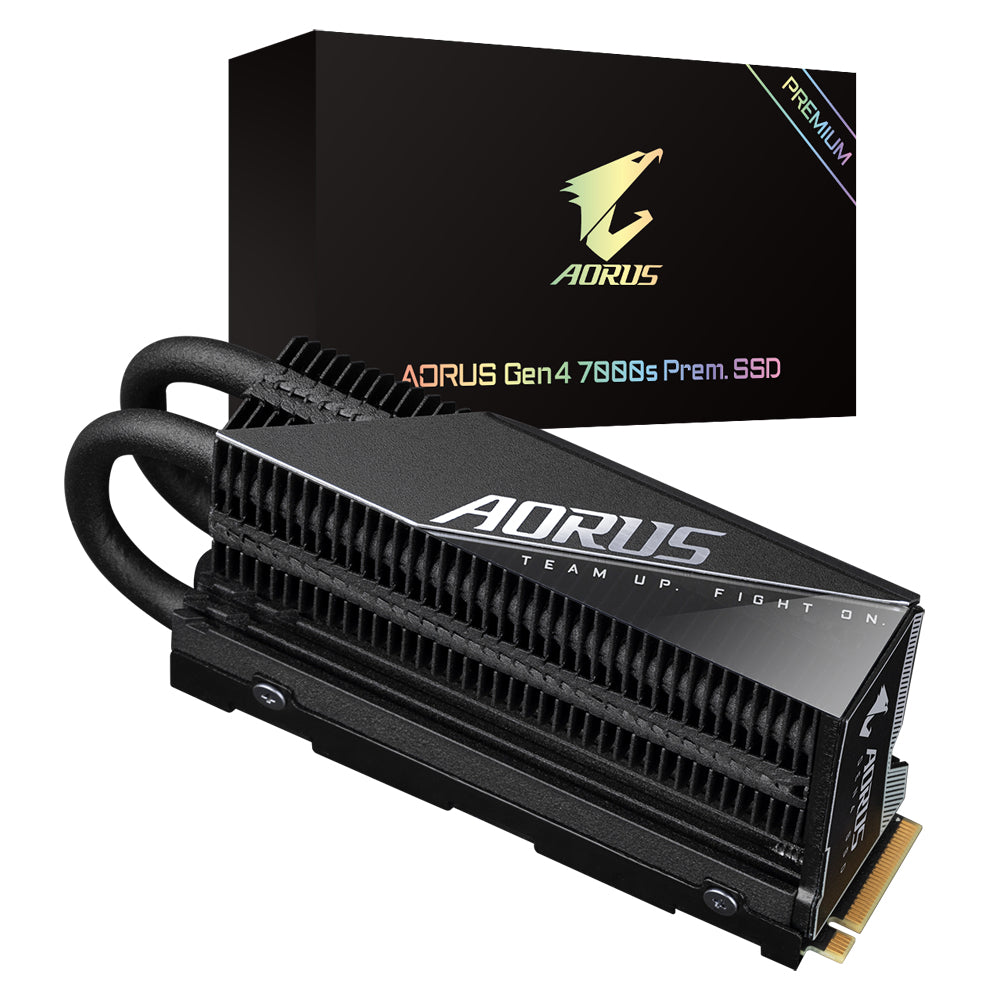

GP-AG70S1TB-P - Gigabyte 1TB AORUS GEN4 7000S PREM SSD

2nd Generation PCIe 4.0x4 Controller The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 caching and meets NVMe 1.4. NAND Flash Selected for High Quality and Performance Selected High Speed 3D TLC NAND Flash (1200MT/s) The 3D TLC NAND Flash(96L) is operating at 1200MT/s, Which is 50 % more than the prevision version that leads to better performance. Xtreme Storage Performance With 2nd generation PCIe 4.0 controller PS5018-E18, AORUS Gen4 7000s Prem. SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential Write. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering. M.2 Thermal Guard XTREME with Nanocarbon Coating M.2 Thermal Guard XTREME is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transferring to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow condition when your personal computer adopts CPU AIO water cooler. Extreme Seq. Read Performance with No Throttling Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance with no throttling. AORUS 7000s Gen4 Prem. SSD comes with the best thermal solution in current market, there is no performance compromised, enjoy the smoother & upgraded storage performance any time. Why is keeping an SSDs at lower temperatures so important? Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Heat Spreaders, the AORUS Gen4 7000s Prem. SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance without throttling. SSD Tool Box The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.



Specification:



Hard drive
SSD capacity	2000 GB
Memory type	3D TLC NAND
Data transmission
Read speed	7000 MB/s
Write speed	6850 MB/s
Random write (4KB)	700000 IOPS
Random read (4KB)	650000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1600000 h
Performance
Interface	PCI Express 4.0
Component for	PC/notebook
NVMe	Yes
NVMe version	1.4
TBW rating	1400
SSD capacity	2000 GB
Security algorithms	256-bit AES
Read speed	7000 MB/s
Write speed	6850 MB/s
Memory type	3D TLC NAND
Random write (4KB)	700000 IOPS
Random read (4KB)	650000 IOPS
Mean time between failures (MTBF)	1600000 h
Hardware encryption	Yes
Design
Component for	PC/notebook
SSD form factor	M.2
Features
Interface	PCI Express 4.0
Component for	PC/notebook
NVMe	Yes
NVMe version	1.4
TBW rating	1400
SSD capacity	2000 GB
Security algorithms	256-bit AES
Read speed	7000 MB/s
Write speed	6850 MB/s
Memory type	3D TLC NAND
Random write (4KB)	700000 IOPS
Random read (4KB)	650000 IOPS
Mean time between failures (MTBF)	1600000 h
Hardware encryption	Yes
SSD form factor	M.2
Harmonized System (HS) code	84717070
Power
Power consumption (idle)	0.03 W
Average power consumption (write)	8.4 W
Average power consumption (read)	7.6 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Hardware encryption	Yes
SSD form factor	M.2
Weight & dimensions
Width	3.17" (80.5 mm)
Height	0.925" (23.5 mm)
Depth	0.449" (11.4 mm)
