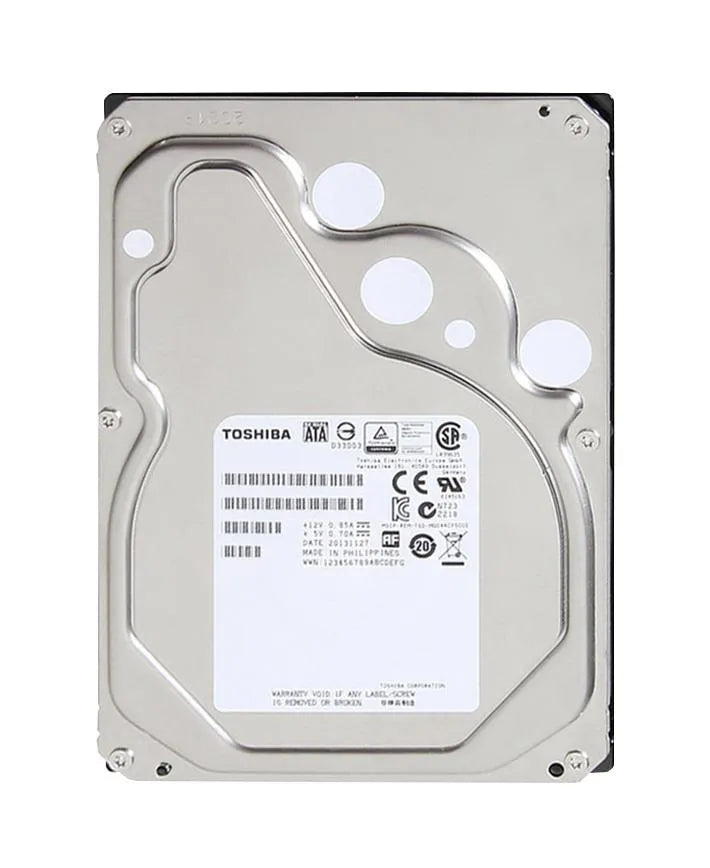

MG04SCA20EN - Toshiba HDEPF04GEA51 2TB 3.5 TOMCAT R SAS 7200 RPM 512N

The up to 6TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm. Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems. While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE). Model options supporting Sanitize Instant Erase (SIE) are also available. This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.



Specification:



Hard drive
Component for	Server/workstation
HDD sustained transfer rate	205 MiB/s
HDD interface transfer rate	12 Gbit/s
Average latency	4.17 ms
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	4000 GB
Features
Type	HDD
Component for	Server/workstation
HDD sustained transfer rate	205 MiB/s
HDD interface transfer rate	12 Gbit/s
Interface	SAS
Average latency	4.17 ms
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	4000 GB
Power
Operating voltage	5 / 12 V
Power consumption (write)	11.8 W
Power consumption (read)	11.8 W
Power consumption (idle)	6.1 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-12007.9 - 120000" (-305 - 3048 m)
Non-operating altitude	-12007.9 - 480000" (-305 - 12192 m)
Technical details
Sustainability certificates	RoHS
Harmonized System (HS) code	84717050
Operating voltage	5 / 12 V
Interface	SAS
Mean time between failures (MTBF)	1400000 h
Weight & dimensions
Width	4" (101.6 mm)
Weight	25.4 oz (720 g)
Height	5.79" (147 mm)
Depth	1.03" (26.1 mm)
Other features
Operating voltage	5 / 12 V
Interface	SAS
