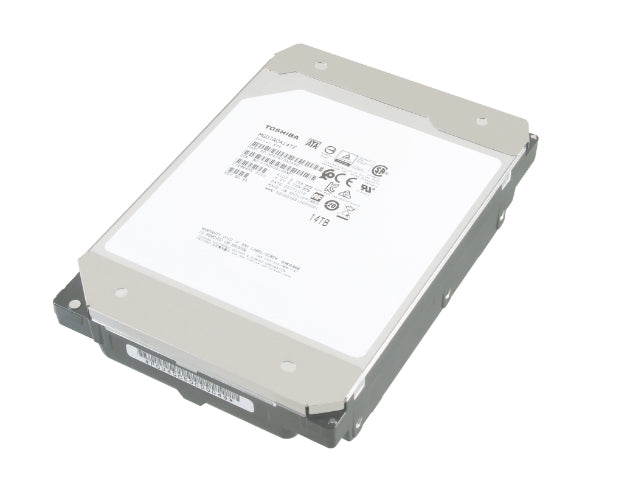

MG07ACA14TA - Toshiba 14TB 3.5 SATA 7200RPM 4KN

Using the world’s first 9-disk Helium-sealed design, the MG07ACA Enterprise Capacity SATA HDD provides up to 14TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside the 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO objectives for cloud-scale and software-defined data center infrastructure. The massive 14TB and 12TB model capacity is delivered using proven CMR/PMR recording technologies providing optimum compatibility and data reliability. Equipped with SATA 6.0 Gbit/s interface, the MG07ACA models integrate easily into standard 3.5-inch SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.



Specification:



Hard drive
HDD sustained transfer rate	248 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	550 TB/year
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	14000 GB
Features
Type	HDD
HDD sustained transfer rate	248 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	550 TB/year
Interface	Serial ATA
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	14000 GB
Storage drive buffer size	256 MB
Power
Operating voltage	5 / 12 V
Power consumption (typical)	4.22 W
Power consumption (read)	7.8 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-12007.9 - 120000" (-305 - 3048 m)
Non-operating altitude	-12007.9 - 480000" (-305 - 12192 m)
Operating vibration	0.75 G
Operating shock	70 G
Non-operating vibration	3 G
Non-operating shock	250 G
Technical details
Harmonized System (HS) code	84717050
Operating voltage	5 / 12 V
Interface	Serial ATA
Mean time between failures (MTBF)	2500000 h
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	25.4 oz (720 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Other features
Operating voltage	5 / 12 V
Interface	Serial ATA
