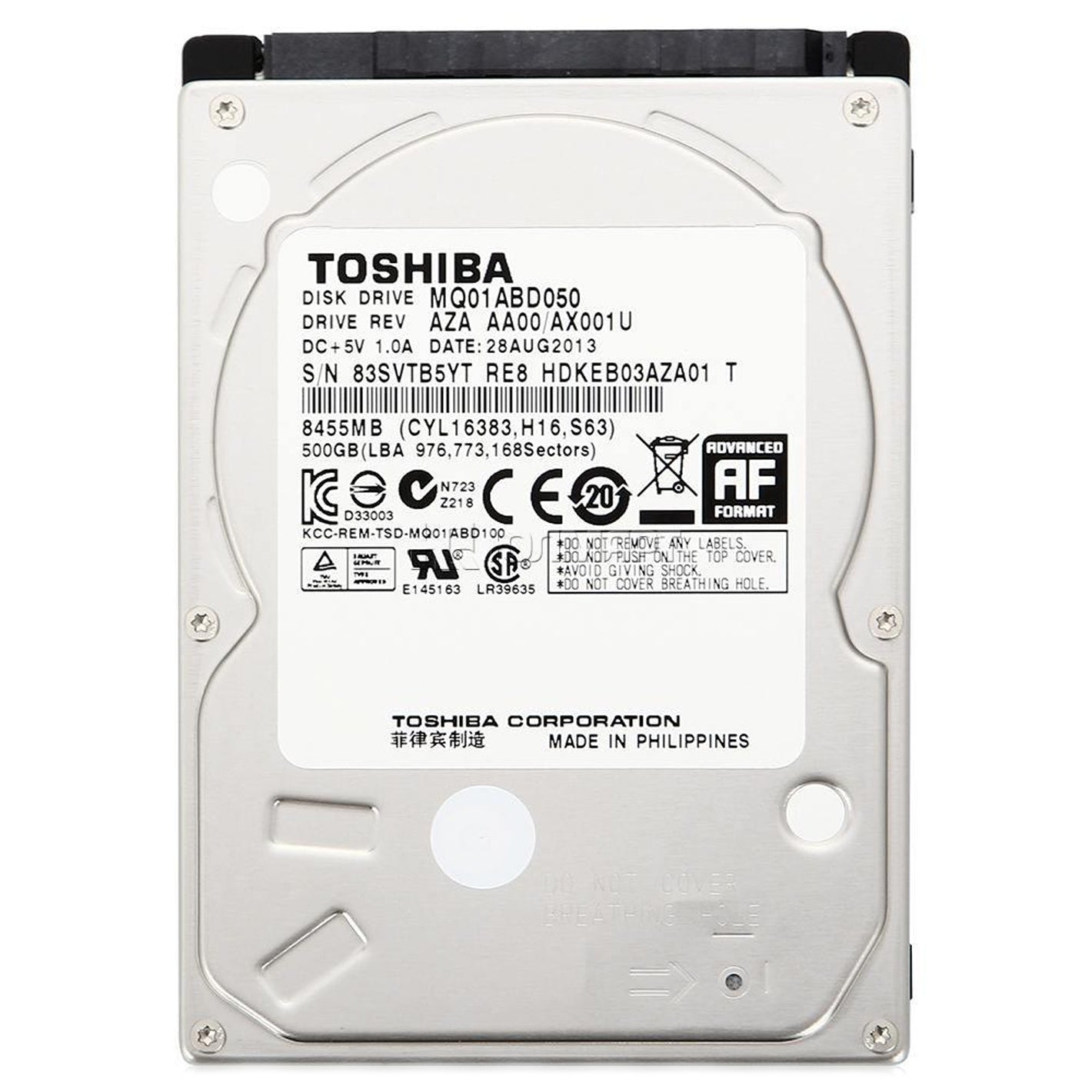

MQ01ABD050 - Toshiba 500GB 5.4K SATA 2.5IN LAPTOP

Toshiba Storage Device Division offers a line of 5,400 RPM 2.5-inch HDDs in a new slim design optimized for industry-leading storage applications. The latest HDD series, MQ01ABDxxx, provides a wide capacity range from 250 GB to 1TB in a 9.5-millimeter-high design with only maximum 2 platters. The advanced MQ01ABDxxx targets markets such as portable multimedia and gaming notebooks, mobile workstations and other capacity-hungry applications like external HDDs. In addition, the drives also feature very good power efficiency value of 0.00055 for the 1TB model. Due to the “Silent-Seek” technology featured in these drives, the HDDs are extremely quiet: Ultra-silent single-platter drives boast acoustic specifications of 19dBA (seek) and 17dBA (idle) making them almost indistinguishable to the human hear. With its compact size and best-in class specifications, the SATA MQ01ABDxxx series is the perfect choice for use in devices where a combination of sleek form factor and high capacity capabilities are essential. As with all Toshiba HDDs, the complete series is halogen-free and RoHS compatible, therefore, exceptionally environmentally friendly.



Specification:



Hard drive
Data transfer rate	3 Gbit/s
Track to track seek time	2 ms
Bytes per sector	512
HDD number of heads	4
SMART technology	Yes
Certification	RoHS
HDD speed	5400 RPM
HDD size	2.5"
HDD capacity	640 GB
Sound emission
Acoustic pressure emissions	24 dB
Certificates
Certification	RoHS
Features
Interface	Serial ATA
Track to track seek time	2 ms
Bytes per sector	512
HDD number of heads	4
SMART technology	Yes
Certification	RoHS
HDD speed	5400 RPM
HDD size	2.5"
HDD capacity	640 GB
Storage drive buffer size	8 MB
Average seek time	12 ms
Power
Operating voltage	5 V
Power consumption (typical)	4.5 W
Power consumption (standby)	0.18 W
Power consumption (write)	1.5 W
Power consumption (read)	1.5 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating altitude	-11811 - 118110.2" (-300 - 3000 m)
Non-operating altitude	-11811 - 472440.9" (-300 - 12000 m)
Operating vibration	1 G
Operating shock	400 G
Non-operating vibration	5 G
Non-operating shock	900 G
Technical details
Operating voltage	5 V
Interface	Serial ATA
Seek time	22 ms
Product colour	Silver
Internal	Yes
Weight & dimensions
Width	2.75" (69.8 mm)
Weight	4.13 oz (117 g)
Height	0.374" (9.5 mm)
Depth	3.94" (100 mm)
Other features
Operating voltage	5 V
Interface	Serial ATA
Seek time	22 ms
Product colour	Silver
Internal	Yes
Data transfer rate	3 Gbit/s
Acoustic pressure emissions	24 dB
