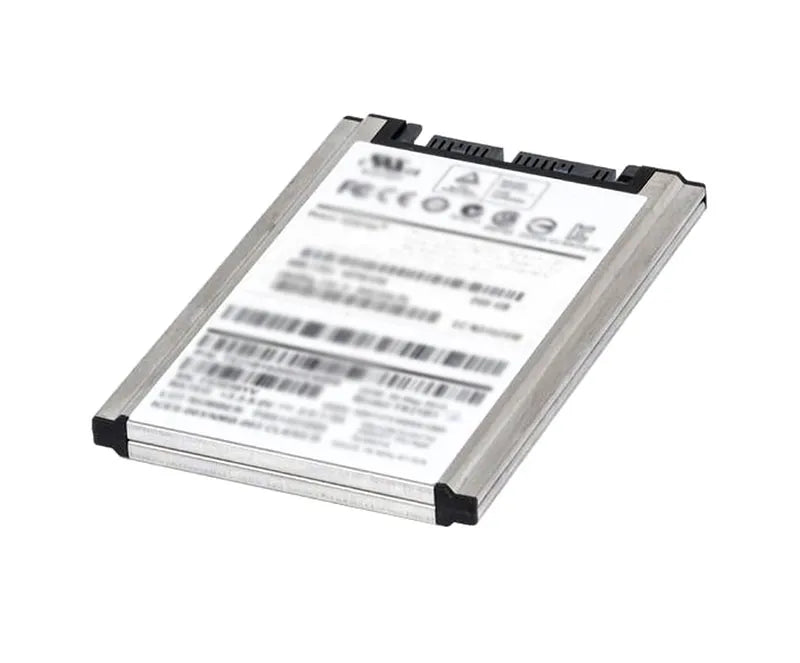

SSDSA1NW080G301 - Intel 80 GB INTERNAL SOLID STATE

The next-generation Intel® Solid-State Drive (Intel® SSD) 320 Series offers better performance, built-in data protection features, larger capacities and more value for your money. Created with 25-nanometer Intel® NAND Flash Memory, the Intel® SSD 320 Series accelerates PC responsiveness. With sequential read performance of up to 270 megabytes per second (MB/s), your PC will handle demanding applications and multitasking needs. Great for consumers, corporate IT or PC enthusiasts, the Intel® SSD 320 Series offers a substantial performance boost over conventional mechanical hard disk drives. Data protection features. The Intel® SSD 320 Series helps protect your data from external threats and internal system issues with pre-configured Advanced Encryption Standard,1 keeping your personal data more secure. To reduce potential data loss, the Intel® SSD 320 Series also detects and protects from unexpected system power loss by saving all cached data in the process of being written before shutting down. The Intel® SSD 320 Series also offers an array of surplus NAND flash memory should the controller encounter a faulty NAND array—the drive automatically reconfigures itself to reduce potential data loss. Flexibility to meet your needs. Available in two form factors (1.8 and 2.5 inch) and a wide range of capacities, the Intel® SSD 320 Series provides you with the flexibility to choose an SSD that best fits your needs and budget. Whether you choose the 40GB, 80GB, 120GB, 160GB, 300GB, or 600GB capacity, the Intel® SSD 320 Series delivers the highly responsive PC experience you need.



Specification:



Hard drive
SSD capacity	40 GB
Memory type	MLC
Lithography	25 nm
Internal	No
Data transmission
Read speed	200 MB/s
Write speed	45 MB/s
Random write (4KB)	3700 IOPS
Random read (4KB)	30000 IOPS
Random write (100% span)	300 IOPS
Random read (100% span)	30000 IOPS
Write latency	90 µs
Read latency	75 µs
Data transfer rate	3 Gbit/s
Design
Internal	No
Product colour	Silver
SSD form factor	2.5"
Market segment	Mobile
Product family	Legacy consumer SSD
Product series	Intel 320
Product codename	Postville Refresh
Security
Security algorithms	128-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Mean time between failures (MTBF)	1200000 h
Performance
Interface	Serial ATA III
SSD ARK ID	56568
SSD capacity	40 GB
Security algorithms	128-bit AES
Read speed	200 MB/s
Write speed	45 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Random write (4KB)	3700 IOPS
Random read (4KB)	30000 IOPS
Random write (100% span)	300 IOPS
Random read (100% span)	30000 IOPS
Mean time between failures (MTBF)	1200000 h
Lithography	25 nm
Write latency	90 µs
Read latency	75 µs
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	3 Gbit/s
Compatible products	Intel S5520UR, S5500HCV, S3420GPLX, S2600JFQ, S4600LH2, S1600JP4, R1208GL4DS, SR1625URR, H2312JFQJR, P4308IP4LHJC, R1304BB4GS9
Features
Interface	Serial ATA III
SSD ARK ID	56568
SSD capacity	40 GB
Security algorithms	128-bit AES
Read speed	200 MB/s
Write speed	45 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Random write (4KB)	3700 IOPS
Random read (4KB)	30000 IOPS
Random write (100% span)	300 IOPS
Random read (100% span)	30000 IOPS
Mean time between failures (MTBF)	1200000 h
Lithography	25 nm
Write latency	90 µs
Read latency	75 µs
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	3 Gbit/s
SSD form factor	2.5"
Market segment	Mobile
Compatible products	Intel S5520UR, S5500HCV, S3420GPLX, S2600JFQ, S4600LH2, S1600JP4, R1208GL4DS, SR1625URR, H2312JFQJR, P4308IP4LHJC, R1304BB4GS9
Power
Power consumption (write)	2 W
Power consumption (standby)	0.7 W
Power consumption (read)	2 W
Brand-specific features
Product family	Legacy consumer SSD
Product series	Intel 320
Product codename	Postville Refresh
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Non-operating shock	1500 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Non-operating shock	1500 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Processor lithography	25 nm
Enhanced Power Loss Data Protection technology	Yes
Product colour	Silver
SSD form factor	2.5"
Market segment	Mobile
Status	Discontinued
SSD weight	up to 88 ± 2 grams
SSD shock	1,500 G/.5 msec
SSD power consumption (idle)	100 mw (DIPM), .7 W (Non-DIPM)
SSD power consumption (active)	150 mw (MobileMark 2007 Workload), 2.0 W (64K Sequential Write)
SSD components	Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Sequential writing speed	45 MB/s
Sequential reading	200 MB/s
Random write (8GB span)	3700 IOPS
Product name	Intel SSD 320 Series (40GB, 2.5in SATA 3Gb/s, 25nm, MLC)
Launch date	Q1'11
Drive capacity	40 GB
Born on date	Q1'11
Random read (8GB span)	30000 IOPS
Last change	63903513
Weight & dimensions
Package type	Box
Weight	3.1 oz (88 g)
Packaging data
Package type	Box
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Processor lithography	25 nm
Product colour	Silver
Internal	No
Status	Discontinued
SSD weight	up to 88 ± 2 grams
SSD shock	1,500 G/.5 msec
SSD power consumption (idle)	100 mw (DIPM), .7 W (Non-DIPM)
SSD power consumption (active)	150 mw (MobileMark 2007 Workload), 2.0 W (64K Sequential Write)
SSD components	Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Sequential writing speed	45 MB/s
Sequential reading	200 MB/s
Random write (8GB span)	3700 IOPS
Product name	Intel SSD 320 Series (40GB, 2.5in SATA 3Gb/s, 25nm, MLC)
Launch date	Q1'11
Drive capacity	40 GB
Born on date	Q1'11
Random read (8GB span)	30000 IOPS
Last change	63903513
Product family	Legacy consumer SSD
Product series	Intel 320
Product codename	Postville Refresh
Connectivity technology	Wired
