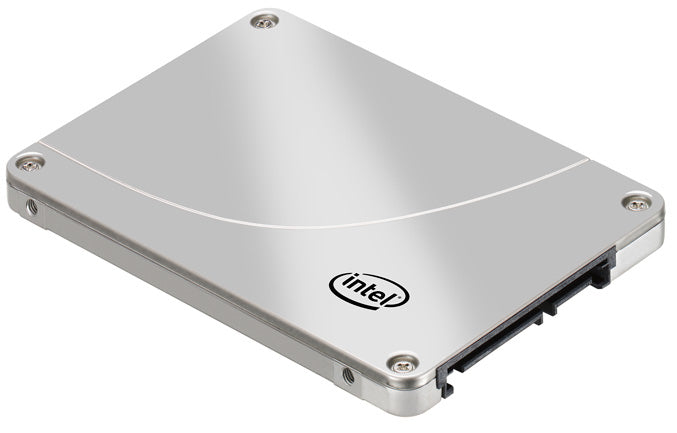

SSDSA2CW080G310 - Intel 80GB SATA SSD 3G 25NM 2.5

Smart meets fast. The Intel® Solid-State Drive 320 Series is the hard drive alternative that offers better performance and protects your data. Shift your PC’s performance into high gear. Intel® Solid-State Drives (Intel® SSDs) just got better. The next generation Intel SSD 320 Series offers built-in data protection features, better performance, larger capacities and more value for your money. Built with 25 nanometer (nm) compute-quality Intel® NAND Flash Memory, the Intel SSD 320 Series accelerates PC performance where it matters most. With random read performance up to 39,500 Input/Output Operations per Second (IOPS)1 and sequential read performance of up to 270 megabytes per second (MB/s), your PC will blaze through the most demanding applications and will handle intense multi-tasking needs. Couple that performance with random writes up to 23,000 IOPS and sequential writes up to 220MB/s to unleash your system. Superior built-in data protection features. The new Intel SSD 320 Series contains built-in features to protect your data from external threats and internal system snags. The Intel SSD 320 Series comes pre-configured with Advanced Encryption Standard (AES) 128 bit encryption capabilities2. In the event of theft or loss of your computer, you have the peace of mind that your personal data is secured by an advanced encryption technologies. Additionally, two new data protection features guard your data from internal system mishaps. To reduce potential data loss, the Intel SSD 320 Series detects and protects from an unexpected system power loss. The drive saves all cached data in the process of being written before shutting down, thereby minimizing potential data loss. The Intel SSD 320 Series also improves reliability by providing an array of surplus NAND flash. If the controller encounters a faulty NAND array, the Intel SSD 320 Series automatically reconfigures itself to reduce the prospect of data loss. Capacities to fit your needs. Available in a wide range of capacities, the Intel SSD 320 Series provides you with the flexibility to choose an SSD that best fits your need and budget. Whether you choose the 40 gigabytes (GB), 80GB, 120GB, 160GB, 300GB or 600GB capacity, the Intel SSD 320 Series delivers the highly responsive PC experience you desire. SSD Management Tool Suite. Install and manage the Intel SSD 320 Series with two FREE Intel utilities—the Intel® Data Migration Software and the Intel® SSD Toolbox with Intel® SSD Optimizer. - Intel Data Migration Software The Intel Data Migration Software helps you install an Intel SSD in an existing PC system. With minimal steps, this useful tool replicates the operating system and all files from a PC’s hard drive or SSD to any Intel SSD. The Intel Data Migration Software supports Microsoft Windows* 7, Vista*, and XP. Download this utility, free of charge, at www.intel.com/go/ssdinstallation. - Intel SSD Toolbox with Intel SSD Optimizer The Intel SSD Toolbox with Intel SSD Optimizer provides a powerful set of management, information, and diagnostic tools to maintain the health of your Intel SSD and optimize performance to "fresh-out-of-the-box" levels. The toolbox offers options to securely erase your SSD or access the System Configuration Tuner that helps your system take full advantage of your Intel SSD’s performance. Download the toolbox, free of charge, at www.intel.com/go/ssdtoolbox. World-Class reliability – better by design. As the third generation of the SSD that changed the industry with its overall performance, value and reliability, the Intel SSD 320 Series draws from decades of memory engineering experience, and new industry leading, compute-quality Intel 25nm NAND Flash memory manufacturing processes. The Intel SSD 320 Series features an advanced architecture that employs 10 parallel NAND flash channels3 equipped with multi-level cell NAND flash memory. With powerful Native Command Queuing that enables up to 32 concurrent operations; the Intel SSD 320 Series drastically outperform traditional hard disk drives. The Intel SSD 320 Series also features low write amplification and a unique wear-leveling design for higher reliability; meaning Intel SSDs not only perform better, they last longer. Thrust your PC’s performance into overdrive with an Intel SSD 320 Series! Solid-State Computing Starts with Intel Inside®.



Specification:



Hard drive
SSD capacity	160 GB
Memory type	MLC
Lithography	25 nm
Internal	Yes
Data transmission
Read speed	270 MB/s
Write speed	165 MB/s
Random write (4KB)	21000 IOPS
Random read (4KB)	39000 IOPS
Random write (100% span)	600 IOPS
Random read (100% span)	39000 IOPS
Write latency	90 µs
Read latency	75 µs
Data transfer rate	3 Gbit/s
Design
Internal	Yes
Product colour	Silver
SSD form factor	2.5"
Market segment	Mobile
Product family	Legacy consumer SSD
Product series	Intel 320
Product codename	Postville Refresh
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Mean time between failures (MTBF)	1200000 h
Performance
Interface	Serial ATA
SSD ARK ID	56565
SSD capacity	160 GB
Read speed	270 MB/s
Write speed	165 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Random write (4KB)	21000 IOPS
Random read (4KB)	39000 IOPS
Random write (100% span)	600 IOPS
Random read (100% span)	39000 IOPS
Mean time between failures (MTBF)	1200000 h
Lithography	25 nm
Write latency	90 µs
Read latency	75 µs
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	3 Gbit/s
Features
Interface	Serial ATA
SSD ARK ID	56565
SSD capacity	160 GB
Read speed	270 MB/s
Write speed	165 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Random write (4KB)	21000 IOPS
Random read (4KB)	39000 IOPS
Random write (100% span)	600 IOPS
Random read (100% span)	39000 IOPS
Mean time between failures (MTBF)	1200000 h
Lithography	25 nm
Write latency	90 µs
Read latency	75 µs
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	3 Gbit/s
SSD form factor	2.5"
Market segment	Mobile
Power
Power consumption (write)	3 W
Power consumption (standby)	0.7 W
Brand-specific features
Product family	Legacy consumer SSD
Product series	Intel 320
Product codename	Postville Refresh
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Technical details
Interface	Serial ATA
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Processor lithography	25 nm
Enhanced Power Loss Data Protection technology	Yes
Product colour	Silver
SSD form factor	2.5"
Market segment	Mobile
Status	Discontinued
SSD shock	1,500 G/.5 msec
SSD power consumption (idle)	100 mw (DIPM), .7 W (Non-DIPM)
SSD power consumption (active)	150 mw (MobileMark 2007 Workload), 3.0 W (64K Sequential Write)
SSD components	Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Sequential writing speed	165 MB/s
Sequential reading	270 MB/s
Random write (8GB span)	21000 IOPS
Launch date	Q1'11
Drive capacity	160 GB
Random read (8GB span)	39000 IOPS
Last change	63903513
Weight & dimensions
Weight	3.1 oz (88 g)
Height	0.374" (9.5 mm)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^16 bits read
Processor lithography	25 nm
Product colour	Silver
Internal	Yes
Status	Discontinued
SSD shock	1,500 G/.5 msec
SSD power consumption (idle)	100 mw (DIPM), .7 W (Non-DIPM)
SSD power consumption (active)	150 mw (MobileMark 2007 Workload), 3.0 W (64K Sequential Write)
SSD components	Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Sequential writing speed	165 MB/s
Sequential reading	270 MB/s
Random write (8GB span)	21000 IOPS
Launch date	Q1'11
Drive capacity	160 GB
Random read (8GB span)	39000 IOPS
Last change	63903513
Product family	Legacy consumer SSD
Product series	Intel 320
Product codename	Postville Refresh
Connectivity technology	Wired
