Description

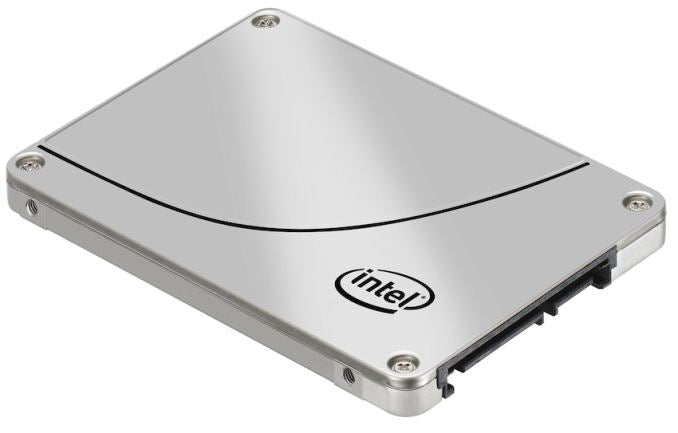

Cost-Effective Performance and Reliability Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel® Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics. The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time. Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.
Specification:
Hard drive | |
---|---|
SSD capacity | 120 GB |
Memory type | MLC |
Lithography | 20 nm |
Performance | |
Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Intel High Endurance Technology (HET) | No |
Interface | Serial ATA III |
SSD ARK ID | 75678 |
SSD usage tag | Data center |
TBW rating | 70 |
End-to-End Data Protection | Yes |
SSD capacity | 120 GB |
Security algorithms | 256-bit AES |
S.M.A.R.T. support | Yes |
Read speed | 445 MB/s |
TRIM support | Yes |
Write speed | 135 MB/s |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
SSD temperature monitoring | Yes |
Random write (100% span) | 4600 IOPS |
Random read (100% span) | 75000 IOPS |
Native Command Queuing (NCQ) | Yes |
Mean time between failures (MTBF) | 2000000 h |
Lithography | 20 nm |
Write latency | 65 µs |
Read latency | 50 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transfer rate | 6 Gbit/s |
Data transmission | |
Read speed | 445 MB/s |
Write speed | 135 MB/s |
Random write (100% span) | 4600 IOPS |
Random read (100% span) | 75000 IOPS |
Write latency | 65 µs |
Read latency | 50 µs |
Data transfer rate | 6 Gbit/s |
Security | |
Security algorithms | 256-bit AES |
Endurance | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Mean time between failures (MTBF) | 2000000 h |
Certificates | |
Certification | UL, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO |
Design | |
Product colour | Silver |
Certification | UL, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO |
SSD form factor | 2.5" |
Market segment | Server |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
System requirements | |
Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Features | |
Interface | Serial ATA III |
SSD ARK ID | 75678 |
SSD usage tag | Data center |
TBW rating | 70 |
End-to-End Data Protection | Yes |
SSD capacity | 120 GB |
Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Security algorithms | 256-bit AES |
S.M.A.R.T. support | Yes |
Read speed | 445 MB/s |
TRIM support | Yes |
Write speed | 135 MB/s |
Linux operating systems supported | Yes |
Memory type | MLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
SSD temperature monitoring | Yes |
Random write (100% span) | 4600 IOPS |
Random read (100% span) | 75000 IOPS |
Native Command Queuing (NCQ) | Yes |
Mean time between failures (MTBF) | 2000000 h |
Lithography | 20 nm |
Write latency | 65 µs |
Read latency | 50 µs |
Enhanced Power Loss Data Protection technology | Yes |
Data transfer rate | 6 Gbit/s |
Certification | UL, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO |
SSD form factor | 2.5" |
Market segment | Server |
Power | |
Power consumption (idle) | 0.8 W |
Brand-specific features | |
Intel High Endurance Technology (HET) | No |
Intel Smart Response Technology version | 0.00 |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -55 - 95 °C |
Operating shock | 1000 G |
Non-operating shock | 1000 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
Maximum operating altitude | 120000" (3048 m) |
Maximum non-operating altitude | 480000" (12192 m) |
Technical details | |
Interface | Serial ATA III |
S.M.A.R.T. support | Yes |
Operating temperature (T-T) | 0 - 70 °C |
TRIM support | Yes |
Storage temperature (T-T) | -55 - 95 °C |
Operating shock | 1000 G |
Non-operating shock | 1000 G |
Operating vibration | 2.17 G |
Non-operating vibration | 3.13 G |
SSD temperature monitoring | Yes |
Processor lithography | 20 nm |
Native Command Queuing (NCQ) | Yes |
Maximum operating altitude | 120000" (3048 m) |
Maximum non-operating altitude | 480000" (12192 m) |
Intel High Endurance Technology (HET) | No |
Enhanced Power Loss Data Protection technology | Yes |
Product colour | Silver |
Power consumption (active) | 2.3 W |
SSD form factor | 2.5" |
Market segment | Server |
Intel Smart Response Technology version | 0.00 |
Sustainability certificates | RoHS |
Status | Launched |
SSD weight | 2.47 oz (70 g) |
SSD shock | 1,000 G (Max) at 0.5 msec |
SSD power consumption (idle) | 0.8W |
SSD power consumption (active) | 2.3W |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 70 TBW |
Sequential writing speed | 135 MB/s |
Sequential reading | 445 MB/s |
Product name | Intel SSD DC S3500 Series (120GB, 2.5in SATA 6Gb/s, 20nm, MLC) |
Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
Launch date | 2013-06-11T00:00:00 |
Drive capacity | 120 GB |
Born on date | Q2'13 |
Software | |
Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Weight & dimensions | |
Weight | 2.47 oz (70 g) |
Other features | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Processor lithography | 20 nm |
Product colour | Silver |
Power consumption (active) | 2.3 W |
Status | Launched |
SSD weight | 2.47 oz (70 g) |
SSD shock | 1,000 G (Max) at 0.5 msec |
SSD power consumption (idle) | 0.8W |
SSD power consumption (active) | 2.3W |
SSD hardware encryption | AES 256 bit |
SSD endurance rating | 70 TBW |
Sequential writing speed | 135 MB/s |
Sequential reading | 445 MB/s |
Product name | Intel SSD DC S3500 Series (120GB, 2.5in SATA 6Gb/s, 20nm, MLC) |
Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html |
Launch date | 2013-06-11T00:00:00 |
Drive capacity | 120 GB |
Born on date | Q2'13 |
Product family | Data center SSD |
Product series | Intel DC S3500 |
Product codename | Wolfsville |
