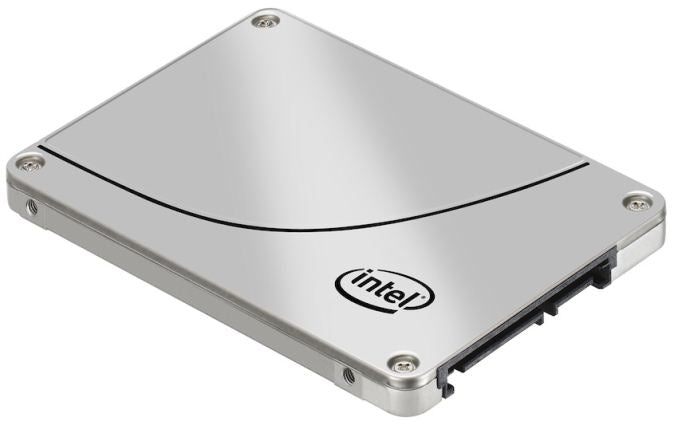

SSDSC2BB120G601 - Intel DC S3510 120GB SATA3 SSD 2.5

Cost-Effective Performance and Reliability Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel® Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics. The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time. Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.



Specification:



Hard drive
SSD capacity	150 GB
Memory type	MLC
Lithography	16 nm
Internal	Yes
Performance
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel High Endurance Technology (HET)	No
Interface	Serial ATA III
SSD ARK ID	94037
SSD usage tag	Data center
TBW rating	412
End-to-End Data Protection	Yes
SSD capacity	150 GB
Security algorithms	256-bit AES
Read speed	180 MB/s
Write speed	165 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD temperature monitoring	Yes
Random write (100% span)	31000 IOPS
Random read (100% span)	43000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	16 nm
Write latency	35 µs
Read latency	30 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	6 Gbit/s
Data transmission
Read speed	180 MB/s
Write speed	165 MB/s
Random write (100% span)	31000 IOPS
Random read (100% span)	43000 IOPS
Write latency	35 µs
Read latency	30 µs
Data transfer rate	6 Gbit/s
Design
Internal	Yes
Product colour	Silver
SSD form factor	2.5"
Market segment	Server
Product family	Data center SSD
Product series	Intel® SSD DC S3520 Series
Product codename	Downieville
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Features
Interface	Serial ATA III
SSD ARK ID	94037
SSD usage tag	Data center
TBW rating	412
End-to-End Data Protection	Yes
SSD capacity	150 GB
Security algorithms	256-bit AES
Read speed	180 MB/s
Write speed	165 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD temperature monitoring	Yes
Random write (100% span)	31000 IOPS
Random read (100% span)	43000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	16 nm
Write latency	35 µs
Read latency	30 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
Market segment	Server
Harmonized System (HS) code	84717070
Power
Power consumption (average)	2.2 W
Power consumption (idle)	0.53 W
Brand-specific features
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel High Endurance Technology (HET)	No
Intel Smart Response Technology version	0.00
Product family	Data center SSD
Product series	Intel® SSD DC S3520 Series
Product codename	Downieville
Intel Rapid Start Technology version	0.00
Intel® Remote Secure Erase	No
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Intel High Endurance Technology (HET)	No
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Product colour	Silver
SSD form factor	2.5"
Market segment	Server
Intel Smart Response Technology version	0.00
Intel Rapid Start Technology version	0.00
Status	Discontinued
SSD weight	2.12 oz (60 g)
SSD shock	1000G/0.5ms
SSD power consumption (idle)	530 mW
SSD power consumption (active)	2.2 W
SSD hardware encryption	AES 256 bit
SSD endurance rating	412 TBW
Sequential writing speed	165 MB/s
Sequential reading	180 MB/s
Random write (8GB span)	31000 IOPS
Launch date	Q3'16
Drive capacity	150 GB
Random read (8GB span)	43000 IOPS
Last change	63903513
Remote Secure Erase (RSE) technology version	0.00
Weight & dimensions
Weight	2.12 oz (60 g)
Height	0.276" (7 mm)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Product colour	Silver
Internal	Yes
Status	Discontinued
SSD weight	2.12 oz (60 g)
SSD shock	1000G/0.5ms
SSD power consumption (idle)	530 mW
SSD power consumption (active)	2.2 W
SSD hardware encryption	AES 256 bit
SSD endurance rating	412 TBW
Sequential writing speed	165 MB/s
Sequential reading	180 MB/s
Random write (8GB span)	31000 IOPS
Launch date	Q3'16
Drive capacity	150 GB
Random read (8GB span)	43000 IOPS
Last change	63903513
Product family	Data center SSD
Product series	Intel® SSD DC S3520 Series
Product codename	Downieville
Intel Rapid Start Technology version	0.00
Remote Secure Erase (RSE) technology version	0.00
