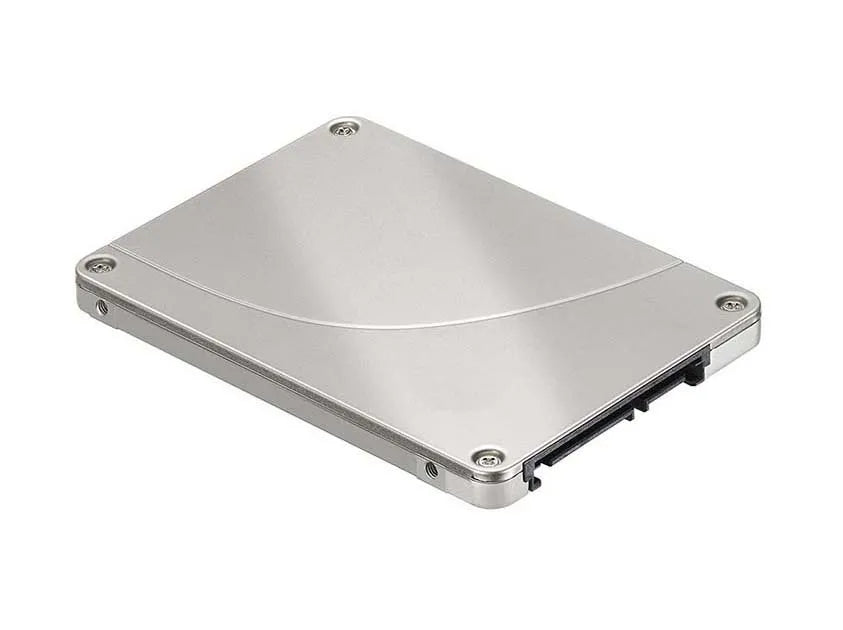

SSDSC2BB480G601 - Intel 480GB SATA SSD 6G 16NM MLC 2.5

Cost-Effective Performance and Reliability Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics. The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time. Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.



Specification:



Hard drive
SSD capacity	800 GB
Memory type	MLC
Lithography	20 nm
Internal	Yes
Performance
Intel Smart Response Technology	No
Intel Rapid Start Technology	No
Windows operating systems supported	Yes
Intel High Endurance Technology (HET)	No
Interface	Serial ATA III
SSD ARK ID	75685
SSD usage tag	Data center
TBW rating	450
End-to-End Data Protection	Yes
SSD capacity	800 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	500 MB/s
Write speed	450 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	11500 IOPS
Random read (4KB)	75000 IOPS
SSD temperature monitoring	Yes
Random write (100% span)	11500 IOPS
Random read (100% span)	75000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	20 nm
Write latency	65 µs
Read latency	50 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	6 Gbit/s
Data transmission
Read speed	500 MB/s
Write speed	450 MB/s
Random write (4KB)	11500 IOPS
Random read (4KB)	75000 IOPS
Random write (100% span)	11500 IOPS
Random read (100% span)	75000 IOPS
Write latency	65 µs
Read latency	50 µs
Data transfer rate	6 Gbit/s
Design
Internal	Yes
Product colour	Silver
SSD form factor	2.5"
Market segment	Server
Product family	Data center SSD
Product series	Intel DC S3500
Product codename	Wolfsville
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
System requirements
Windows operating systems supported	Yes
Features
Interface	Serial ATA III
SSD ARK ID	75685
SSD usage tag	Data center
TBW rating	450
End-to-End Data Protection	Yes
SSD capacity	800 GB
Windows operating systems supported	Yes
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	500 MB/s
Write speed	450 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	11500 IOPS
Random read (4KB)	75000 IOPS
SSD temperature monitoring	Yes
Random write (100% span)	11500 IOPS
Random read (100% span)	75000 IOPS
Mean time between failures (MTBF)	2000000 h
Lithography	20 nm
Write latency	65 µs
Read latency	50 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
Market segment	Server
Harmonized System (HS) code	84717070
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G147123
Temperature monitoring and logging	Yes
Power
Power consumption (write)	5 W
Power consumption (read)	1.3 W
Power consumption (idle)	0.9 W
Brand-specific features
Intel Smart Response Technology	No
Intel Rapid Start Technology	No
Intel High Endurance Technology (HET)	No
Intel Smart Response Technology version	0.00
Product family	Data center SSD
Product series	Intel DC S3500
Product codename	Wolfsville
Intel Rapid Start Technology version	0.00
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating temperature	70 °C
Operating / non-operating shock	1,000 G (Max) at 0.5 msec
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Processor lithography	20 nm
Intel High Endurance Technology (HET)	No
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Product colour	Silver
Power consumption (active)	5 W
SSD form factor	2.5"
Market segment	Server
Intel Smart Response Technology version	0.00
Intel Rapid Start Technology version	0.00
Status	Discontinued
SSD weight	2.54 oz (72 g)
SSD shock	1,000 G (Max) at 0.5 msec
SSD power consumption (idle)	0.9W
SSD power consumption (active)	5W
SSD hardware encryption	AES 256 bit
SSD endurance rating	450 TBW
Sequential writing speed	450 MB/s
Sequential reading	500 MB/s
Product brief URL	http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html
Launch date	Q2'13
Drive capacity	800 GB
Last change	63903513
Software
Windows operating systems supported	Yes
Weight & dimensions
Weight	2.54 oz (72 g)
Height	0.276" (7 mm)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Processor lithography	20 nm
Product colour	Silver
Internal	Yes
Power consumption (active)	5 W
Status	Discontinued
SSD weight	2.54 oz (72 g)
SSD shock	1,000 G (Max) at 0.5 msec
SSD power consumption (idle)	0.9W
SSD power consumption (active)	5W
SSD hardware encryption	AES 256 bit
SSD endurance rating	450 TBW
Sequential writing speed	450 MB/s
Sequential reading	500 MB/s
Product brief URL	http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-s3500-brief.html
Launch date	Q2'13
Drive capacity	800 GB
Last change	63903513
Product family	Data center SSD
Product series	Intel DC S3500
Product codename	Wolfsville
Intel Rapid Start Technology version	0.00
