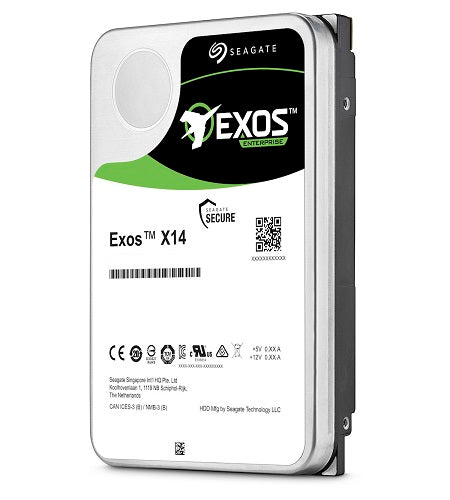

ST12000NM0038 - Seagate ENTERPRISE EXOS X14 12TB HARD

Seagate manufactures hard drives that specifically address theneeds of the hyperscale storage market. As the flagship of theSeagate X class, the Exos X14 and Exos X14z enterprise harddrives are the highest-capacity hard drives in the fleet. Scalable. Responsive. Innovative. For everything hyperscale, there's Exos X €” the most powerful way to access the datasphere and harness the full potential of the Cloud. Exos X12 and Exos X10 enterprise hard drives integrate the latest technology in support of a scalable, secure and reliable cloud data centre. Specifically designed to work in highly scalable environments requiring low power consumption and weight, Exos X series hard drives perform consistently while scaling to meet the stringent TCO requirements of most cloud-based data centres. Built-in Data Protection Seagate Secure Instant Secure Erase drives simplify drive repurposing and disposal, protect data-at-rest and help comply with corporate and federal data security mandates. Prevent unauthorised access and safeguard stored data with three levels of security, including Secure Downloads & Diagnostics (SD&D), TCG compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistant hard drive.



Specification:



Hard drive
Component for	Disk array
HDD sustained transfer rate	233 MiB/s
HDD average transfer rate	245 MB/s
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
Hot-swap	Yes
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	12000 GB
Features
Type	HDD
Component for	Disk array
HDD sustained transfer rate	233 MiB/s
HDD average transfer rate	245 MB/s
Interface	Serial ATA III
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
Hot-swap	Yes
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	12000 GB
Storage drive buffer size	256 MB
Rotational Vibration (RV) sensors	Yes
Power
Operating voltage	5 / 12 V
Power consumption (idle)	5 W
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Operating shock	50 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Technical details
Operating voltage	5 / 12 V
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Hot-swap	Yes
Master (outer) cases per pallet	40 pc(s)
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	23.6 oz (670 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Logistics data
Master (outer) cases per pallet	40 pc(s)
Other features
Operating voltage	5 / 12 V
Interface	Serial ATA III
Master (outer) cases per pallet	40 pc(s)
