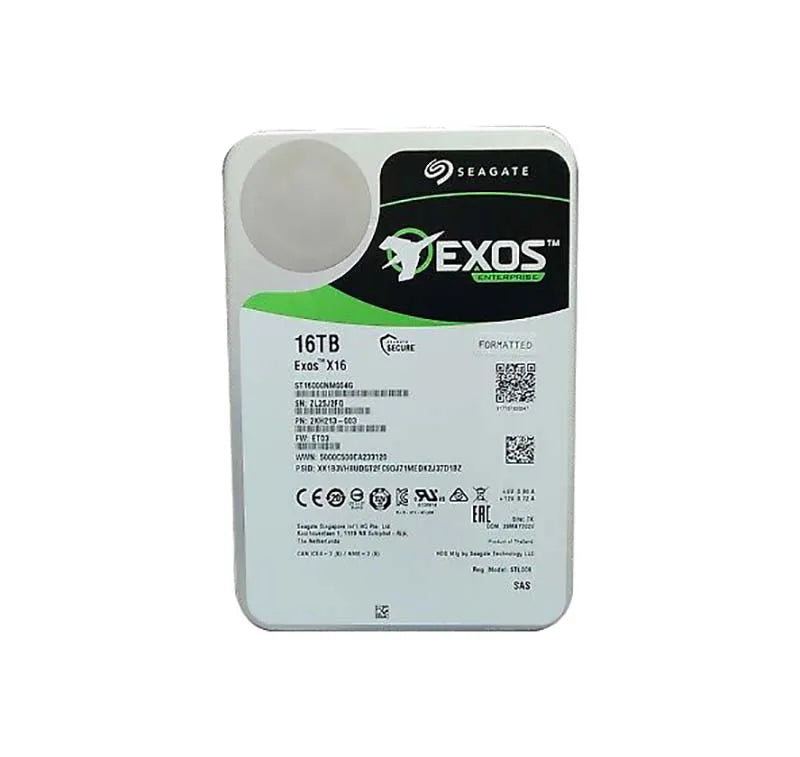

ST16000NM004G - Seagate 16TB EXOS X16 HDD 512E/4KN SAS

Seagate Exos Enterprise Hard Drives power the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rock-solid reliability and the best possible ROI for demanding 24x7 operations. Scalable. Responsive. Innovative For everything hyperscale, there€™s ExosTM X €” the most powerful way to access the datasphere and harness the full potential of the cloud. Exos X16, Exos X12, and Exos X10 enterprise hard drives integrate the latest technology in support of a scalable, secure, and reliable cloud data centre. Specifically designed to work in highly scalable environments requiring low power consumption and weight, the Exos X series hard drives perform consistently while scaling to meet the stringent TCO requirements of most cloud-based data centres. Best-Fit Applications - Hyperscale applications/cloud data centres - Massive scale-out data centres OLTP and HPC applications - High-capacity density RAID storage - Mainstream enterprise external storage arrays - Distributed file systems, including Hadoop and Ceph - Enterprise backup and restore €” D2D, virtual tape centralised surveillance Built-in Data Protection Seagate Secure Instant Secure Erase drives simplify drive repurposing and disposal, protect data-at-rest and help comply with corporate and federal data security mandates. Prevent unauthorised access and safeguard stored data with three levels of security, including Secure Downloads & Diagnostics (SD&D), TCG compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistant hard drive. Data Management Made Easy - Simplify infrastructure management with the FastFormat feature for advanced format (4Kn and 512e) - Unprecedented power savings during idle times with PowerChoice technology for TCO improvement - Use Instant Secure Erase for easy drive disposal and re-purposing if and when needed



Specification:



Hard drive
Component for	Disk array
HDD sustained transfer rate	249 MiB/s
HDD interface transfer rate	12 Gbit/s
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	16000 GB
Features
Type	HDD
Component for	Disk array
HDD sustained transfer rate	249 MiB/s
HDD interface transfer rate	12 Gbit/s
Interface	SAS
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	16000 GB
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
Power
Operating voltage	5 / 12 V
Power consumption (write)	6.2 W
Power consumption (read)	10.2 W
Power consumption (idle)	5 W
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Operating shock	50 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Technical details
Operating voltage	5 / 12 V
Quantity	20
Interface	SAS
Mean time between failures (MTBF)	2500000 h
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	23.6 oz (670 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Packaging data
Quantity	20
Packaging content
Quantity	20
Other features
Operating voltage	5 / 12 V
Interface	SAS
