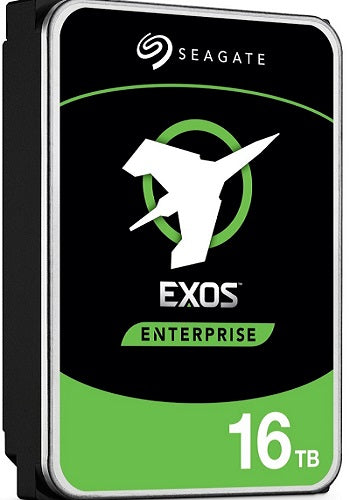

ST16000NM009G - Seagate 16TB 3.5 SAS 7200RPM SED FIPS TAA

Maximum Storage Capacity for Highest Rack Space Efficiency Industry's first 16 TB drive for 33% more petabytes per rack. Highest 16 TB hard drive performance with enhanced caching, making it perfect for cloud data centre and massive scale-out data centre applications. Hyperscale SATA model tuned for large data transfers and low latency. PowerBalance feature optimises Watts/TB. Helium sealed-drive design delivers lower total cost of ownership through lower power and weight. Next-generation helium side-sealing weld technology for added handling robustness and leak protection. Digital environmental sensors to monitor internal drive conditions for optimal operation and performance. Data protection and security: Seagate Secure features for safe, affordable, fast, and easy drive retirement.



Specification:



Hard drive
Component for	NAS
HDD sustained transfer rate	270 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	550 TB/year
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	16000 GB
Features
Type	HDD
Component for	NAS
HDD sustained transfer rate	270 MiB/s
HDD interface transfer rate	6 Gbit/s
Workload rate limit	550 TB/year
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	16000 GB
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
Noise level (idle)	20 dB
Power
Operating voltage	5 / 12 V
Power consumption (typical)	7.6 W
Power consumption (standby)	1 W
Power consumption (off)	1 W
Power consumption (idle)	5 W
Start-up current	2 A
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	50 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Technical details
Operating voltage	5 / 12 V
Mean time between failures (MTBF)	2500000 h
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	23.6 oz (670 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Other features
Operating voltage	5 / 12 V
