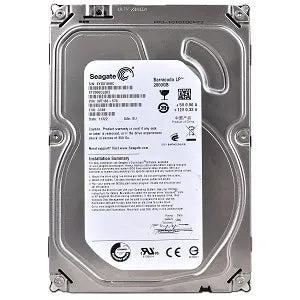

ST2000DL003 - Seagate 2TB SATA 6GB/S 5.9K RPM LFF

Best-Fit Applications - Direct Attached Storage devices€“USB/FireWire/eSATA; - Network Attached Storage devices and Windows storage servers; - Eco friendly PCs; - High-capacity desktop storage. Barracuda Green drives from Seagate save you time. Available now with SATA 6Gb/s interface and 64MB cache and combined with the industry's only 5900-RPM spin speed, you can be sure you're getting the best performance in the green-power drive category. Seagate SmartAlign technology simplifies your transition to the Advanced Format (AF), 4K standard. There is no need for time-consuming integration utilities required by similar AF drives. Key Features and Benefits - A unique 5900-RPM speed delivers the fastest-performance eco friendly drive available. - Seagate SmartAlign technology allows you to get all the benefits of the new Advanced Format 4K sector standard without any hassle€“no utilities, no extra steps. - The SATA 6Gb/s interface and 64MB cache maximize performance. - Low power consumption combined with leadership in the use of recycled materials means you don't have to sacrifice environmental stewardship for performance. - Cool, quiet operation.



Specification:



Hard drive
Component for	PC
HDD interface transfer rate	6 Gbit/s
Write seek time	9.5 ms
Read seek time	8.5 ms
Bytes per sector	512
HDD number of heads	6
Start/stop cycles	300000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	2000 GB
Features
Type	HDD
Component for	PC
HDD interface transfer rate	6 Gbit/s
Interface	Serial ATA III
Write seek time	9.5 ms
Read seek time	8.5 ms
Bytes per sector	512
HDD number of heads	6
Start/stop cycles	300000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	2000 GB
Storage drive buffer size	64 MB
HDD number of cylinders	3
Power
Operating voltage	5 / 12 V
Power consumption (typical)	8 W
Power consumption (standby)	0.75 W
Power consumption (idle)	5.4 W
Start-up current	2.5 A
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Sustainability certificates	RoHS
Operating voltage	5 / 12 V
Quantity	1
Interface	Serial ATA III
Master (outer) cases per pallet	8 pc(s)
Weight & dimensions
Width	4" (101.6 mm)
Weight	22.1 oz (626 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Packaging data
Storage drive adapter included	No
Quantity	1
Packaging content
Storage drive adapter included	No
Quantity	1
Logistics data
Master (outer) cases per pallet	8 pc(s)
Other features
Operating voltage	5 / 12 V
Interface	Serial ATA III
Master (outer) cases per pallet	8 pc(s)
