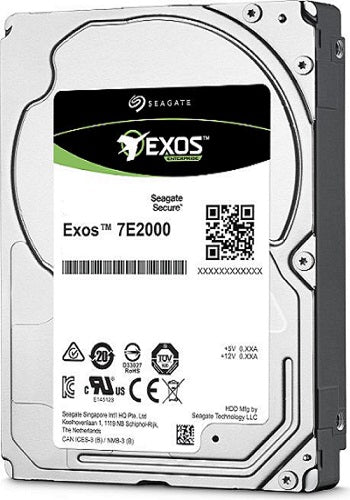

ST2000NX0263 - Seagate 2TB EXOS 7E2000 HDD 4KN SAS 2.5 7200 128MB

The Seagate Exos 7E2000 enterprise hard drives can store large amounts of data without using a ton of system space €” up to 2,000 GB in a compact 2.5-inch form factor. Exos 7E2000 provides the density, low power consumption and data integrity needed in traditional data centres and the cloud. Trusted Bulk Data Storage in a Small Data Centre Footprint Exos 7E2000 drives optimise your data centre footprint in a proven 2.5-inch form factor for infrastructures requiring highly reliable access to bulk data. Conventional magnetic recording (CMR) technology helps Exos 7E2000 catalyse the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rock-solid reliability and ironclad security for demanding 24—7 operations. A 2M-hr. MTBF rating with supported workloads of 550 TB/year, dense data storage and low power consumption help you meet your storage SLAs while lowering TCO. Significant Hard Drive Power Savings Exos 7E2000 drives ensure data confidence with a reliable, low-power platform for efficient bulk storage operations, even in harsh data centre environments. Exos 7E2000 helps reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, lowpower consumption drive. Included PowerChoice technology empowers IT organisations to tailor systems for optimal performance and power consumption, resulting in power savings of up to 35% over traditional 3.5-inch drives, and potentially operating as low as 1.1 watts when idle. Enhanced Enterprise Reliability, Data Protection and Security Exos 7E2000 security features help protect data where it lives €” on the drive. Exos 7E2000 drives help prevent unauthorised access and safeguard stored data with security levels that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS tamper-resistant hard drive. Seagate Secure drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.



Specification:



Hard drive
Data transfer rate	6 Gbit/s
Component for	Server/workstation
HDD interface transfer rate	12 Gbit/s
Average latency	4.16 ms
Bytes per sector	512
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	2.5"
HDD capacity	2048 GB
Features
Type	HDD
Component for	Server/workstation
HDD interface transfer rate	12 Gbit/s
Interface	SAS
Average latency	4.16 ms
Bytes per sector	512
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	2.5"
HDD capacity	2048 GB
Storage drive buffer size	128 MB
Power
Operating voltage	5 V
Power consumption (typical)	6.02 W
Power consumption (standby)	1.52 W
Power consumption (idle)	3.53 W
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Operating vibration	0.5 G
Operating shock	25 G
Non-operating vibration	3 G
Non-operating shock	400 G
Technical details
Harmonized System (HS) code	84717050
Operating voltage	5 V
Quantity	1
Interface	SAS
Mean time between failures (MTBF)	1400000 h
Internal	Yes
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	6.98 oz (198 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
Packaging data
Quantity	1
Packaging content
Quantity	1
Other features
Operating voltage	5 V
Interface	SAS
Internal	Yes
Data transfer rate	6 Gbit/s
