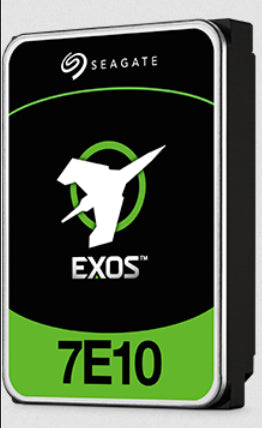

ST4000NM026B - Seagate EXOS 7E10 4TB 512E/4KN SED SATA 3.5INCH

Purpose-built for enterprise applications and workloads Trusted. Efficient. Versatile For everything Enterprise storage, there's Exos E — the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads. Exos 7E10 Specifically designed to address the needs of storing unstructured data cost-effectively.



Specification:



Hard drive
Component for	Disk array
HDD interface transfer rate	12 Gbit/s
Average latency	4.16 ms
Mean time between failures (MTBF)	2000000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	4000 GB
Features
Type	HDD
Component for	Disk array
HDD interface transfer rate	12 Gbit/s
Interface	SAS
Average latency	4.16 ms
Mean time between failures (MTBF)	2000000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	4000 GB
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
24/7 operation	Yes
Power
Operating voltage	5 / 12 V
Power consumption (typical)	10.3 W
Power consumption (idle)	5.9 W
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Operating shock	70 G
Non-operating vibration	5 G
Non-operating shock	300 G
Technical details
Harmonized System (HS) code	84717050
Operating voltage	5 / 12 V
Interface	SAS
Mean time between failures (MTBF)	2000000 h
Weight & dimensions
Width	4.01" (101.8 mm)
Weight	21.9 oz (620 g)
Height	1.03" (26.1 mm)
Depth	5.79" (147 mm)
Other features
Operating voltage	5 / 12 V
Interface	SAS
