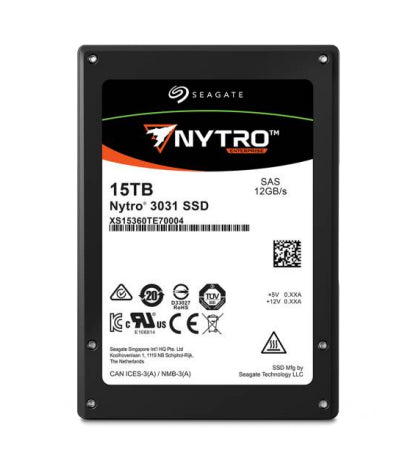

XS15360TE70014 - Seagate 15360GB NYTRO 3131 SSD

Enhanced Reliability, Data Protection, and Security Seagate has decades of enterprise SAS expertise in mission-critical applications. The Nytro 3031 SSD Series helps deliver exceptional data protection and reliability with full internal and external data path protection (T10 DIF), advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. Advanced power-loss data protection helps maintain data integrity in the event of unexpected power interruptions. Advanced security levels to prevent unauthorised access to an SSD and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant self-encrypting drive and government-grade FIPS/Common Criteria tamper-resistant drive. Consistent Performance up to 2,200 MB/s The Nytro 3031 SSD Series delivers ultra-fast, consistent, and easily scalable performance that saturates dual 12 Gb/s SAS bandwidth, providing an effective 24 Gb/s interface with dual-port dynamic configurations. By removing the storage bottleneck, overall system and application responsiveness is significantly improved. High-Capacity Solution With Multiple Endurance Offerings Enterprise applications have different storage workload requirements. Databases or virtualisation with a typically mixed read/write workload require the highest random read/write IOPS, ultra-low latency, and high endurance. Content streaming applications demand high sequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro 3031 SSD Series offers a range of capacities up to 15 TB in a 2.5-inch form factor to increase enterprise storage density in data centres. It also enables lower TCO by offering endurance categories to match cost and performance requirements of all enterprise workloads.



Specification:



Hard drive
SSD capacity	1600 GB
Memory type	3D eTLC
Data transmission
Read speed	2200 MB/s
Write speed	1550 MB/s
Random write (4KB)	120000 IOPS
Random read (4KB)	230000 IOPS
Data transfer rate	12 Gbit/s
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Performance
Interface	SAS
Component for	Server/workstation
NVMe	No
TBW rating	8700
SSD capacity	1600 GB
Read speed	2200 MB/s
Write speed	1550 MB/s
Memory type	3D eTLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	120000 IOPS
Random read (4KB)	230000 IOPS
Hardware encryption	No
Data transfer rate	12 Gbit/s
Self-Encrypting Drive (SED)	Yes
Design
Component for	Server/workstation
SSD form factor	2.5"
Features
Interface	SAS
Component for	Server/workstation
NVMe	No
TBW rating	8700
SSD capacity	1600 GB
Read speed	2200 MB/s
Write speed	1550 MB/s
Memory type	3D eTLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	120000 IOPS
Random read (4KB)	230000 IOPS
Hardware encryption	No
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Self-Encrypting Drive (SED)	Yes
Power
Current	0.8 A
Power consumption (idle)	4.4 W
Technical details
Interface	SAS
Hardware encryption	No
SSD form factor	2.5"
SSD endurance rating	3 DWPD
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	5.82 oz (165 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD endurance rating	3 DWPD
