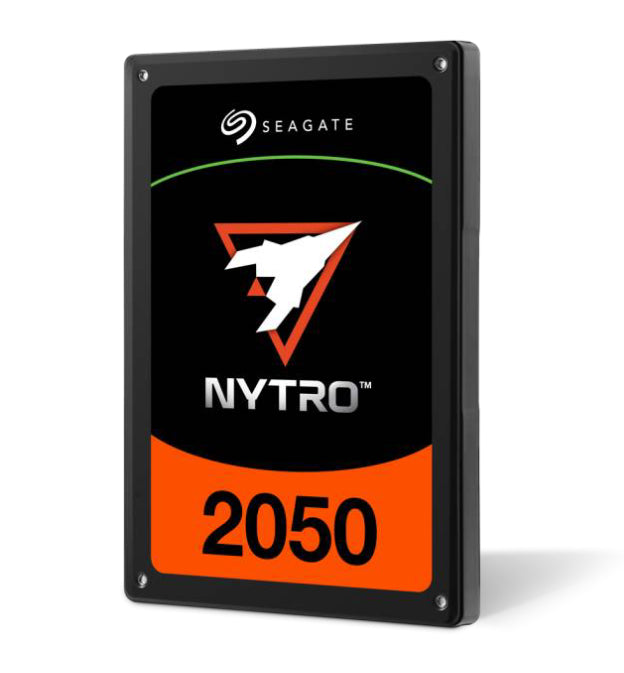

XS7680SE70095 - Seagate 7680 SAS ENTERPRISE SSD

The Seagate Nytro 2050 SAS SSD is the superior SATA alternative, delivering up to 7 TB in 2.5-in x 15 mm form factor. Harness a 12 Gb/s interface with dual ports for speeds up to 1,050 MB/s, choose from three endurance options including up to 3 DWPD, and rely on drive monitoring and government-grade encryption. It’s all here — fast, consistent, scalable, and secure performance for the most demanding enterprise workloads.



Specification:



Hard drive
SSD capacity	7680 GB
Memory type	3D eTLC
Data transmission
Read speed	2000 MB/s
Write speed	1650 MB/s
Random write (4KB)	80000 IOPS
Random read (4KB)	240000 IOPS
Data transfer rate	12 Gbit/s
Performance
Interface	SAS
Component for	Server/workstation
NVMe	No
TBW rating	14000
SSD capacity	7680 GB
Read speed	2000 MB/s
Write speed	1650 MB/s
Memory type	3D eTLC
Random write (4KB)	80000 IOPS
Random read (4KB)	240000 IOPS
Hardware encryption	Yes
Data transfer rate	12 Gbit/s
Design
Component for	Server/workstation
SSD form factor	2.5"
Features
Interface	SAS
Component for	Server/workstation
NVMe	No
TBW rating	14000
SSD capacity	7680 GB
Read speed	2000 MB/s
Write speed	1650 MB/s
Memory type	3D eTLC
Random write (4KB)	80000 IOPS
Random read (4KB)	240000 IOPS
Hardware encryption	Yes
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Current	0.21 A
Power consumption (idle)	4.6 W
Technical details
Interface	SAS
Hardware encryption	Yes
SSD form factor	2.5"
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	5.82 oz (165 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
