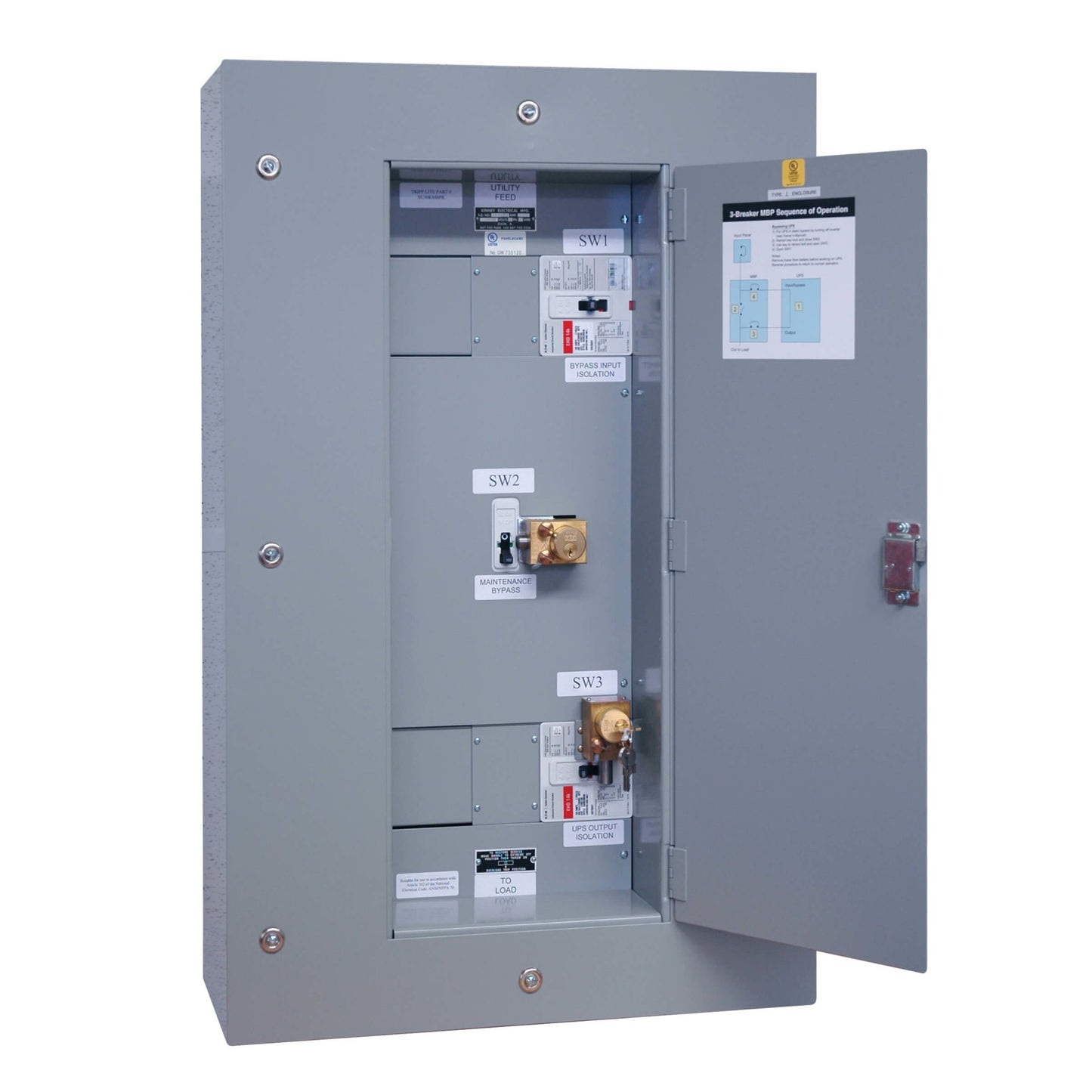

SU60KMBPK - Tripp Lite WALL MOUNT KIRK KEY BYPASS PANEL 240V FOR 60KVA 3-PHASE UPS

Wallmount 3 breaker manual bypass panel with Kirk Key interlock system isolates the UPS from connected loads for maintenance with no loss of network availability. 225A breaker with KAIC rating of 65. Key included. Compatible with Tripp Lite SU60K - Wallmount manual bypass panel isolates UPS from connected loads for maintenance with no loss of network availability - Includes Kirk-Key interlock system enhances system reliability - 3 built-in circuit breakers, heavy duty buswork - Compatible with select Tripp Lite 3 phase UPS systems



Specification:



Technical details
Compatible products	Tripp Lite SU60KX, SU60KTV
Weight & dimensions
Width	30.1" (765 mm)
Weight	220 lbs (99.8 kg)
Height	42.4" (1075.9 mm)
Depth	11.7" (298.4 mm)
Colour
Product colour	Gray
Packaging data
Package width	30.9" (784.1 mm)
Package depth	12.5" (317.5 mm)
Package height	43.2" (1097.3 mm)
Package weight	225.1 lbs (102.1 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	30.9" (784.1 mm)
Master (outer) case gross weight	225.1 lbs (102.1 kg)
Master (outer) case length	12.5" (317.5 mm)
Master (outer) case height	43.2" (1097.3 mm)
Country of origin	United States
