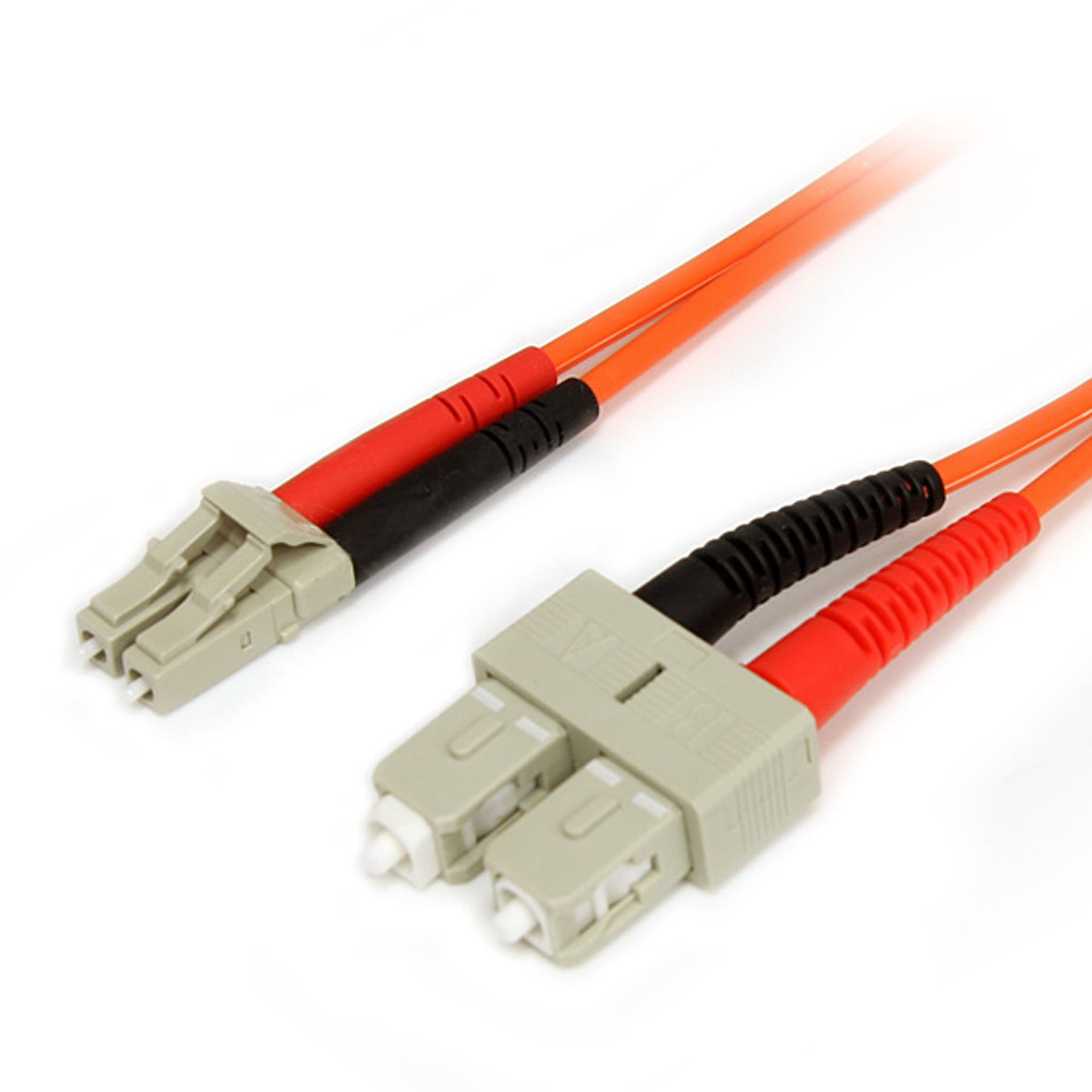

FIBLCSC2 - StarTech.com 2M MULTIMODE FIBER PATCH CABLE LC - SC

Connect fiber network devices for high-speed transfers with LSZH rated cableThe FIBLCSC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.The StarTech.com Advantage



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	SC
Cable length	118.1" (3 m)
Full duplex	Yes
Core diameter	62.5 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS, CE
Features
Fibre optic type	OM1
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	SC
Cable length	118.1" (3 m)
Full duplex	Yes
Core diameter	62.5 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Data transfer rate	10 Gbit/s
Harmonized System (HS) code	85447000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	10 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Cable length	118.1" (3 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	1.02" (26 mm)
Weight	1.9 oz (54 g)
Package weight	2.22 oz (63 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	1.02" (26 mm)
Package weight	2.22 oz (63 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	15.9" (403 mm)
Master (outer) case length	16.1" (410 mm)
Master (outer) case height	15.7" (400 mm)
Products per master (outer) case	200 pc(s)
Quantity per pack	1 pc(s)
