MPO8LCPL10M - StarTech.com FAN OUT 8 FIBERS FROM A 40GBPS MPO CONNECTION TO FOUR 10GBPS LC CONNECTIONS - 10

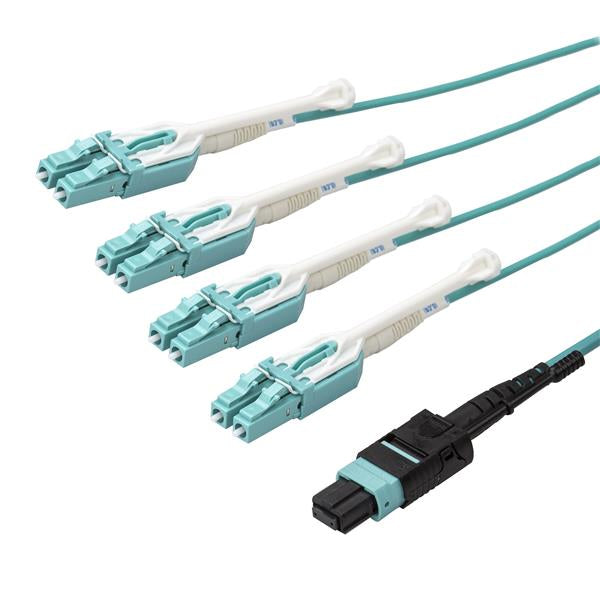

Fan out eight fibers from a 40Gbps MPO connection to four 10Gbps LC connectionsThis MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.The StarTech.com Advantage



Specification:



Technical details
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	8x LC
Cable length	39.4" (1 m)
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Features
Fibre optic type	OM3
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	8x LC
Cable length	39.4" (1 m)
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	40 Gbit/s
Harmonized System (HS) code	85447000
Product colour	Aqua color
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	40 Gbit/s
Weight & dimensions
Cable length	39.4" (1 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.394" (10 mm)
Weight	0.303 oz (8.6 g)
Package weight	1.48 oz (42 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.394" (10 mm)
Package weight	1.48 oz (42 g)
Logistics data
Master (outer) case width	9.25" (235 mm)
Master (outer) case length	15.2" (385 mm)
Master (outer) case height	7.68" (195 mm)
Products per master (outer) case	80 pc(s)
