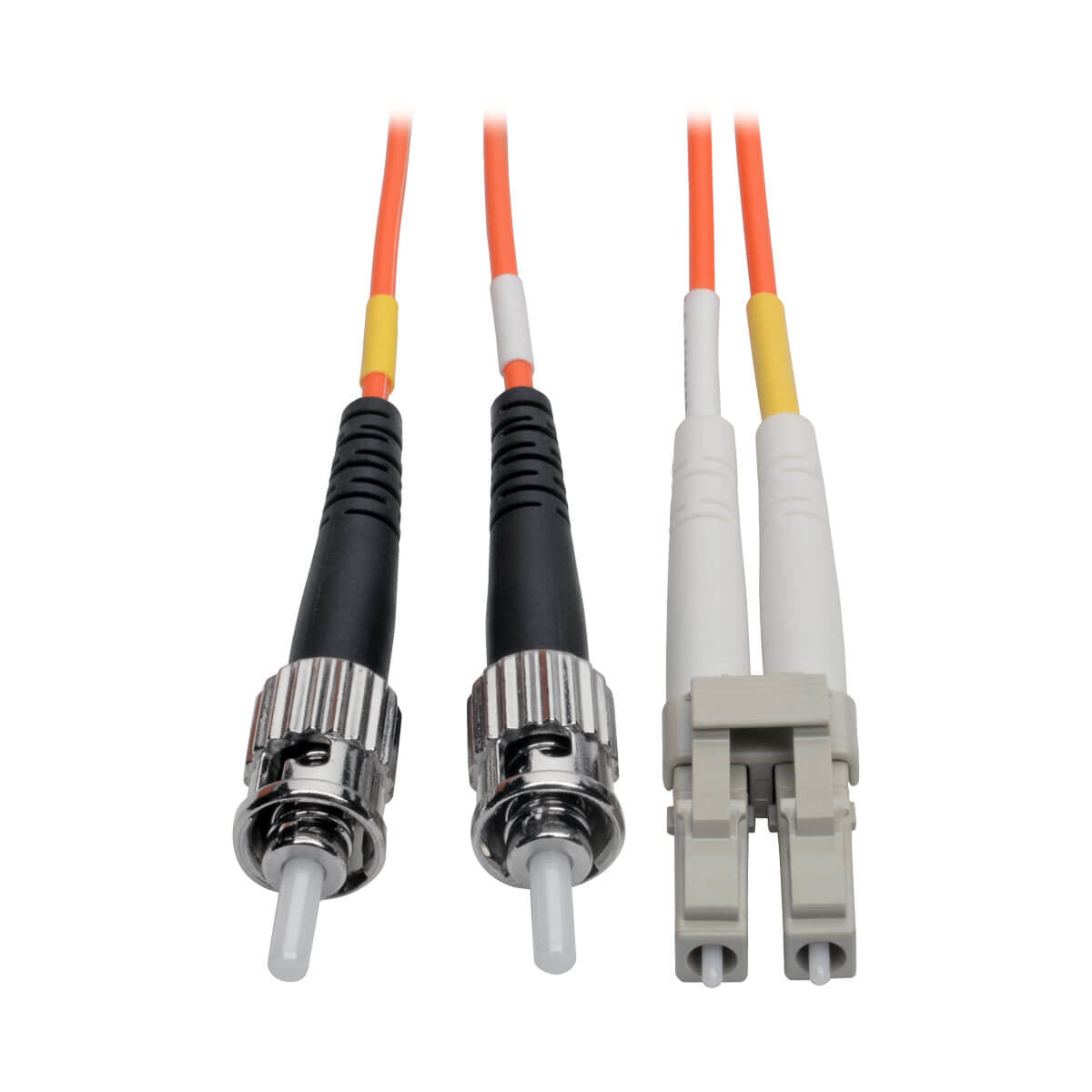

N318-09M - Tripp Lite 9M DUPLEX MULTIMODE 62.5/125 FIBER OPTIC PATCH CABLE LC/ST 30FT 9 METER

Tripp Lite's 9-meter multimode duplex fiber optic ST/LC patch cable is manufactured from 62.5/125 zipcord fiber. The cable has LC to ST connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications. Manufactured from 62.5/125 duplex (zipcord) fiber PVC jacket Length: 9-meters/Connectors: 2 ST/LC connectors on each end Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze Fiber made from glass (not a polymer) Fiber optic distributed data interface (FDDI) rated OFNR (riser rated)



Specification:



Technical details
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	ST
Cable type	OFNR
Cable length	393.7" (10 m)
Full duplex	Yes
Core diameter	62.5 µm
Cladding diameter	125 µm
Insertion loss	0.2 dB
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332122626
Features
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	ST
Cable type	OFNR
Cable length	393.7" (10 m)
Full duplex	Yes
Core diameter	62.5 µm
Cladding diameter	125 µm
Insertion loss	0.2 dB
Data transfer rate	1 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	1 Gbit/s
Weight & dimensions
Cable length	393.7" (10 m)
Package width	7" (177.8 mm)
Package depth	0.748" (19 mm)
Package height	9" (228.6 mm)
Package weight	2.12 oz (60 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.748" (19 mm)
Package height	9" (228.6 mm)
Package weight	2.12 oz (60 g)
Logistics data
Master (outer) case width	8" (203.2 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	21.2 oz (600 g)
Products per master (outer) case	10 pc(s)
