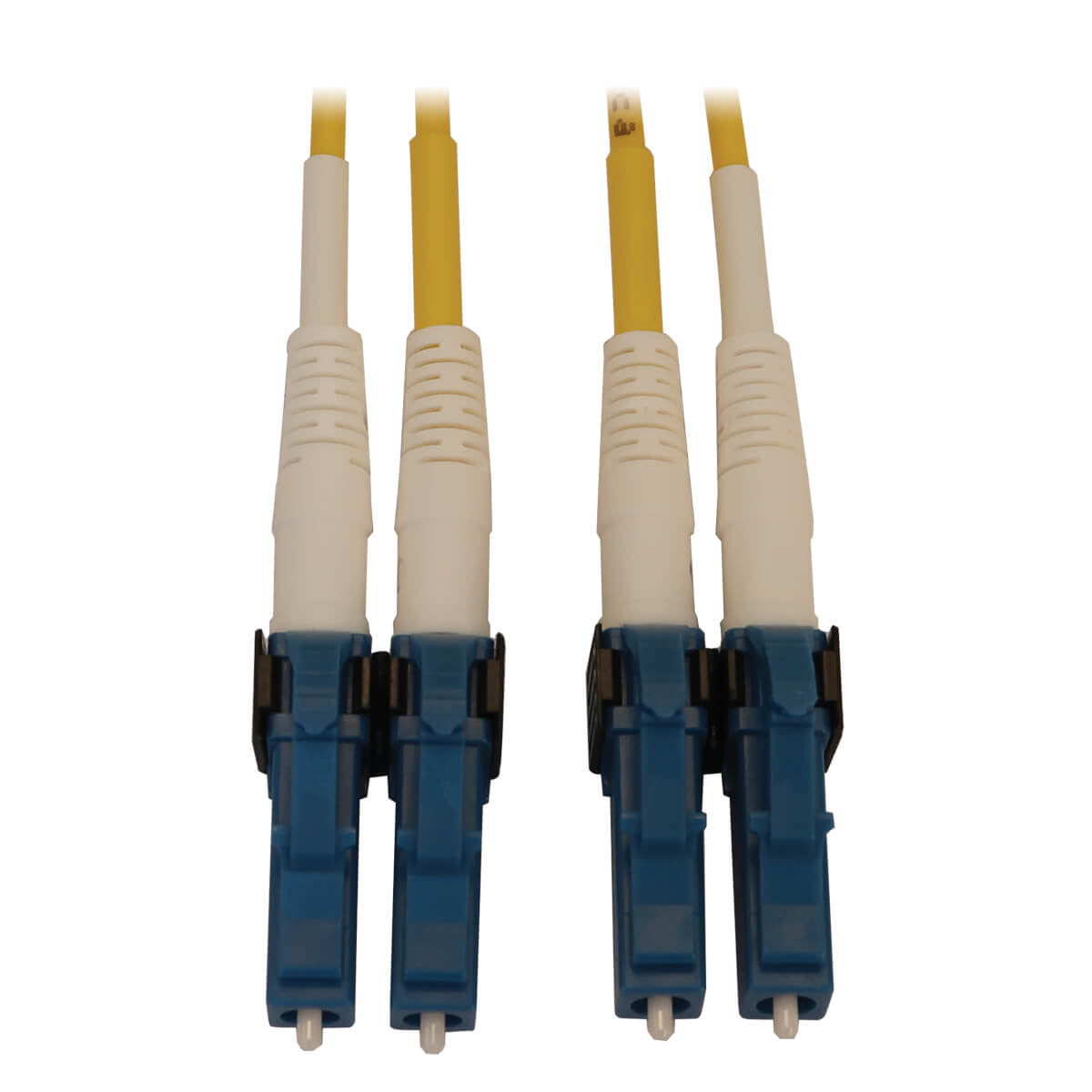

N370X-02M - Tripp Lite FIBER CABLE 400G DUPLEX SMF LC/UPC MM 2M

40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking The N370X-02M is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb. Switchable Connectors Allow Easy Polarity Conversions The switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors. Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable type	OFNR
Cable length	118.1" (3 m)
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS, UL ECOLOGO
Master (outer) case GTIN (EAN/UPC)	10037332271799
Features
Bending radius	0.787" (2 cm)
Fibre optic type	OS2
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable type	OFNR
Cable length	118.1" (3 m)
Core diameter	9 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Insertion loss	0.3 dB
Data transfer rate	400 Gbit/s
Country of origin	China
Ethernet interface type	10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet
Harmonized System (HS) code	8544.70.0000
Product colour	Blue, Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Connector polish type	UPC
Data transmission
Data transfer rate	400 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	0.787" (2 cm)
Cable length	118.1" (3 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.06 oz (30 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.06 oz (30 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	7.3" (185.4 mm)
Master (outer) case length	5.9" (149.9 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	14.5 oz (410 g)
Products per master (outer) case	10 pc(s)
Quantity per pack	1 pc(s)
